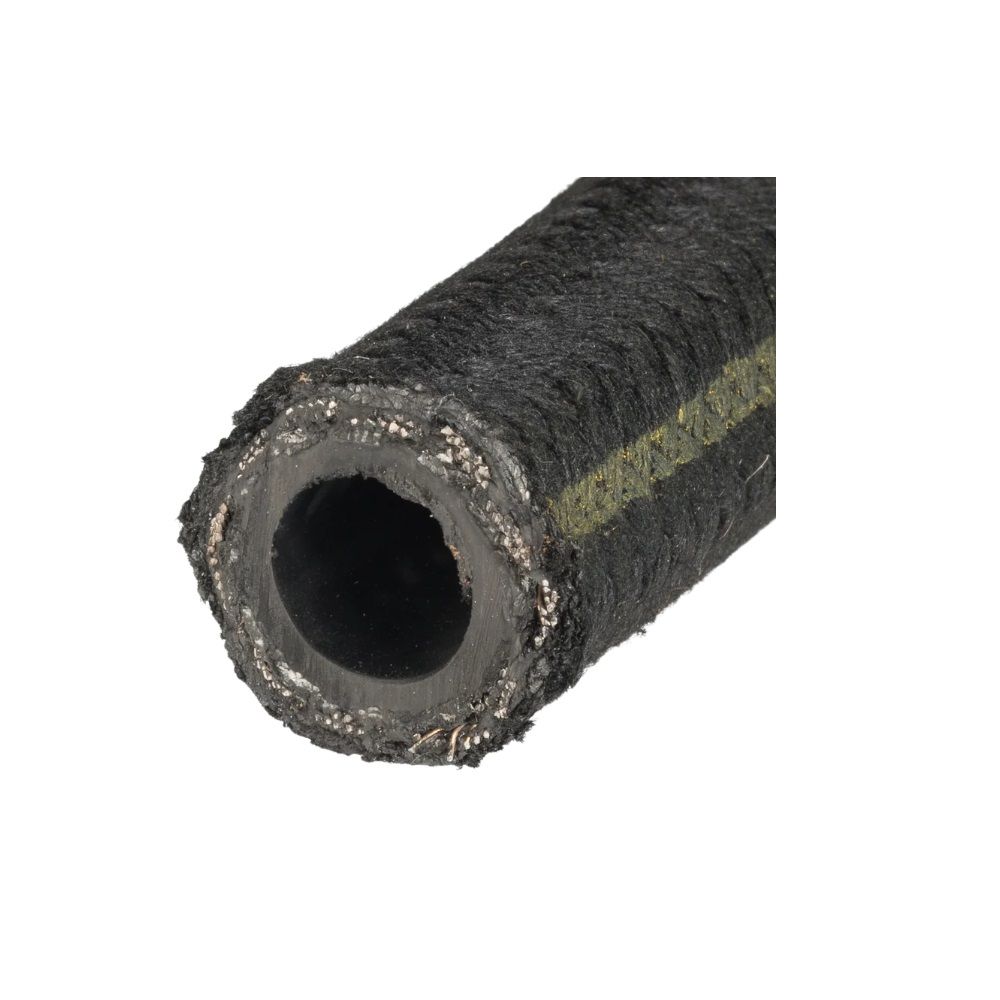

The hose is protected by a synthetic oil-resistant braided outer cover and is compatible with Aeroquip 491-series hose fittings. With an operating temperature range of -65°F to +250°F (-54°C to +121°C) and a maximum working pressure of 3,000 psi, the 303-3 hose is ideal for medium-pressure aircraft fluid transfer applications.

Features:

Part Number: 303-3
Specification: MIL-H-8794-3 (superseded by MIL-DTL-8794)
Medium-pressure aircraft hose
Suitable for hydraulic, pneumatic, fuel, oil, and coolant systems
Seamless synthetic rubber inner tube
Single-wire braid reinforcement with cotton braid
Oil-resistant braided outer cover
Compatible with Aeroquip 491-series hose fittings
1/8 in. inside diameter (-3 size)
Maximum working pressure: 3,000 psi
Operating temperature: -65°F to +250°F (-54°C to +121°C)

Designed for reliable fluid conveyance in aviation applications, the Aeroquip 303-3 hose provides long service life, excellent flexibility, and dependable performance while meeting stringent aerospace standards.
