Amphenol Socapex double flange receptacles, derived from MIL-DTL-38999 Series III, prevent stress on contact terminations and ensure grounding continuity between the PCB and box. They allow secure PCB mounting on the connector shell without risk of breaking contacts or micro-cuts and offer high vibration resistance in harsh environments. Available in various materials and platings, including RoHS & REACH compliant versions, these receptacles mate with standard TV / 38999 Series III plugs and are ideal for battlefield communication C5ISR, military ground Vehicles, military avionics, commercial air, navy, and space applications.

Add F459 (stand-off) or F059 (reduced flange) to your standard part number for easy part numbering.

Contacts & terminations:

Over 80 contact arrangements
Contact sizes from 23 HD to 8
Options for Signal, Power, and High-speed (Coax, Twinax, Quadrax, Octomax)
PC-Tails available in gold & tinned versions

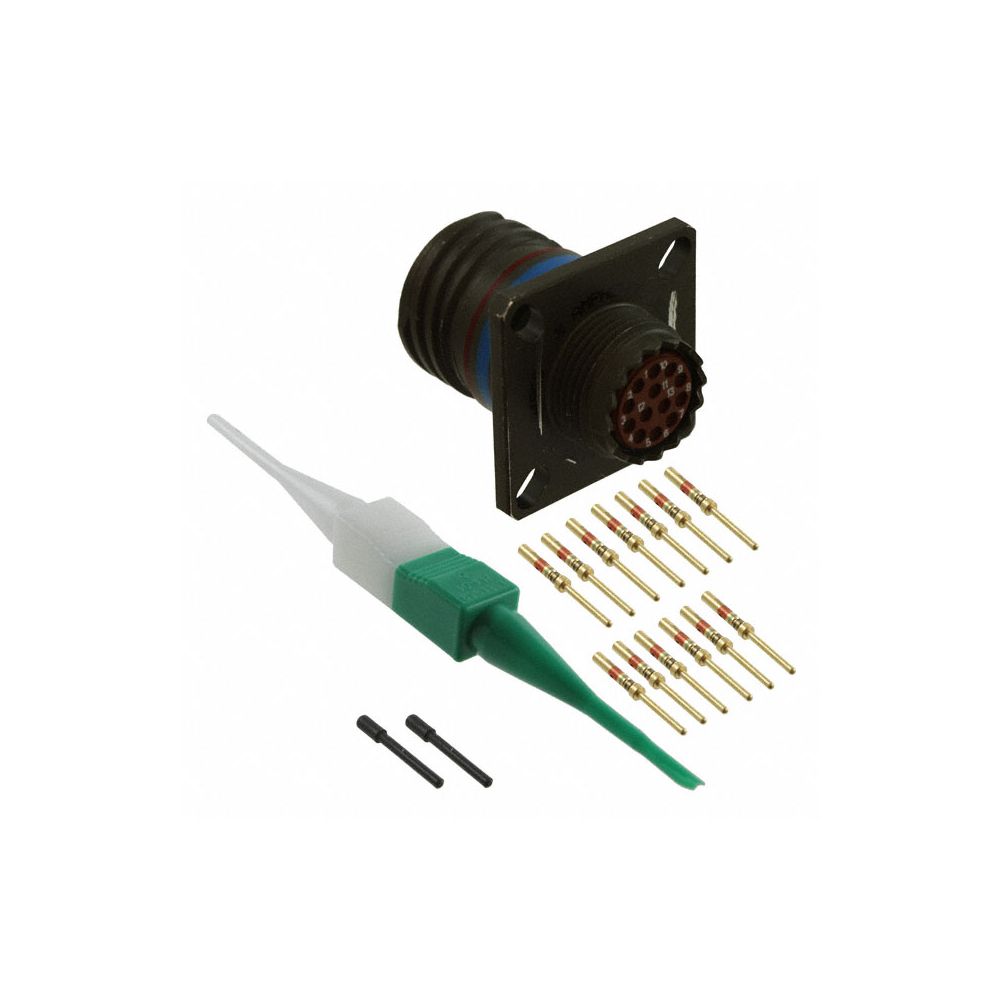

PRODUCT INFORMATION
Specification:    MIL-DTL-38999
Sealing:    IP66
Shielding:    Yes
Connector Type:    Circular
Connector Style:    Receptacle
Mounting Type:    Wall Mount
Contacts, # of:    13
Contact Style:    Pin
Termination Method:    Crimp
Crimp Wire Gauge:    28, 26, 24, 22
Insert Arrangement:    B35
Contact Size:    13#22D
Contacts Supplied:    Yes
Contact Material:    Copper Alloy
Contact Plating:    50 microinches Gold Plate
Shell Material:    Aluminum Alloy
Shell Plating:    Olive Drab Cadmium
Shell Color:    Olive Drab
Insert Material:    Hard Dielectric
Grommet & Seals Material:    Silicone
Amperage Rating:    5A
Operating Voltage AC V RMS Max:    1300
Operating Temperature °F (°C):    -85 to +347 (-65 to +175)
Contact Mating Life:    500
Insert Rotation/Keying:    A
Service Rating:    M
Export Class:    EAR / EAR99
RoHS:    No
Weight (lbs):    0.03468
Weight (g):    15.73962
