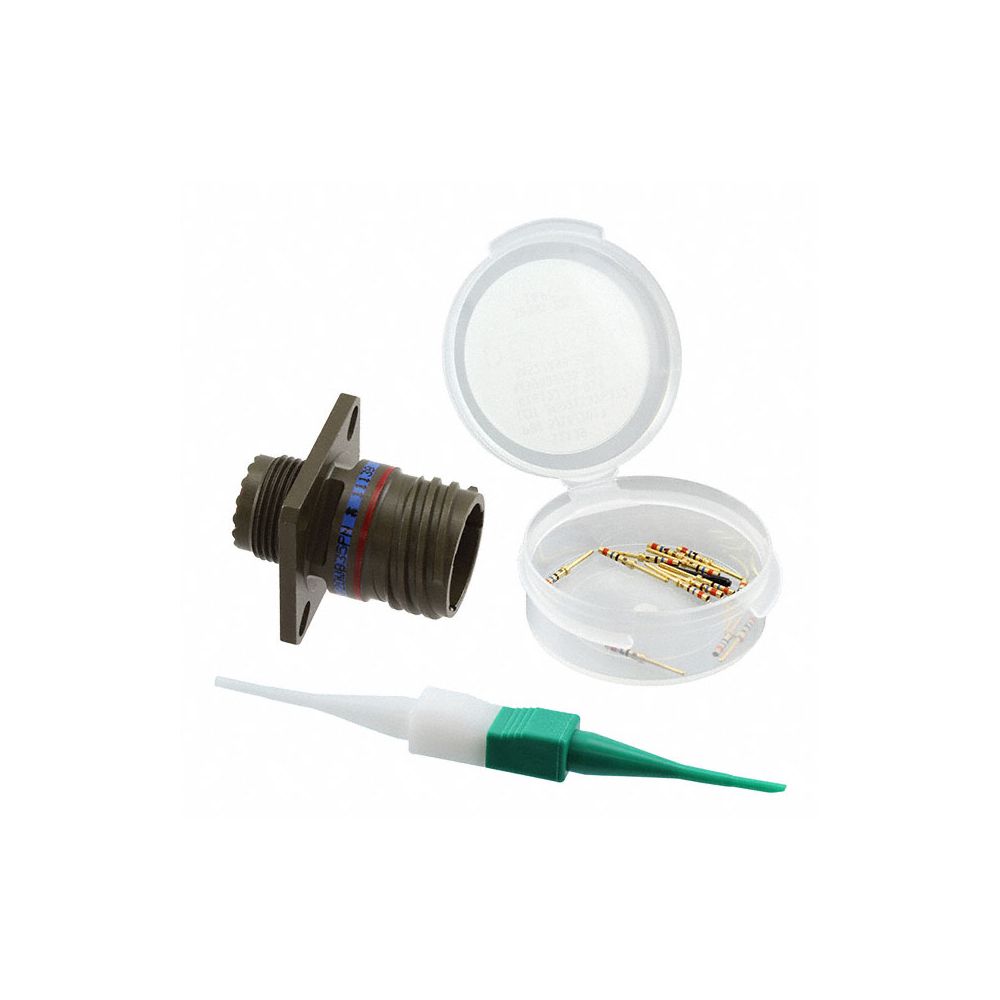

Amphenol‘s TV-CTV Tri-Start MIL-DTL-38999 Series III connectors have high-density contact arrangements in a miniature circular shell. Originally designed for the high-performance requirements of military and commercial aircraft, these circular connectors are perfect for applications requiring extremely reliable interconnections. Amphenol TV-CTV connectors are quick-mating and environmentally-sealed.

PRODUCT INFORMATION
Specification:    MIL-DTL-38999
Sealing:    IP67
Shielding:    Yes
Connector Type:    Circular
Connector Style:    Receptacle
Mounting Type:    Wall - Rear Mount - Thru Holes
Contacts, # of:    13
Contact Style:    Pin
Termination Method:    Crimp
Crimp Wire Gauge:    28, 26, 24, 22
Insert Arrangement:    11-13
Contact Size:    13#22D
Contacts Supplied:    No
Contact Material:    Copper Alloy
Contact Plating:    50 microinches Gold Plate
Shell Material:    Aluminum Alloy
Shell Plating:    Olive Drab Cadmium
Shell Color:    Olive Drab
Insert Material:    Hard Dielectric
Grommet & Seals Material:    Silicone
Amperage Rating:    5A
Operating Voltage AC V RMS Max:    1000
Operating Temperature °F (°C):    -85 to +347 (-65 to +175)
Contact Mating Life:    500
Insert Rotation/Keying:    Normal
Operating Voltage DC:    1000
Service Rating:    M
Export Class:    EAR / EAR99
RoHS:    No
Weight (lbs):    Unknown
Weight (g):    Unknown
