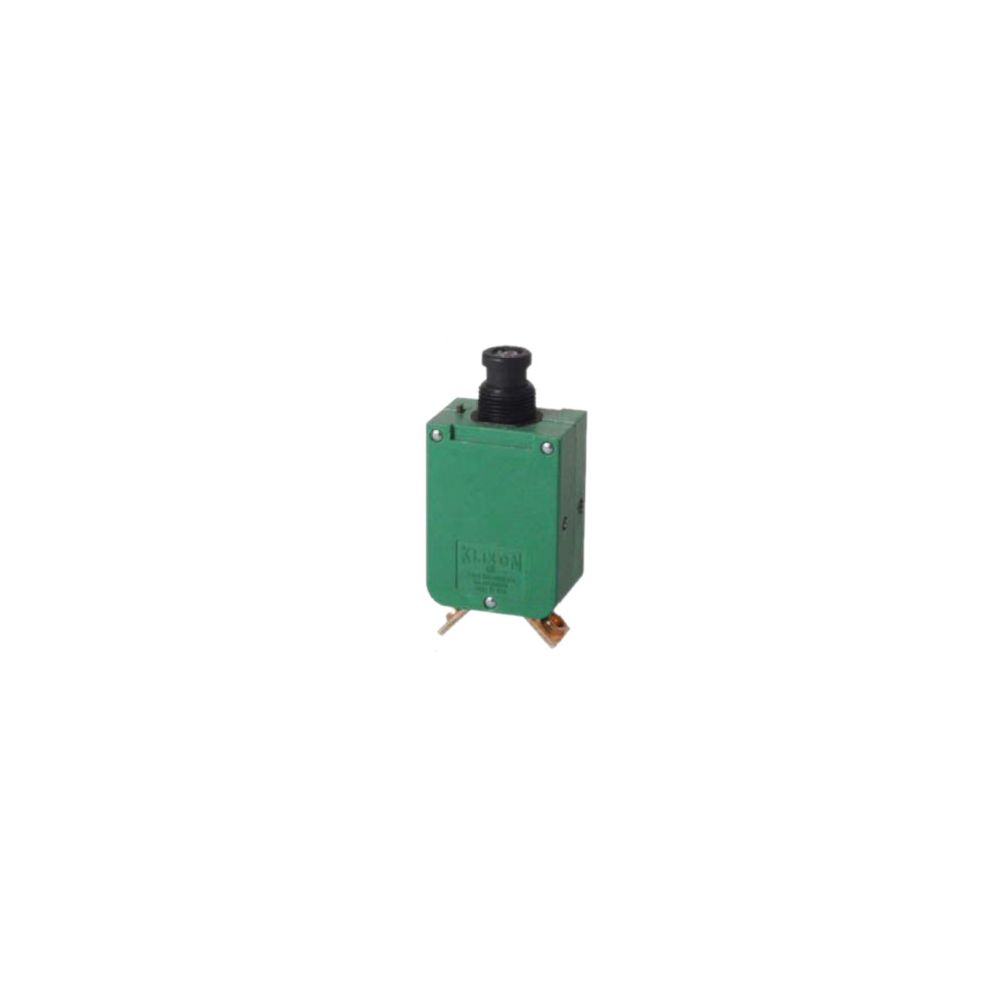

Klixon single–phase TC devices are the smallest, lightest, high performance aircraft circuit breakers available today. They represent the state-of-the-art protection of today’s aerospace power systems. Their light weight and small size make them especially well suited for aircraft, avionics and electronic systems.

The Klixon trademark has set the standard for aerospace circuit breakers. For a small, light weight configuration, the TC series offers the endurance and reliability required by exacting military specifications, and are available in standard current ratings from 15 through 35 amperes. The 3TC is available in 15 to 35 amps.

The 3TC single–phase and three–phase breaker ratings are coordinated so that in the event of a fault of up to 6,000 amps let–through current any rating will trip before another circuit breaker twice its rating. This results in improved overall equipment performance since only the smallest faulted circuit is interrupted, while larger circuits remain operational.

Characteristics
Vibration: 10G minimum, 50–500 Hz (other vibration levels available)
Mechanical Shock: 50G
Acceleration: 10G
Weight: 36 gram maximum (3TC14)
Interrupt Curren:
15–35 amps: 6,000 amps at 28 VDC
15–35: 2,000 amps at 120 VAC, 400 Hz
25 amps: 1,800 amps at 120 VAC, 400 Hz

Endurance
2,500 cycles: 120 VAC, 400 Hz inductive
5,000 cycles: 120 VAC, 400 Hz resistive
2,500 cycles: 30 VDC inductive
5,000 cycles: 30 VDC resistive
10,000 cycles: Mechanical, no load
