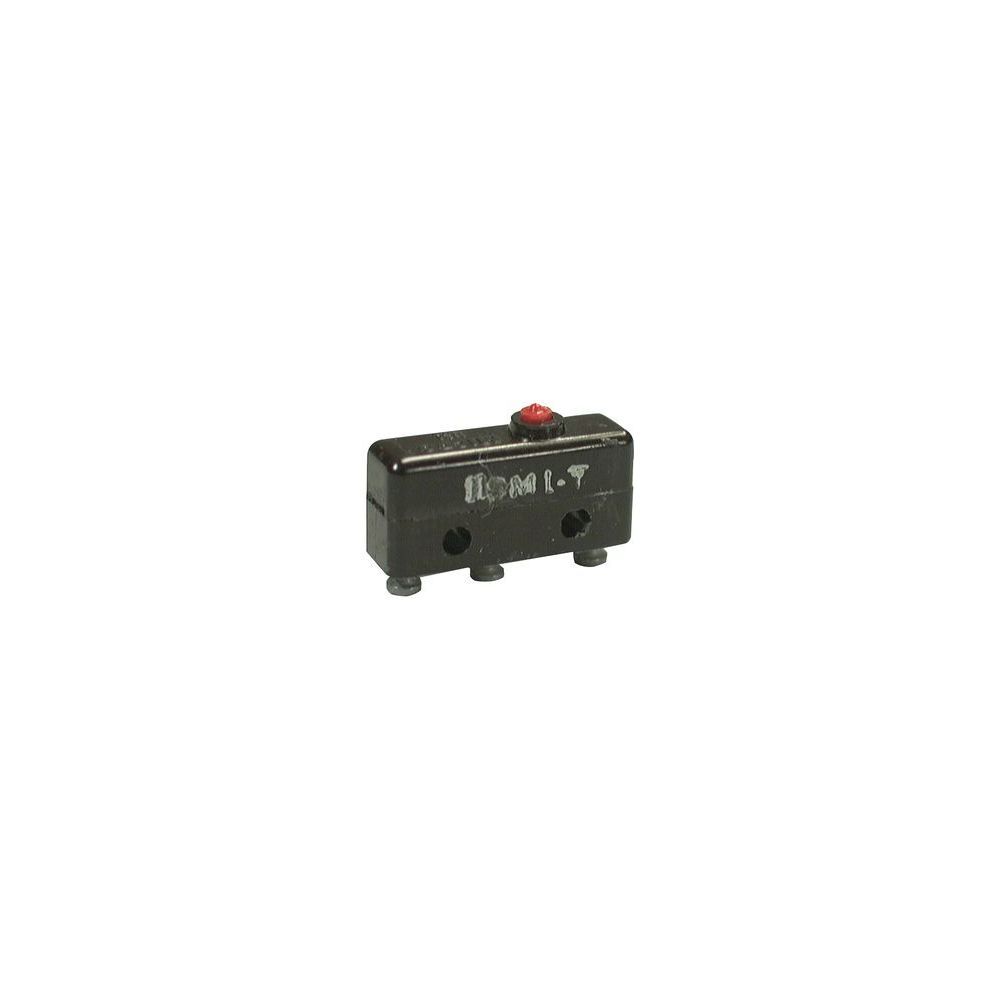

Microswitch - 11SM3-T

Description
MICRO SWITCH™ SM Series subminiature basic switches are used for simple or precision on/off application needs. The MICRO SWITCH™ SM Series switches are slightly larger than the MICRO SWITCH™ SX Series switches. These switches combine small size and light weight with ample electrical capacity, precision operation and long life.

Features:
Long operating life
Elongated mounting hole for easier, more accurate mounting
Choice of actuation (plunger, as well as a variety of integral and auxiliary actuators)
Choice of electrical termination (solder, quick connect, PCB)
Choice of operating characteristics (sensitive differential travel as low as 0,0254 mm [0.001 in] maximum, low operating force to 0,56 N [2.0 oz] maximum)
Optional series constructions available (gold contacts for low energy switching, bifurcated gold contacts for maximum reliability, power load switching capability to 11 A)
MIL-PRF-8805 qualified listings available

Product Specifications
Switch Type: MICRO SWITCH™ Subminiature 12,7 mm H x 6,35 mm W x 20,3 mm L [0.5 in H x 0.25 in W x 0.8 in L]
Sealed: No
Ampere Rating: 5 A
Circuitry: SPDT
Actuator: Pin Plunger
Termination: Solder
Operating Temperature: -55 °C to 125 °C [-67 °F to 257 °F]
Voltage: 250 Vac
Contact Type: Silver
Operating Force (OF): 0,83 N to 1,39 N [3.0 oz to 5.0 oz]
Release Force: 0,28 N [1.0 oz] min.
Pretravel (PT): 0,5 mm [0.020 in] max.
Overtravel (OT): 0,13 mm [0.005 in] min.
Differential Travel (DT): 0,10 mm [0.004 in] max.
Operating Position (OP): 8,38 mm ±0,38 mm [0.330 in ±0.015 in]
Housing Material: General Purpose Phenolic
High Temperature: 204 °C [400 °F]
Agency Approvals and Standards: UL, CE, CSA, ENEC
Mounting Centers: 9,65 mm [0.38 in]
Tightening Torque: 0,26 N m [2.3 in lb]
Weight: 2,72 g [0.006 lb]
Package Height: 12,4 mm [0.49 in]
Package Width: 6,35 mm [0.25 in]
Package Length: 19,8 mm [0.78 in]
Recommended For: Operating in temperatures to 121 °C [250 °F]
Comment: Turret type solder terminals. CE: 61058-1; UL: E12252; CSA: LR41372
Availability: Global
UNSPSC Code: 30211905
UNSPSC Commodity: 30211905 Snap switches
Series Name: SM
