TE Connectivity MiniSeal High Performance Immersion-Resistant Crimp Splices

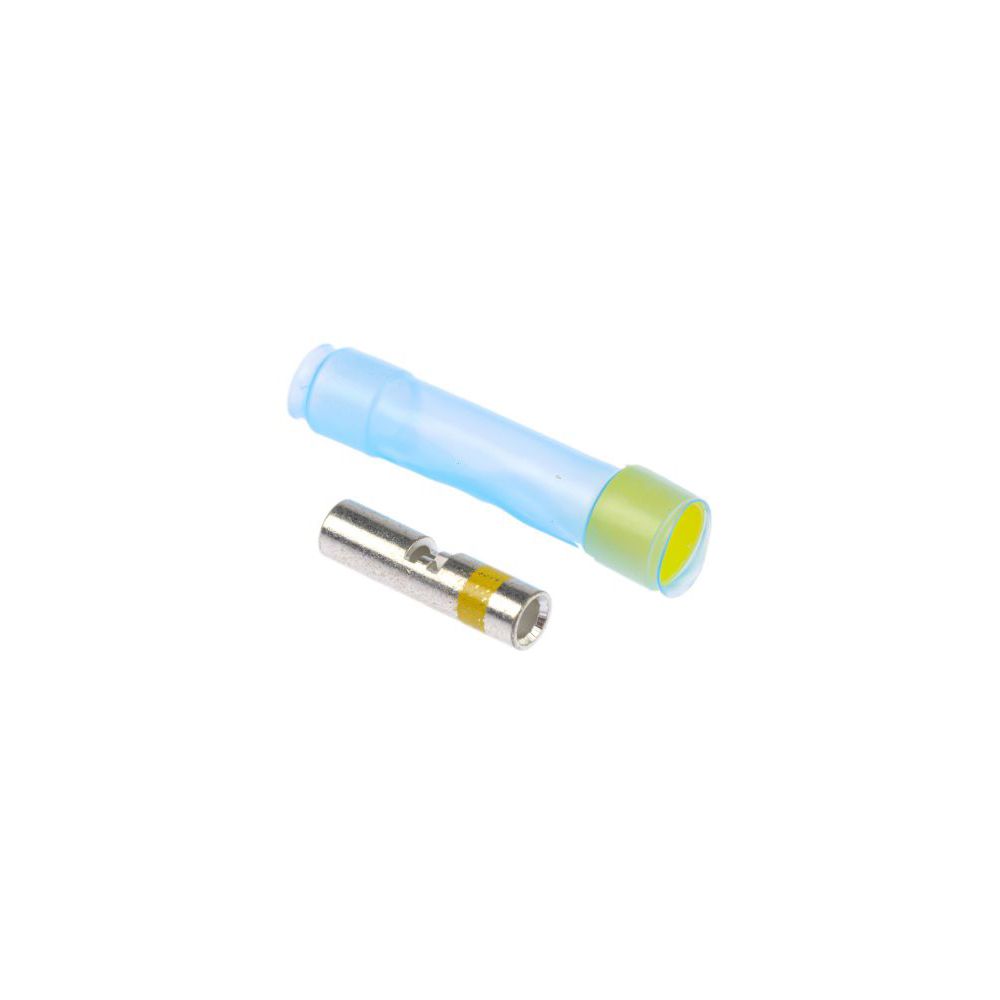

MiniSeal high performance immersion-resistant crimp splices designed to provide long-term performance and excellent reliability in challenging environments. These MiniSeal splices have a lightweight, low profile design for use in applications where the need for space saving and environmental sealing is critical. MiniSeal splices consist of a plated copper crimp barrel, meltable inserts and a heat-shrinkable transparent sealing sleeve. The insulation sleeve provides environmental protection to the electrical connection against liquids such as hydraulic fluid, aviation fuel and lubrication fluids and the resulting chemical and galvanic corrosion. The heat-shrinkable sleeve also provides strain relief for the splice. Stock numbers with part numbers D-436-36/37/38 are MIL-S-81824/1 qualified and are suitable for use on aircraft, aerospace vehicles and similar applications where exposure to severe wind and high moisture occurs.

Features and Benefits
Small and lightweight design
Easy one-step installation
Immersion resistant
Environmentally sealed against liquid penetration and resulting corrosion
Suitable for use in harsh environments
MIL spec M8184/1 versions available

Applications
These MiniSeal immersion resistant crimp splices are suitable for use in harsh environments within the aerospace and defence industries

Standards
MIL-S-81824/1

Approvals
MIL-S-81824/1

Specifications
Wire Size: 16 → 12 AWG
Minimum Wire Size: mm² 1.19mm²
Overall Length: 27.94mm
Maximum Wire Size: mm² 3.37mm²
Minimum Wire Size: AWG 16AWG
Diameter: 4.32mm
Maximum Wire Size: AWG 12AWG
Insulation: Insulated
Insulation Material: PVDF
Series: D-436
Contact Material: Copper Alloy
Contact Plating: Tin
