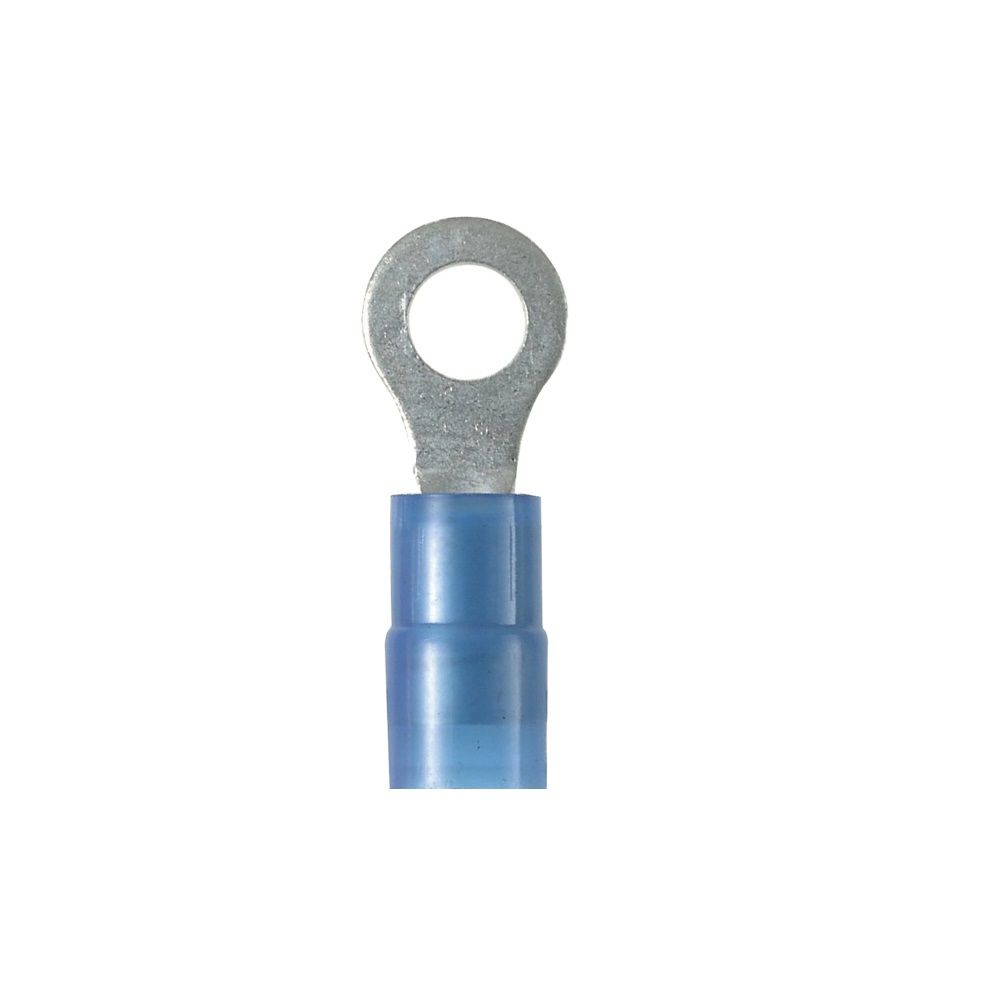

AMP 32442 is a PIDG insulated closed-ring tongue terminal designed for terminating 16–14 AWG (1–2.5 mm²) copper wire to a #6 / M3.5 stud. It features a blue color-coded insulation sleeve, straight orientation, and a tin-plated copper body and closed barrel.
Product specifications
- Manufacturer/Brand: AMP / TE Connectivity
- Part Number: 32442
- Product Type: PIDG closed-ring tongue terminal
- Wire Size: 16–14 AWG / 1–2.5 mm²
- Stud Size: #6 / M3.5
- Stud Diameter: 3.7 mm (0.146 in)
- Insulation Color: Blue
- Barrel: Closed
- Terminal Orientation: Straight
- Plating: Tin
- Body Material: Tin-plated copper
- Insulation: Partially insulated, with insulation-support retention
- Overall Length: 17.85 mm (0.703 in)
- Operating Temperature: 0–105 °C (0–221 °F)
- Typical application: Secure electrical wire termination to a #6 screw or stud.
