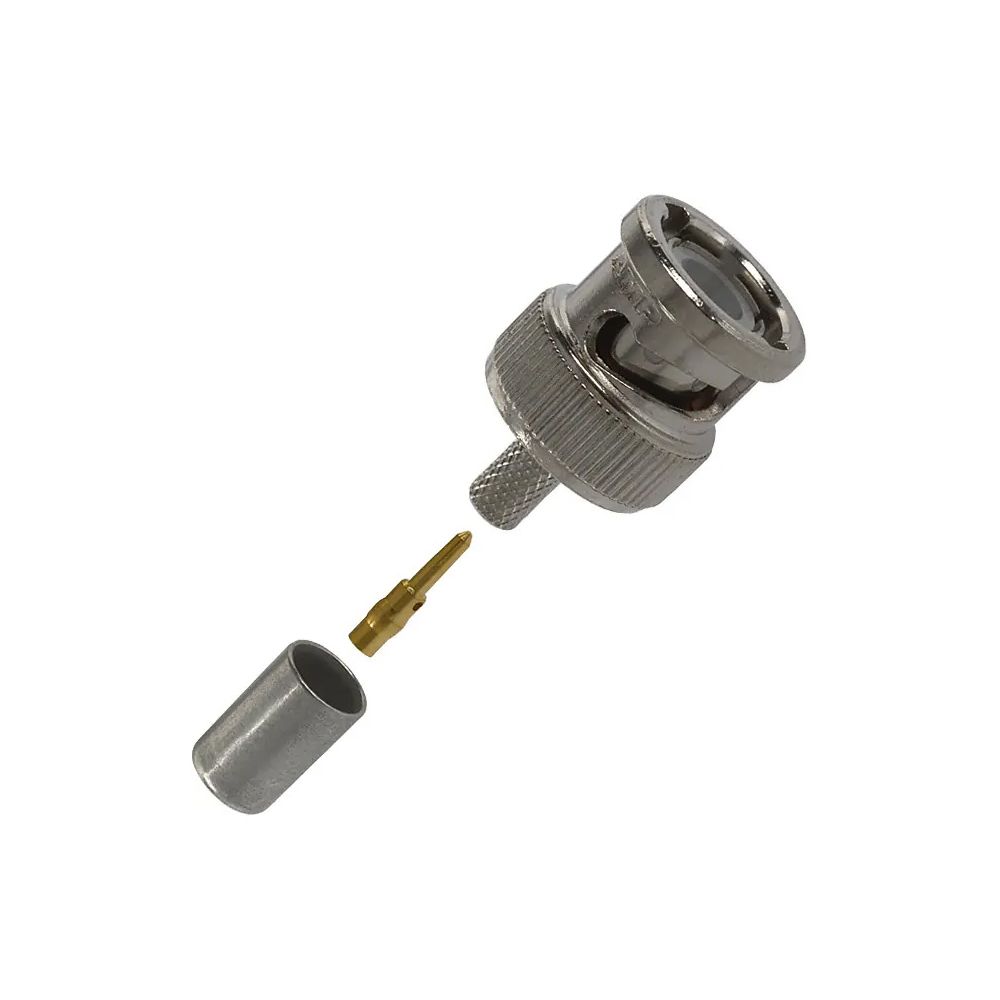

TE - 5225395-6 - BNC DUAL Crimp Connector - RG142/400

TE Connectivity plc

TE - 5225395-6 - BNC DUAL Crimp Connector - RG142/400

P/N: 5225395-6

Product Code: CON22C

Certificate Type: Certificate of Conformity (CoC)

8,29 $
The 5225395-6 is a 1-port straight BNC Plug with gold-plated brass contacts, nickel-plated brass body and fluoropolymer dielectric.
In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N 5225395-6
Product Code CON22C
Product Category Connectors
Certificate Type Certificate of Conformity (CoC)
Country of Manufacture United States
Delivery Usually within 4-5 weeks after placing order
Importer for Serbia Grappolo Aviation Supply Co. Ltd
Manufacturer TE Connectivity plc
The 5225395-6 is a 1-port straight BNC Plug with gold-plated brass contacts, nickel-plated brass body and fluoropolymer dielectric. The military grade BNC RF connector has bayonet locking coupling provides highly reliable, quick connect/disconnect coaxial connections. Exclusive O crimp termination allows positive insulation grip and require no soldering, providing terminations at a very low overall applied cost. This connector accepts a wide range of coaxial cables and is intermateable with industry standard connectors designed to MIL-C-39012 specifications. The dual crimp connector is suitable for RG142, RG142A and RG142B coaxial cable.

Low VSWR

Applications
Defence, Military & Aerospace, Consumer Electronics, RF Communications

Specs
Connector Type: BNC Coaxial
Connector Body Style: Straight Plug
Coaxial Termination: Crimp
Impedance: 50ohm
Coaxial Cable Types: RG142, RG142A, RG142B
Contact Material: Brass
Contact Plating: Gold Plated Contacts
Frequency Max: 4GHz
Connector Mounting: Cable Mount
