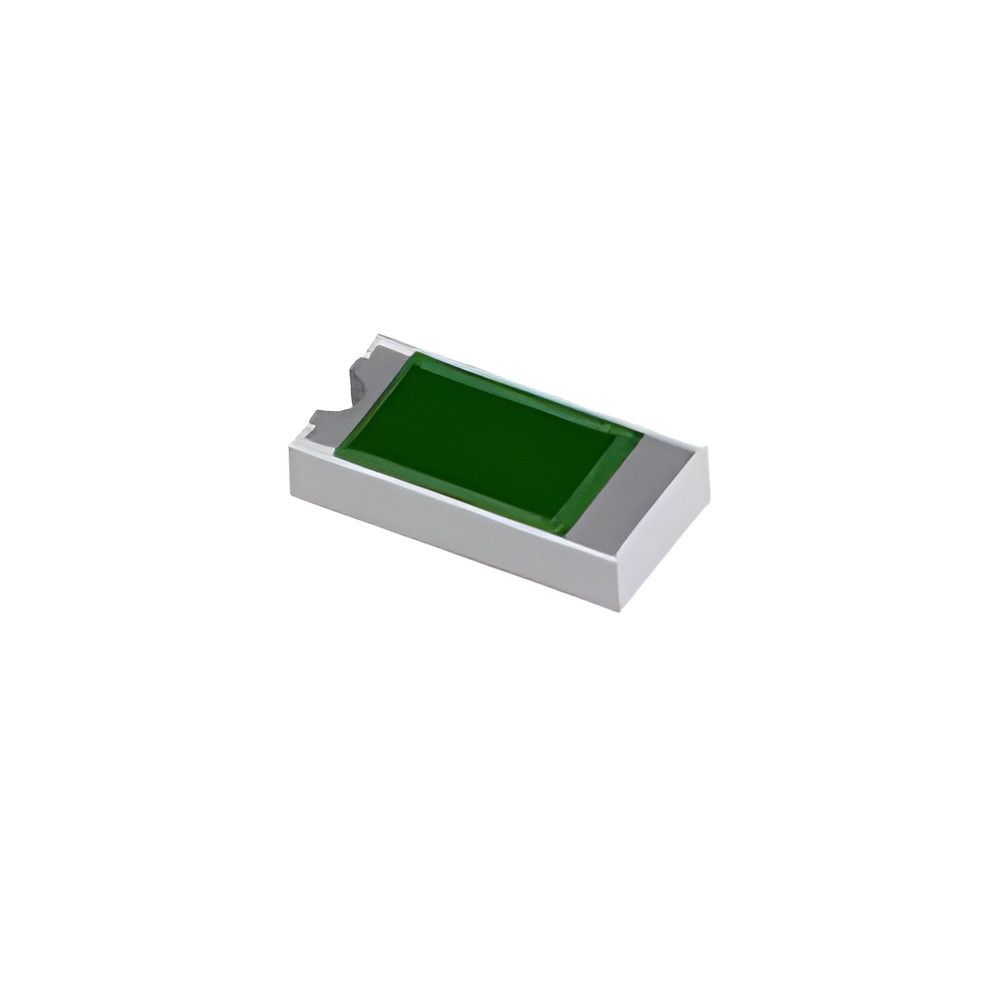

Vishay – TVC2010CT-50R0JN-2T-01TR – RF / HF 50Ω Chip Termination – 30W – DC to 2 GHz

High-frequency RF chip termination resistor designed to provide a precise 50-ohm impedance match in microwave and RF circuits. Used to absorb reflected RF power and prevent signal distortion, standing waves, and damage in transmission lines. Built on an aluminum nitride (AlN) substrate for excellent thermal conductivity, allowing stable high-power operation up to 30W across DC to 2 GHz frequency range. Commonly used in RF test equipment, avionics communication systems, radar modules, and microwave signal conditioning circuits.

Application: RF/microwave circuits, antenna systems, avionics communication equipment, radar systems, RF test & measurement equipment, signal termination in 50Ω transmission lines
Function: Provides broadband 50-ohm impedance termination to absorb RF energy, minimize signal reflections (VSWR reduction), and ensure stable transmission line performance under high-frequency and high-power conditions
