Overview

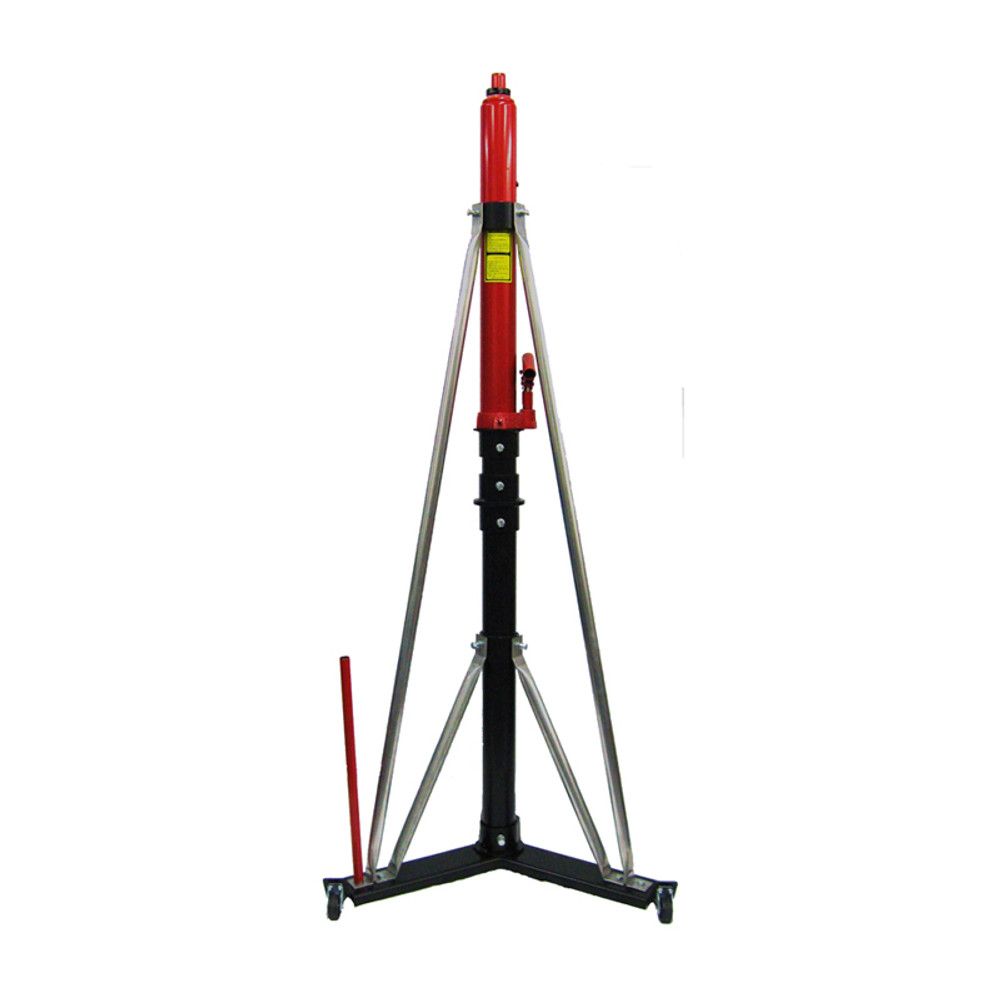

The Model 868HLW jack features our exclusive 31.5" cylinder assembly that provides a full 25" of available lifting range.

Effective Ranges
32"- 57", 38"-63", 62"-87", 68"-93"
Ram Capacity 16,000 lbs

The Model #868HLW combines the strength and versatility of our Model 868W high wing jack with the ability to provide a full 6" of additional ram travel. Ram travel that translates into additional ground clearance, working room and reduced set up time.

The #868HLW jack accomodates the complete line of high wing Cessna aircraft, such as the 172RG, 177RG, 182RG, 210 and 337. Shipped with adapters, our unique design allows the Model 868HLW to easily be converted from a low wing jack at 32" and 38" to a 62" or 68" high wing jack, avoiding the high cost of having to purchase numerous model specific jacks.

When the need is for a high wing jack that can deliver superior ground clearance and accommodate a wide range of aircraft, the Model 868HLW is the choice.

***NOT RECOMMENDED FOR***
Beech Model 99, Beech 1900, Citation Series,
Cheyenne I/II/III/IV, Conquest, King Air, Navajo,
Pilatus, Queenaire, T28
Features
High LIft Cylinder (25")
Double Action 8 Ton (16,000 lb) Hydraulic Cylinder
Highly Versatile
Shipped with Adapters for 32", 38", 62" & 68" Starting Heights
Double Braced at the 62" & 68" Height for Stability
Locking Safety Collar Secures the Load
Convenient Pump Handle Storage
Rugged Heavy Gauge Steel Construction
"Tilt & Go" Wheels for Greater Mobility
