Overview
The Eagle AOA kit is a highly visible, full color display and comes complete with interface computer, prewired cable/connector harnesses, tubing, cut to fit AOA probe mounting plate, hardware, and mounting brackets for installation in any aircraft. Our systems are designed for simple installation and pilot flown calibration for real time, instantaneous full-scale AOA range.

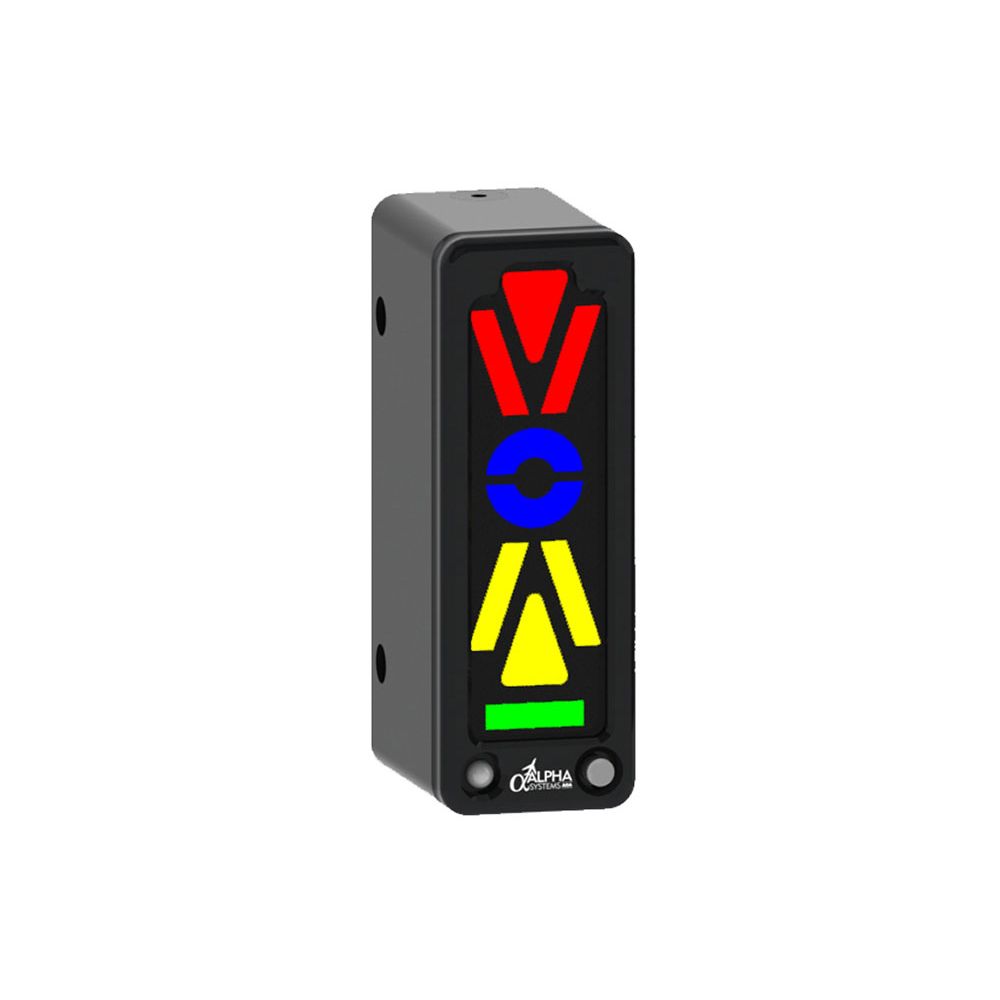

The Eagle display is a chevron style display. With the chevron display, when you come in for a landing you want to fly to the blue donut (on speed for landing). Should you come in with too low of an angle of attack, the yellow chevron will light up and tell you to put your nose up. Should you come in with too high of an angle of attack, the red chevron will light up and tell you nose down.

Features
Instantaneous Angle of Attack indication.
Additional indication segments.
Three point calibration process, programmed on remote switch panel, to aircraft specific lift curve.
16 different LED brightness levels from ultra dim to very bright.
Display has an imbedded photocell for daytime/nighttime brightness settings, choice of which is programmed at the display.
Audio output, tied to existing audio input on audio panel by others.
4 different audio options to choose from which is programmed by the end user at the remote switch panel.
Audio mute switch with amber LED indicator located on remote switch panel.
12-28 VDC input draws less than 0.250 Amps at full brightness.

TECHNICAL SPECIFICATIONS
CompleteKitWeight    Lessthan3.00lbs.Clickhereforfulllist.
VerticalFixedMountWeight    Approximately.12LBs|2oz
VerticalSwivelMountWeight    Approximately.195LBs|3.1oz
AOAInterfaceModulesize    InInches:5.75x2.60x1.65
SystemVoltageRequirements    12-28VoltsDC
SystemMaxPowerDraw    0.250Amps
SystemPowerCable    6ft,threewires:power,groundandshield
HeatedProbeVoltageRequirements    12or24VDC(mustspecifywhenordering)
HeatedProbePowerDraw    86Wattsat12VDC/172Wattsat24VDC
HeatedProbeCurrentDraw    8Ampsat12VDCand8Ampsat24VDC
HeatedProbePowerWire    Suppliedbyothers
AudioOutput    1VoltP-Pmaxat300ohminputimpedance
Aux(Audio)Cable    6ft,threewires:APaudio,APgroundandshield
AudioOptions    Four
MuteSwitch    Yes,onswitchpanel
LEDBrightnessLevels    16,fromultradimtoverybright
PhotocellDiode    Ondisplay,allowsforcustomdaytime/nighttimebrightnesssettings

In The Box
Eagle Display (2 Displays for Dual)
Switch Panel Module
I/F Module (Dual Display for Dual Model)
Non Heated Standard Probe
9x9 Probe Mounting Plate
Fixed / Swivel Mount (2 Mounts for Dual)
6ft Power Cable
6ft Display Extension Cable (2 Cables for Dual)
6ft AUX Cable
6ft Switch Panel Extension Cable
25 ft Blue Pneumatic Hose
25 ft White Pneumatic Hose
Eagle Installation Manual
Eagle Operations Manual
Protractor
Probe Cover
Screwdriver
Fixed/Swivel mounting bracket and all mounting hardware
Sun Shroud
Drill guide
Installation Instructions
