KIT FEATURES

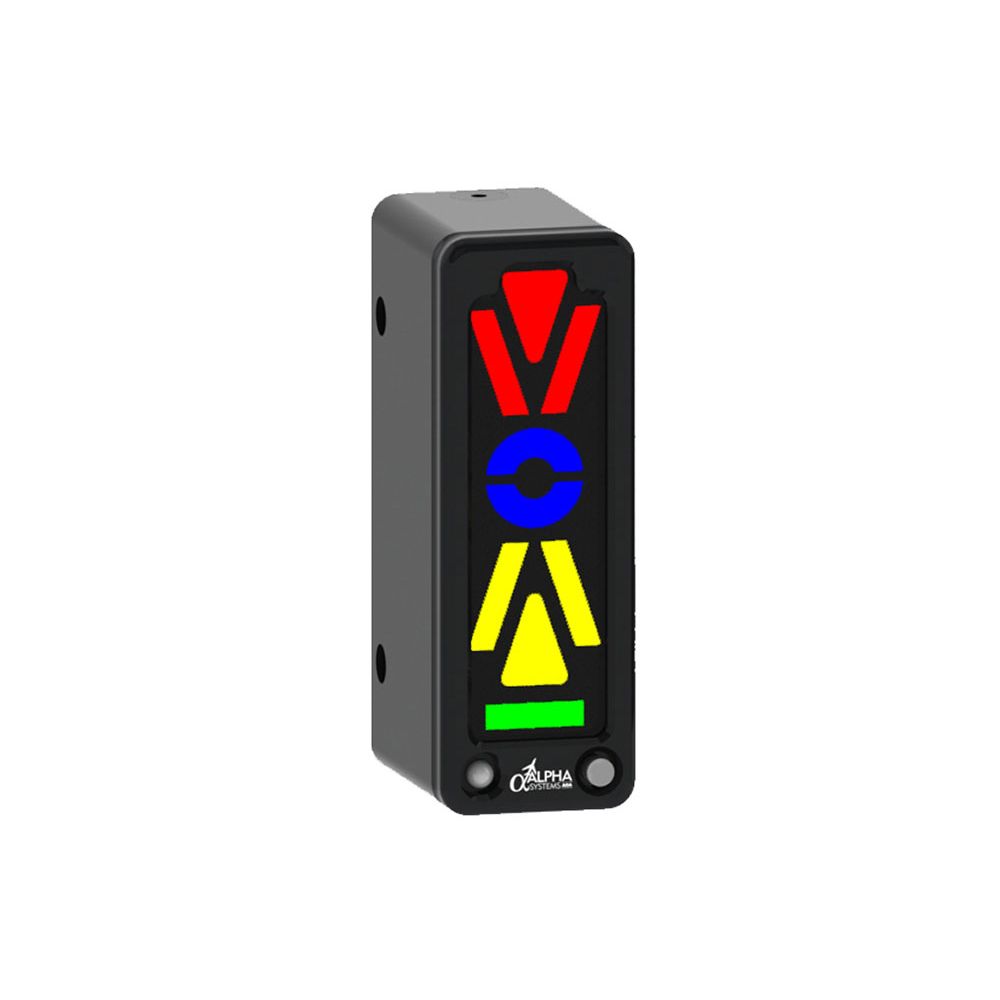

The Dual Eagle kit has two chevron style displays. With the chevron display, when you come in for a landing you want to fly to the blue donut (on speed for landing). Should you come in with too low of an angle of attack, the yellow chevron will light up and tell you to put your nose up. Should you come in with too high of an angle of attack, the red chevron will light up and tell you nose down.

Instantaneous Angle of Attack indication.
Additional indication segments.
Three point calibration process, programmed on remote switch panel, to aircraft specific lift curve.
16 different LED brightness levels from ultra dim to very bright.
Display has an imbedded photocell for daytime/nighttime brightness settings, choice of which is programmed at the display.
Audio output, tied to existing audio input on audio panel by others.
4 different audio options to choose from which is programmed by the end user at the remote switch panel.
Audio mute switch with amber LED indicator located on remote switch panel.
12-28 VDC input draws less than 0.250 Amps at full brightness.

KIT COMPONENTS
Two Eagle Displays
Switch Panel Module
I/F Module
Dual Display I/F Module
Non Heated Standard Probe
9x9 Probe Mounting Plate
Two Fixed / Swivel Mounts
6ft Power Cable
Two 6ft Display Extension Cables
6ft AUX Cable
6ft Dual Display I/F Module Extension Cable
6ft Switch Panel Extension Cable
25 ft Blue Pneumatic Hose
25 ft White Pneumatic Hose
Eagle Installation Manual
Eagle Operations Manual
Protractor
Probe Cover
Screwdriver

FIXED / SWIVEL MOUNT COMPONENTS
Fixed/Swivel mounting bracket and all mounting hardware
Sun Shroud
Drill guide
Installation Instructions

ADAPTER KITS / ADD ONS
I/O Module Enhancement (Flaps)
Heated Probes12V / 24V

TECHNICAL SPECIFICATIONS
Complete Kit Weight    Less than 3.00 lbs. Click here for full list.
Vertical Fixed Mount Weight    Approximately .12 LBs | 2 oz
Vertical Swivel Mount Weight    Approximately .195 LBs | 3.1 oz
AOA Interface Module size    In Inches: 5.75 x 2.60 x 1.65
System Voltage Requirements    12 - 28 Volts DC
System Max Power Draw    0.250 Amps
System Power Cable    6 ft, three wires: power, ground and shield
Heated Probe Voltage Requirements    12 or 24 VDC (must specify when ordering)
Heated Probe Power Draw    86 Watts at 12VDC / 172 Watts at 24VDC
Heated Probe Current Draw    8 Amps at 12VDC and 8 Amps at 24VDC
Heated Probe Power Wire    Supplied by others
Audio Output    1 Volt P-P max at 300 ohm input impedance
Aux (Audio) Cable    6 ft, three wires: AP audio, AP ground and shield
Audio Options    Four
Mute Switch    Yes, on switch panel
LED Brightness Levels    16, from ultra dim to very bright
Photocell Diode    On display, allows for custom daytime/nighttime brightness settings
