KIT FEATURES
The Eagle pressurized AOA kit was designed and comes complete with most parts to mount the AOA sense probe, connection hoses and AOA sensor module outside of the pressure bulkhead. The AOA sensor connects through to the inside cockpit through unused pins on an existing pass-through connector. Connections on the inside of the aircraft connect the signals to the display interface module for power, audio, and display connections. Our systems are designed for simple installation and pilot flown calibration for real time, instantaneous full-scale AOA range.

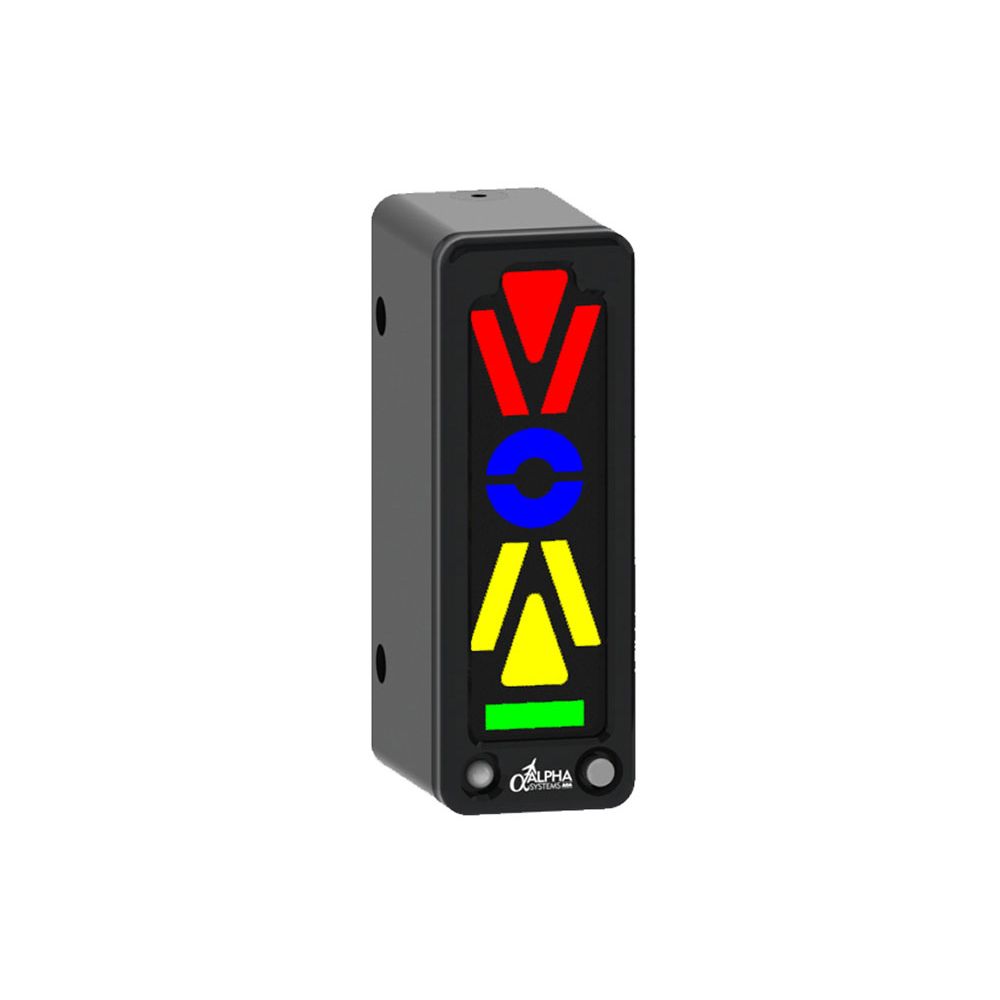

The Eagle display is a highly visible, full color, chevron style display. With the chevron display, when you come in for a landing you want to fly to the blue donut (on speed for landing). Should you come in with too low of an angle of attack, the yellow chevron will light up and tell you to put your nose up. Should you come in with too high of an angle of attack, the red chevron will light up and tell you nose down.

Instantaneous Angle of Attack indication.
Additional indication segments.
Three point calibration process, programmed on remote switch panel, to aircraft specific lift curve.
16 different LED brightness levels from ultra dim to very bright.
Display has an imbedded photocell for daytime/nighttime brightness settings, choice of which is programmed at the display.
Audio output, tied to existing audio input on audio panel by others.
4 different audio options to choose from which is programmed by the end user at the remote switch panel.
Audio mute switch with amber LED indicator located on remote switch panel.
12-28 VDC input draws less than 0.250 Amps at full brightness.

KIT COMPONENTS
Eagle Display
Switch Panel Module
Pressurized I/F Module
Sensor I/F Module
Non Heated Standard Probe
9x9 Probe Mounting Plate
Fixed / Swivel Mount
6ft Power Cable
6ft Display Extension Cable
15ft Sensor I/F Module Exterior Cable
15ft Sensor I/F + Audio Interior Cable
6ft Switch Panel Extension Cable
25 ft Blue Pneumatic Hose
25 ft White Pneumatic Hose
Eagle Installation Manual
Eagle Operations Manual
Protractor
Probe Cover
Screwdriver

FIXED / SWIVEL MOUNT COMPONENTS
Fixed/Swivel mounting bracket and all mounting hardware
Sun Shroud
Drill guide
Installation Instructions

ADAPTER KITS / ADD ONS
I/O Module Enhancement (Flaps)
Heated Probes12V / 24V

TECHNICAL SPECIFICATIONS
Complete Kit Weight    Less than 3.00 lbs. Click here for full list.
Vertical Fixed Mount Weight    Approximately .12 LBs | 2 oz
Vertical Swivel Mount Weight    Approximately .195 LBs | 3.1 oz
AOA Interface Module size    In Inches: 5.75 x 2.60 x 1.65
System Voltage Requirements    12 - 28 Volts DC
System Max Power Draw    0.250 Amps
System Power Cable    6 ft, three wires: power, ground and shield
Heated Probe Voltage Requirements    12 or 24 VDC (must specify when ordering)
Heated Probe Power Draw    86 Watts at 12VDC / 172 Watts at 24VDC
Heated Probe Current Draw    8 Amps at 12VDC and 8 Amps at 24VDC
Heated Probe Power Wire    Supplied by others
Audio Output    1 Volt P-P max at 300 ohm input impedance
Aux (Audio) Cable    6 ft, three wires: AP audio, AP ground and shield
Audio Options    Four
Mute Switch    Yes, on switch panel
LED Brightness Levels    16, from ultra dim to very bright
Photocell Diode    On display, allows for custom daytime/nighttime brightness settings
Pressurized Version    Yes
