AMP - Terminal - 320565 - 16-14 AWG - #8 - Blue

TE Connectivity plc

AMP - Terminal - 320565 - 16-14 AWG - #8 - Blue

P/N: 320565

Product Code: ELE251C

Certificate Type: Certificate of Conformity (CoC)

0,44 $

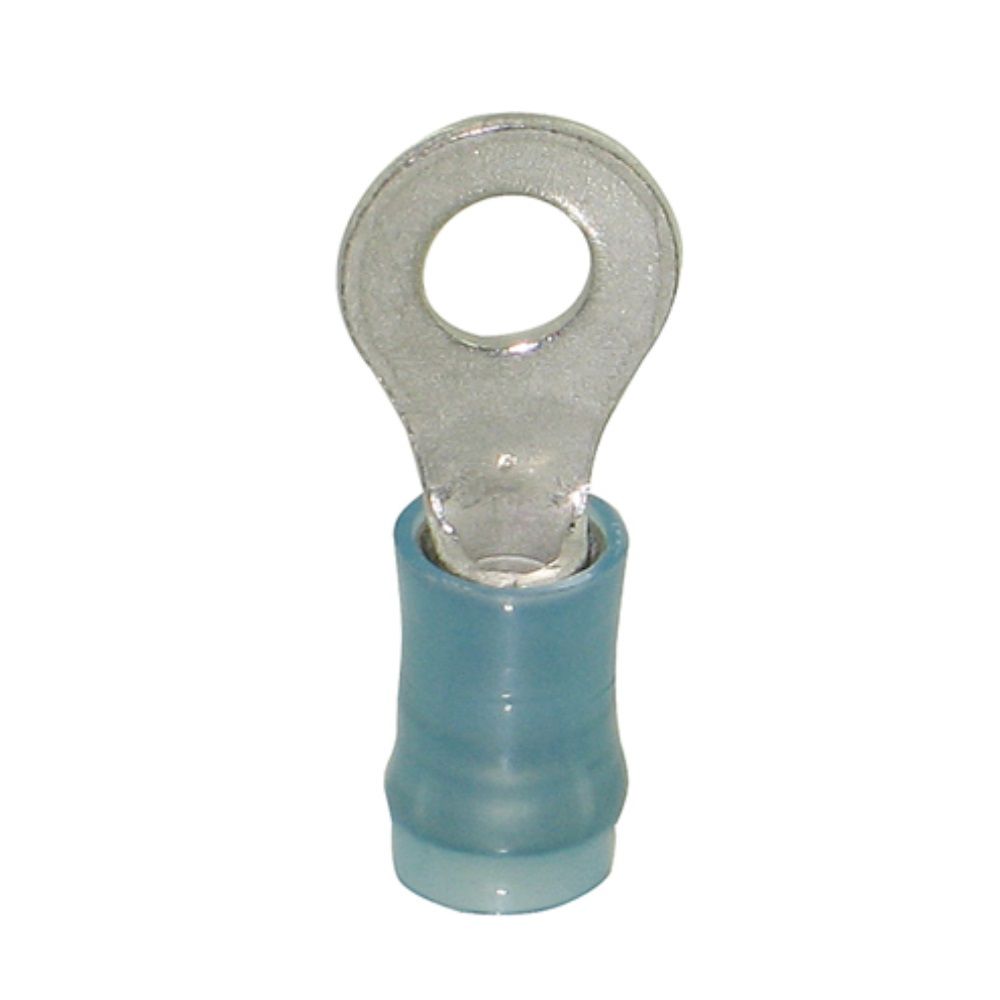

The AMP 320565 Terminal is a PIDG insulated ring tongue terminal designed for electrical wire termination applications using 16–14 AWG wire.
In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N 320565
Product Code ELE251C
Product Category Electrical & Electronics
Certificate Type Certificate of Conformity (CoC)
Country of Manufacture United States
Delivery Please add to cart for availability. If no stock delivery term is usually 3-4 weeks.
Alternate P/N 31902
Importer for Serbia Grappolo Aviation Supply Co. Ltd
Manufacturer TE Connectivity plc

The 320565 features a closed barrel, straight terminal orientation, and tin-plated terminal construction. Its blue insulation provides easy wire-size identification and supports proper crimping and installation. The terminal incorporates insulation support and is designed for use with compatible copper wire.

Product Information:

Manufacturer: AMP / TE Connectivity
Part Number: 320565
Series: PIDG
Component: Ring Tongue Terminal
Terminal Type: Closed Ring Tongue
Wire Size: 16–14 AWG
Wire Size: 1.04–2.62 mm²
Stud Size: #8 / M4
Stud Diameter: 4.34 mm
Insulation Color: Blue
Insulation: Nylon (Polyamide)
Terminal Plating: Tin
Barrel Type: Closed
Terminal Orientation: Straight
Wire Insulation Support: Yes
Compatible Wire: Copper
Voltage Rating: 300 V
Operating Temperature: 0–105°C
Product Length: 0.859 in (21.82 mm)
Weight: 0.001102 kg

The AMP 320565 is suitable for electrical wiring, harness assembly, maintenance, repair, and replacement applications where a 16–14 AWG wire and #8/M4 stud connection are required. Its PIDG design provides a consistent crimping interface and insulation support for reliable wire termination.
