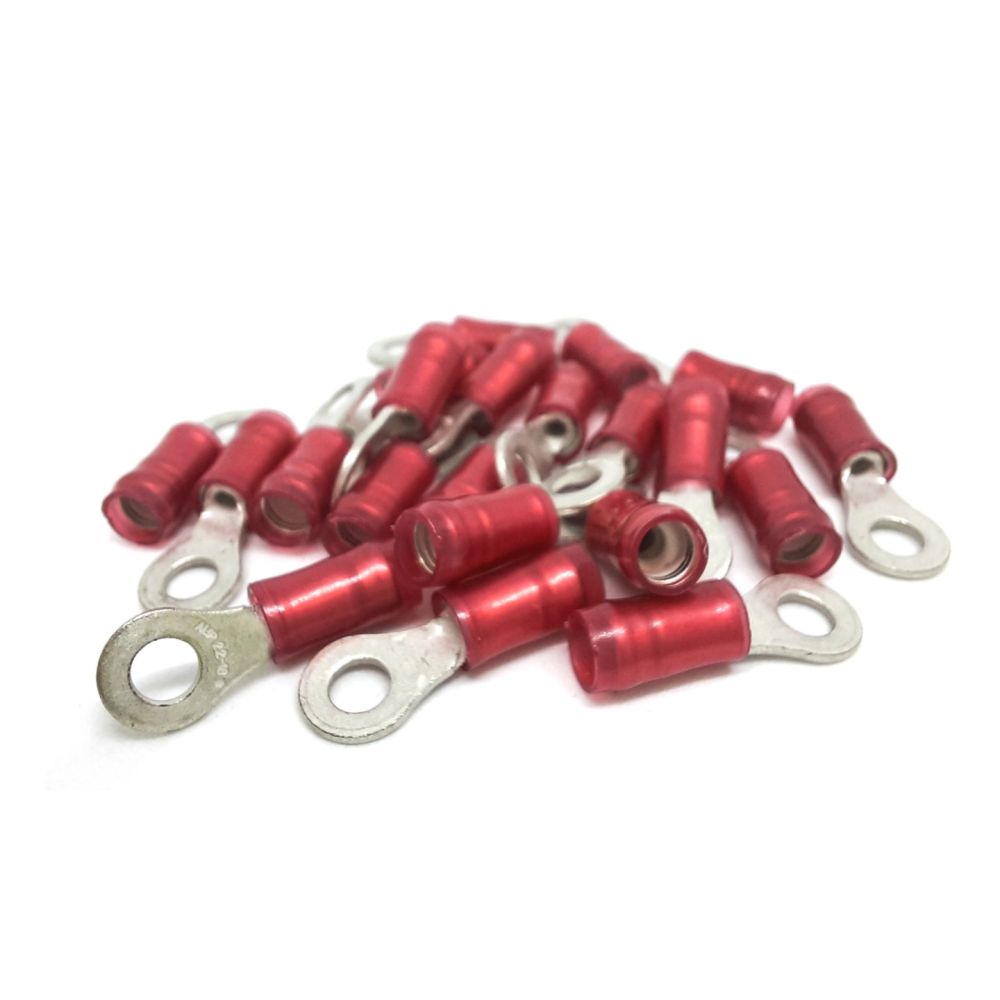

AMP - Terminal - 36152 - 22-16AWG - #6 - Red

TE Connectivity plc

AMP - Terminal - 36152 - 22-16AWG - #6 - Red

P/N: 36152

Product Code: ELE248C

Certificate Type: Certificate of Conformity (CoC)

0,44 $
AMP - Terminal - 36152 - #6 16-22 gauge red - Pack of 100 pcs.
In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N 36152
Product Code ELE248C
Product Category Electrical & Electronics
Certificate Type Certificate of Conformity (CoC)
Country of Manufacture United States
Delivery Usually within 3-4 weeks after placing order
Alternate P/N 31885
Importer for Serbia Grappolo Aviation Supply Co. Ltd
Manufacturer TE Connectivity plc
Features
- Product Type: Cable Wrap
- Stud Size: M3.5
- Barrel Type: Closed Barrel
- Sealable: No
- Insulated: Yes
- Wire/Cable Type: Regular Wire
- Shape Description: RING-041
- Number of Holes: 1
- Terminal Angle: Straight
- Plating Material: Copper, Tin
- Weight per Piece(g): .775
- Inspection Slot: No
- Alias #:11021 AMPS-0-0036152-0 F40776-000

Benefits
- Made of high conductivity copper; tin-plated for optimal corrosion protection
- Copper sleeve for vibration resistance and improved wire insulation support
- Body has inner serrations for maximum electrical contact and tensile strength
- Insulation sleeves are colour-coded by wire size to the corresponding. TE Connectivity (TE) tooling for easy identification and termination
- Readily available at distributors in small packages or bulk quantities
- Most PIDG terminals and splices are UL/CSA listed and Mil-Spec approved
- Operating temperature 105°C; operating voltage 300V

Specification
- Voltage (Max) (V): 300
- Wire Size (AWG): 22 – 16
- Wire Size(mm²): .26 – 1.65
- Wire Size(CMA): 509 – 3260
- Stud Diameter: 3.68mm[0.145in]
- Tongue Thickness: .79mm[0.031in]
- Overall Length : 20.24mm[0.8in]
- Barrel Inside Diameter: 3.68mm[0.145in]
- Wire Insulation Diameter: 2.67 – 3.56mm[0.105 – .14in)
