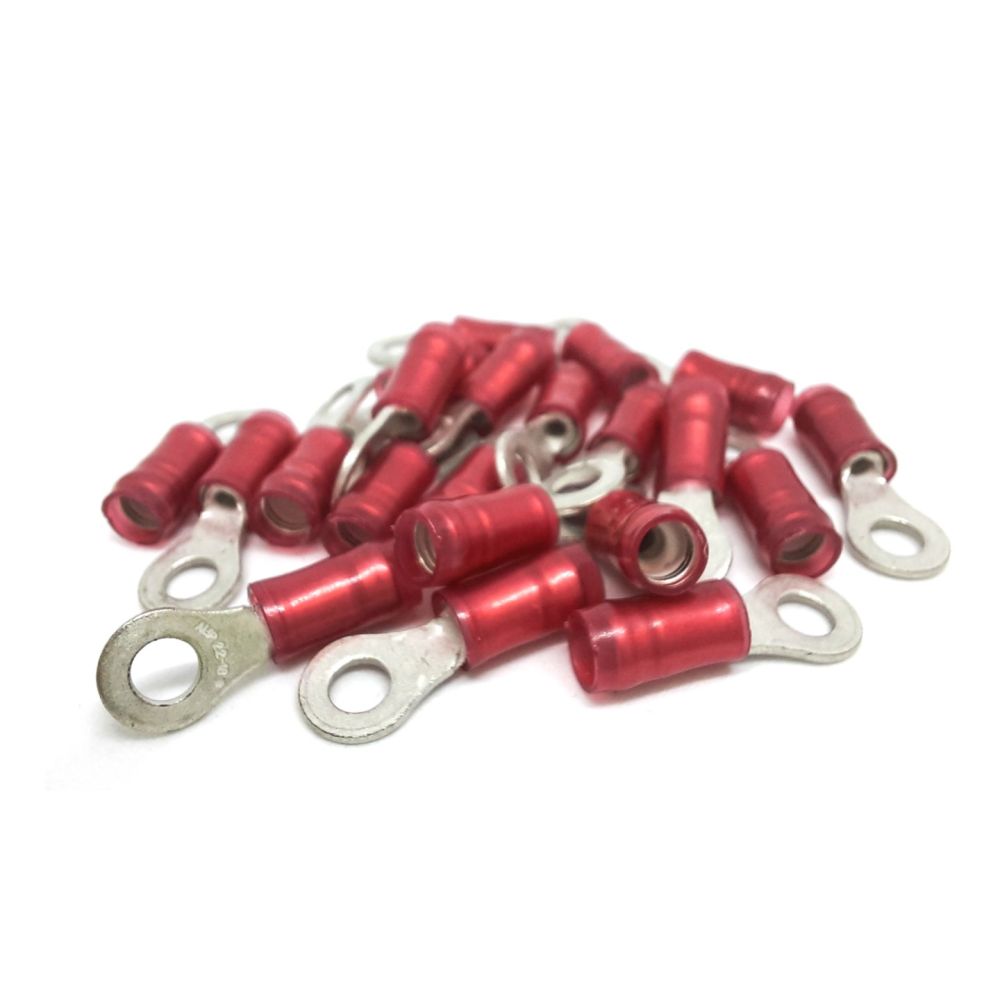

AMP - Terminal - 36154 - #10 16-22 gauge red - Pack of 100 pcs

AMP - Terminal - 36154 - #10 16-22 gauge red - Pack of 100 pcs
Price on request
SKU
36154
Features
- Stud Size: 10
- Barrel Type: Closed Barrel
- Sealable: No
- Insulated: Yes
- Wire/Cable Type: Regular Wire
- Shape Description: RING-041

Benefits

- Made of high conductivity copper; tin-plated for optimal corrosion protection
- Copper sleeve for vibration resistance and improved wire insulation support
- Body has inner serrations for maximum electrical contact and tensile strength
- Insulation sleeves are colour-coded by wire size to the corresponding. TE Connectivity (TE) tooling for easy identification and termination
- Readily available at distributors in small packages or bulk quantities
- Most PIDG terminals and splices are UL/CSA listed and Mil-Spec approved
- Operating temperature 105°C; operating voltage 300V

Specification

- Voltage (Max)(V): 300
- Wire Size(AWG): 22 – 16
- Wire Size(mm²): .26 – 1.65
- Wire Size(CMA): 509 – 3260
- Stud Diameter: 5mm[0.197in]
- Tongue Thickness: .79 mm[0.031 in]
- Overall Length: 21.44 mm [0.84 in]
- Barrel Inside Diameter : 3.68 mm[0.145 in]
- Wire Insulation Diameter (mm): 2.67 – 3.56
- Operating Temperature Range (°C): 105
More Information
SKU 36154
Delivery Usually within 3-4 weeks after placing order
Manufacturer N/A
