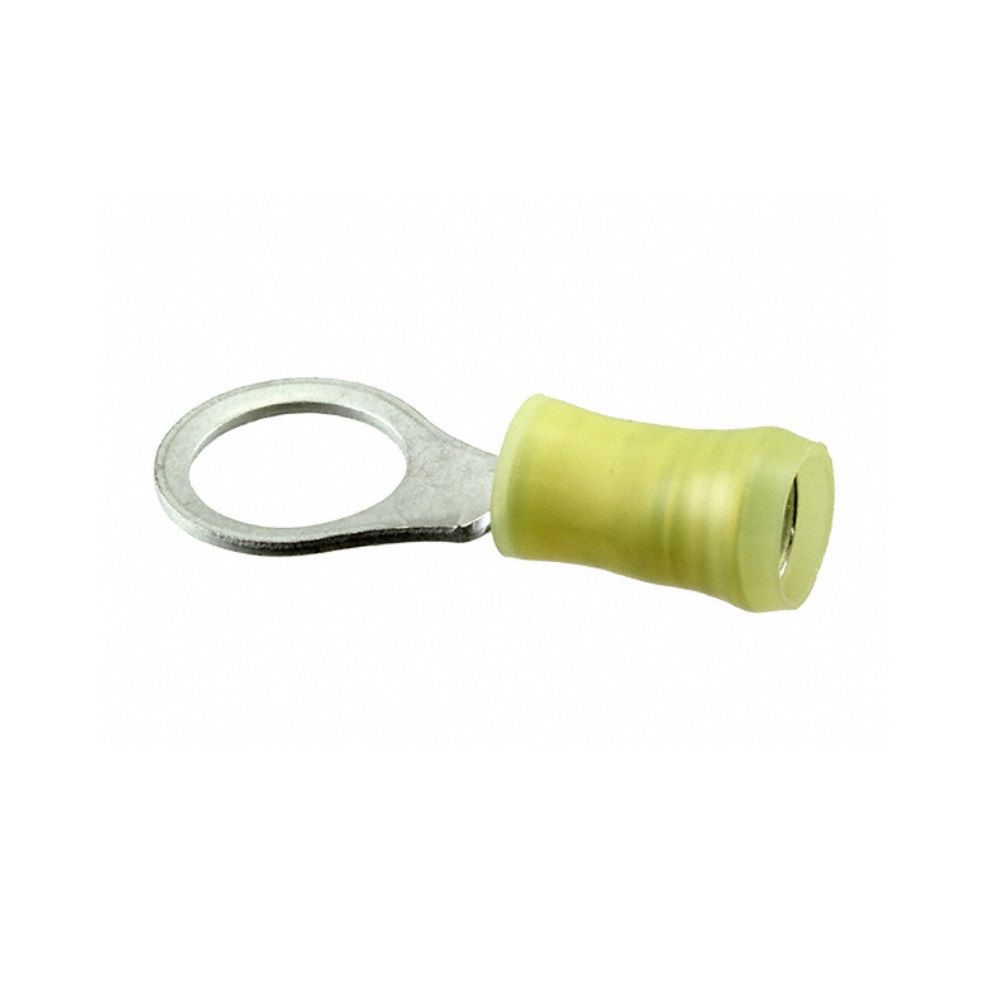

Featuring a closed-ring tongue design, tin-plated copper construction, and yellow insulation, the AMP 130207 delivers excellent conductivity, corrosion resistance, and protection against vibration and environmental exposure. The PIDG (Pre-Insulated Diamond Grip) design provides reliable wire retention and strain relief when installed with the appropriate crimp tooling.

The AMP 130207 is suitable for applications requiring a secure stud-mounted connection and is widely used in aviation, industrial, and electrical maintenance environments where durability and consistent performance are essential.

Product Features

Designed for 12–10 AWG wire
Fits M10 stud size
Yellow insulated PIDG ring terminal
Closed-ring design for secure mounting
Tin-plated copper construction for corrosion resistance
Provides reliable electrical and mechanical performance
Suitable for aircraft and high-vibration applications

Specifications

Manufacturer: AMP / TE Connectivity
Part Number: 130207
Terminal Type: PIDG Ring Terminal
Wire Range: 12–10 AWG (2.62–6.64 mm²)
Stud Size: M10 (10.3 mm / 0.406 in)
Insulation Color: Yellow
Material: Tin-plated copper with insulation
Operating Temperature: 0–105°C (32–221°F)
Unit of Measure: Each
Approximate Weight: 0.002 lb (0.03 oz / 0.9 g)
