Overview

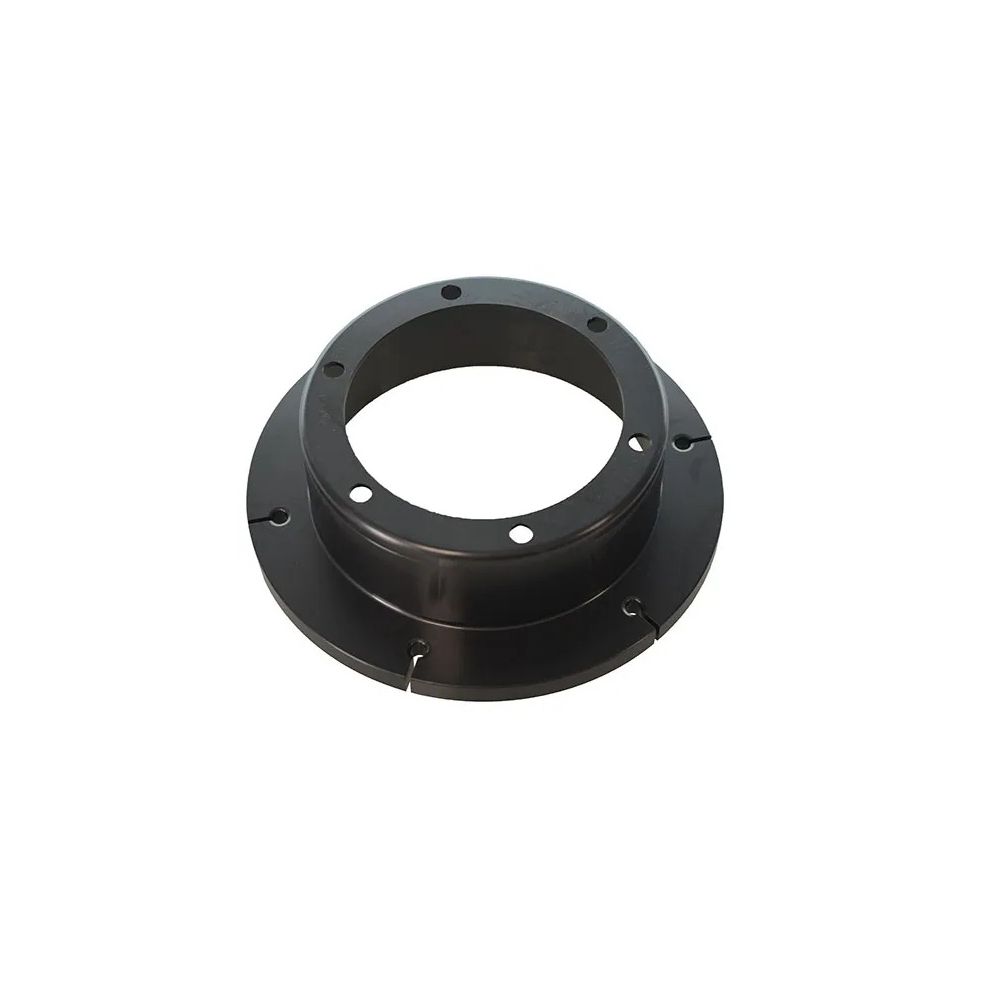

APS brake discs are state-of-the-art CNC machined from a one-piece forging.

When the metal is forged it creates a directional grain flow that follows the contour of the disc. This allows for a much stronger disc that has a reduced risk of the cracking and catastrophic failures associated with the inferior welded design.

The APS "Black Steel" advantage is a proprietary heat treatment with a two-fold purpose. The heat treatment strengthens the steel by bonding the carbon, oxygen and nitrogen in the top layer of the metal. This is not a coating that can wear off. The steel itself is transformed. The heat treatment gives the steel its aesthetically pleasing black appearance and provides a surface with a high resistance to the corrosion and oxidation associated with the extreme thermal cycling experienced in aircraft braking systems. This makes it an excellent choice for agricultural aircraft that work in a harsh, chemical environment, as well as anyone who leaves their plane outside for most of its life.

Features
The performance of Kevlar™APS semi-metallic linings are impregnated with Kevlar® fibers for optimum performance.
APS metallic linings are constructed from an innovative design and from more durable materials than other brands so you get longer wear and superior stopping power for greater safety.
APS Quality StandardIn order to receive FAA PMA certification, APS brake discs and linings must go through a rigorous testing process. All APS brakes must meet or exceed OEM standards. In every case of testing APS brakes exceeded the required standards for performance and reliability. APS discs and linings are dyno tested as part of the PMA approval process.

Eligible Aircrafts
Piper PA-32  - PA-32-260 - Start S/N 32-1 - End S/N 32-7800008
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-32  - PA-32-300 - Start S/N 32-40000 - End S/N 32-7940290
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-32 - PA-32-301 - Start S/N 3206001 - End S/N 3206060
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83A.

Piper PA-32 - PA-32-301 - Start S/N 32-8006002 - End S/N 32-8606023
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83A.

Piper PA-32 - PA-32R-300 - Start S/N 32R-7680001 - End S/N 32R-7880068
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-32 - PA-32RT-300 - Start S/N 32R-7885002 - End S/N 32R-7985106
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-32 - PA-32RT-300T - Start S/N 32R-7787001 - End S/N 32R-7987126
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-34 - PA-34-200 - Start S/N 34-7250001 - End S/N 34-7450220
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-34 - PA-34-200T - Start S/N 34-7570001 - End S/N 34-8170092
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-34 - PA-34-220T - Start S/N 34-8133001 - End S/N 34-8633031
Wheel Assembly P/N 40-120C, heavy duty option. Brake Assembly P/N 30-83A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-44 - PA-44-180 - Start S/N 44-7995001 - End S/N 44-8195026
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-44 - PA-44-180T - Start S/N 44-8107001 - End S/N 44-8207020
Wheel Assembly P/N 40-120, heavy duty option. Brake Assembly P/N 30-83. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-46 - PA-46-310P - Start S/N 46-8408001 - End S/N 46-8608067
Wheel Assembly P/N 40-120C, heavy duty option. Brake Assembly P/N 30-83A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-46 - PA-46-350P (w/ G1000) - Start S/N 4636460 - End S/N 4636999
Wheel Assembly P/N 40-120C, heavy duty option. Brake Assembly P/N 30-83A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.

Piper PA-46 - PA-46-350P (w/o G1000) - Start S/N 4622001 - End S/N 4622200
Wheel Assembly P/N 40-120C, heavy duty option. Brake Assembly P/N 30-83A. Owner must verify wheel or brake assembly part numbers to determine applicable disc and lining part numbers.
