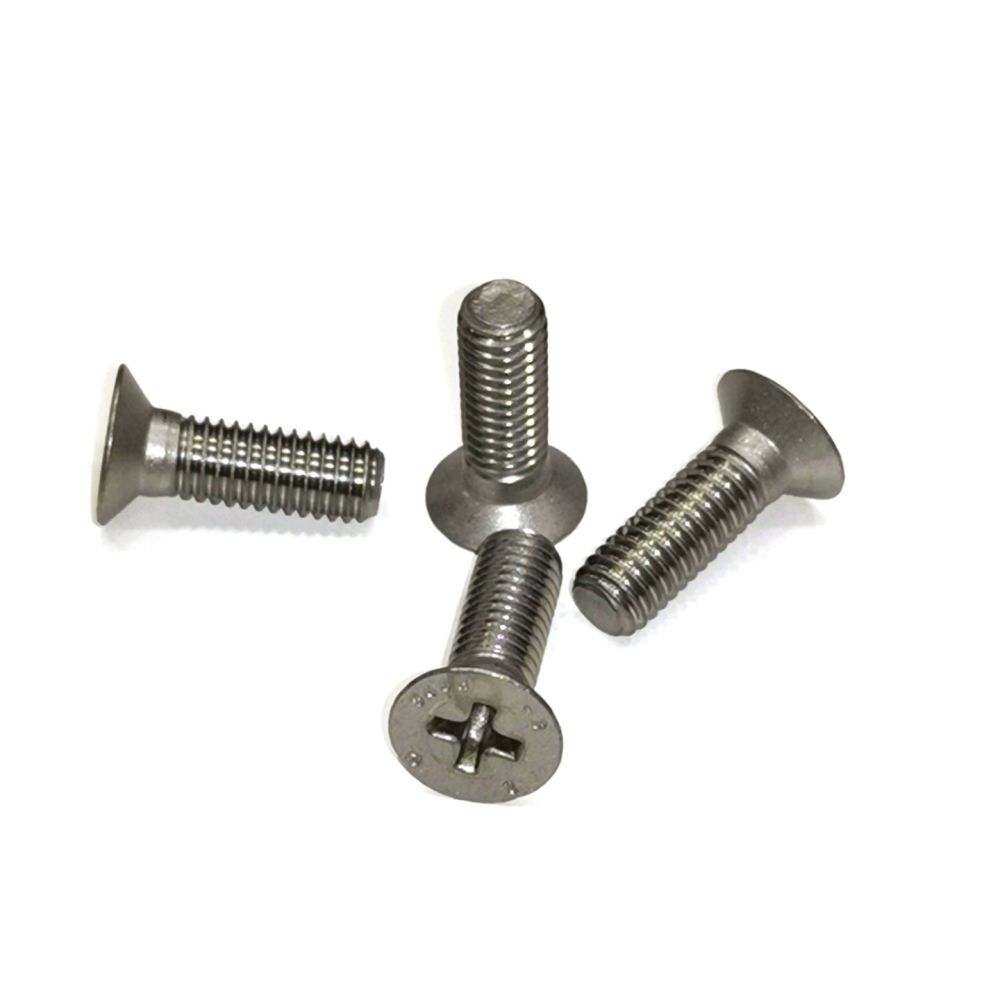

Screw - NAS560HK3-2 - Alt. to 520-059
Screw - NAS560HK3-2 - Alt. to 520-059
P/N: NAS560HK3-2
Product Code: HD174C
Certificate Type: Certificate of Conformity (CoC)
Fast Delivery
Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.
Original Parts
We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.
Expert Support
Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.
Technical Details:
Countersink Angle: 99.0 Degrees Minimum And 101.0 Degrees Maximum
Fastener Length: 0.573 Inches Minimum And 0.618 Inches Maximum
Hardness Rating: 248.0 Brinell Standard Minimum And 321.0 Brinell Standard Maximum
Head Diameter: 0.337 Inches Minimum And 0.387 Inches Maximum
Head Style: Flat Countersunk
Minimum Tensile Strength: 130000 Pounds Per Square Inch
Nominal Thread Diameter: 0.190 Inches
Internal Drive Style: Cross Recess Type 1
Screw Material Document And Classification: Ams 5732 Assn Std 1st Material Response Or Ams 5733 Assn Std 2nd Material Response
Screw Material: Iron Alloy 660
Thread Class: 3a
Thread Direction: Right-hand
Thread Length: 0.433 Inches Minimum And 0.508 Inches Maximum
Thread Quantity Per Inch: 32
Thread Series Designator: Unf
