Becker - GK615-E TDS

Air traffic services require efficient, secure, modern and user friendly communication equipment. Becker´s radio systems offer well proportioned solutions for small to medium-sized airports, airfields or airline operations stations.

Assembled with quality-proven components, engineered with state-of-the-art technology and driven with a customer focused philosophy, our radio-communications solutions are meant to be flexible and scalable.

Designed for operations at airfields and airports in a very demanding environment, the GK615 and GK616 portable transceivers offer latest technology and comfortable operation on all frequency channels in the aeronautical frequency range, adjustable in 25 kHz steps as well as in 8,33 kHz steps. The user friendly operator menu and the extensive setup possibilities allow a very personal setup for the user. The large, clear and dazzle-free LC display shows the active frequency and either the standby frequency or memory channel.

With an output power of 6W or 10W, the transmitter is strong enough for medium range communications, ensuring a low cost of ownership for the customer.

The GK615 and GK616 transceivers are also ideally suited for ballooning and emergency radio in aircraft.

The nicely shaped and sturdy aluminium case integrates a dry-lead–acid battery (12V 2.2Ah) which can be easily charged via a socket located on the front panel.

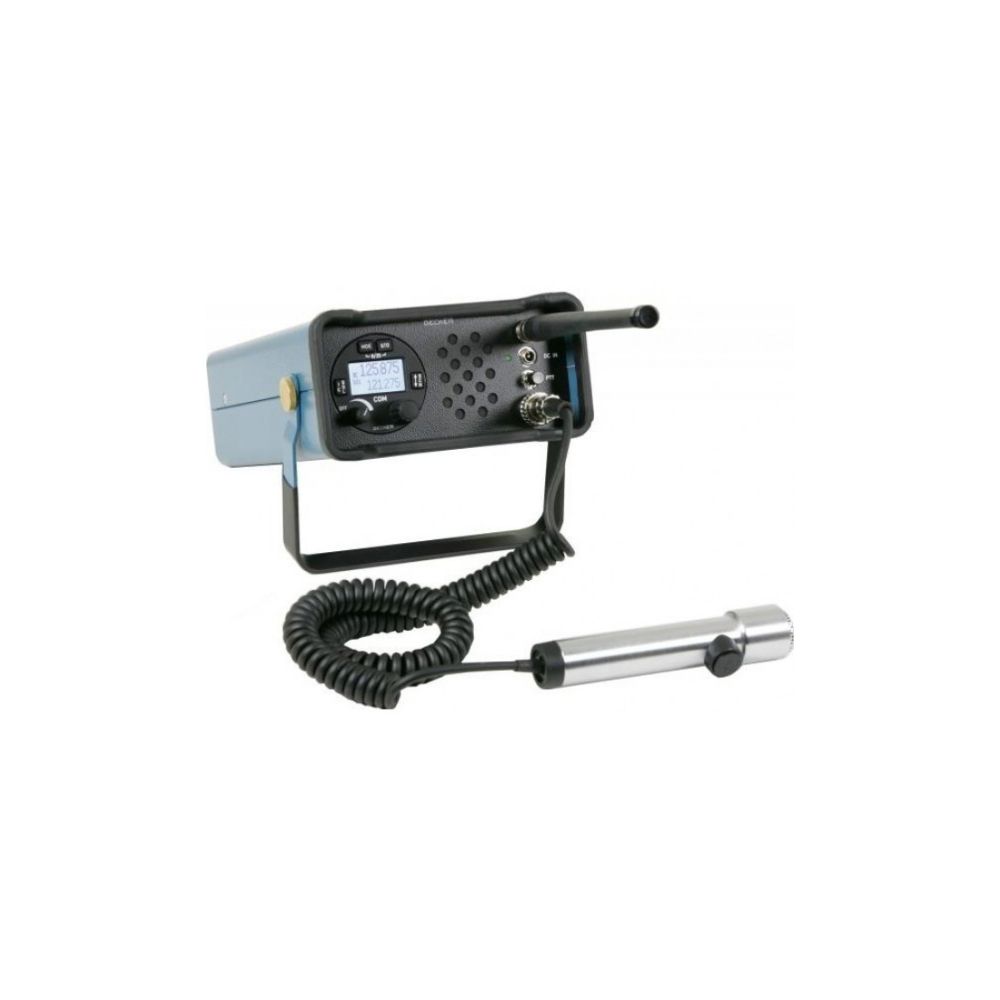

Compact housing, rugged and equipped with modern technology, the Becker GK 615-E is ideal for usage as a mobile radio station - e.g. for balloons or vehicles. The Becker GK615-E features channel spacing of 8.33 and 25 kHz, a transmission power of 6 Watt and comes ready to use equipped (with antenna, mic. and battery).

FEATURES
Simultan monitoring of two frequencies
Frequency data base with 99 memory spaces
Portable Aviation Radio Station, EN300676
Transmission power 6 Watt @ 12 V DC
Frequency range - 118,000 to 136,990 MHz
Channel spacing - 8.33 / 25 kHz
Operating voltage - 10 to 32 V DC
Housing measures - 270 x 175 x 80 mm
Weight approx. 4.4 kg
