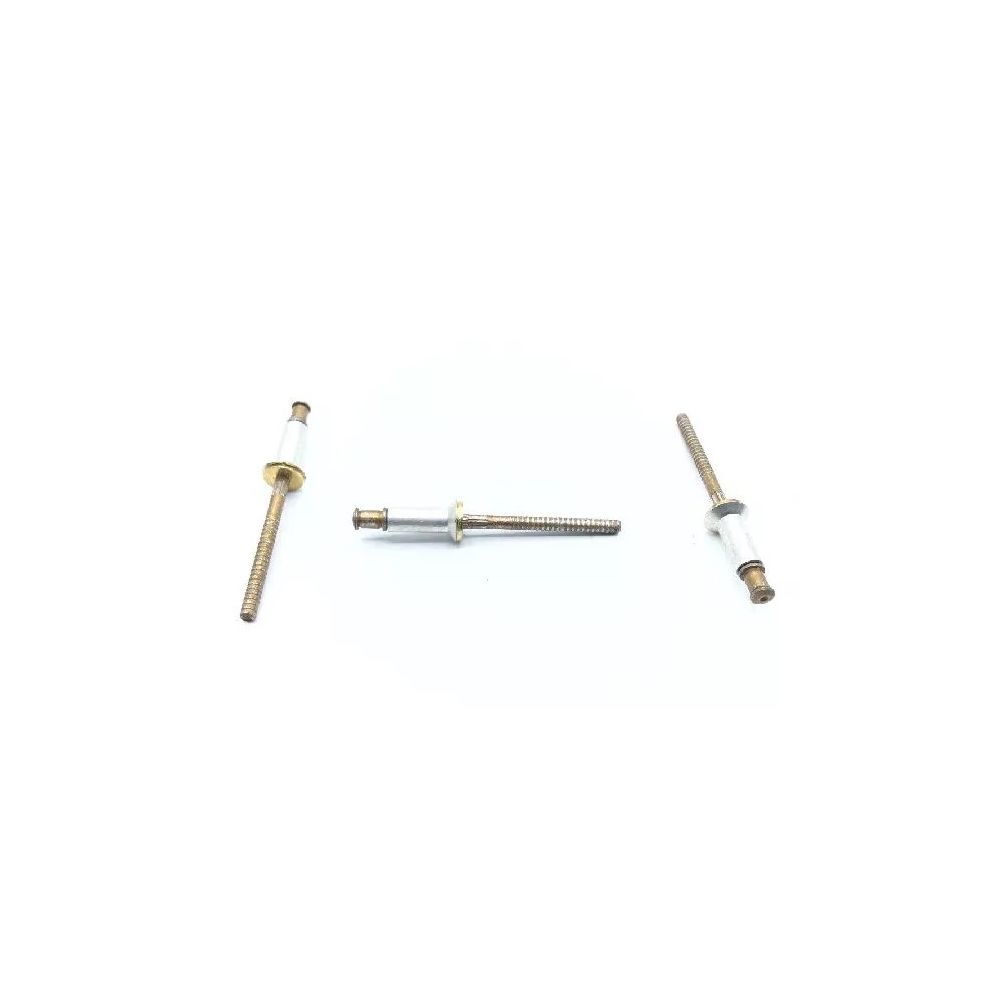

Cherry Aerospace - CR3212-5-5 - Lock Rivet Pack 25 Pcs.

P/N: CR3212-5-5

Product Code: HD308F

Certificate Type: FAA 8130-3

65,21 $

Cherrymax Rivet - Diameter: 5/32", Grip Range: 0.

In Stock (1 pcs)

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N CR3212-5-5

Delivery In stock - Same day dispatch

Product Code HD308F

Product Category Hardware

Certificate Type FAA 8130-3

Country of Manufacture United States

Importer for Serbia Grappolo Aviation Supply Co. Ltd

Manufacturer Cherry Aerospace

COUNTERSINK ANGLE
99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM

EXPANSION DEVICE
SERRATED STEM-TYPE W

FASTENER LENGTH
0.408 INCHES MINIMUM AND 0.428 INCHES MAXIMUM

GRIP LENGTH
0.251 INCHES MINIMUM AND 0.312 INCHES MAXIMUM

HEAD MAJOR DIAMETER
0.290 INCHES MAXIMUM

HEAD STYLE
FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER)

MATERIAL DOCUMENT AND CLASSIFICATION
AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM

MATERIAL DOCUMENT AND CLASSIFICATION
QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE

MATERIAL
ALUMINUM ALLOY 5056 SLEEVE

MATERIAL
STEEL COMP 8740 STEM

SHANK DIAMETER
0.156 INCHES MINIMUM AND 0.160 INCHES MAXIMUM

SHANK STYLE
SELF-PLUGGING MECHANICALLY LOCKED STEM

SPECIAL FEATURES
NS LETTERS AFTER THE MATERIAL CODE B INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER H AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY.

SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE

SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE STEM

SURFACE TREATMENT
CADMIUM STEM AND CHROMATE STEM

SURFACE TREATMENT
CHROMATE SLEEVE
