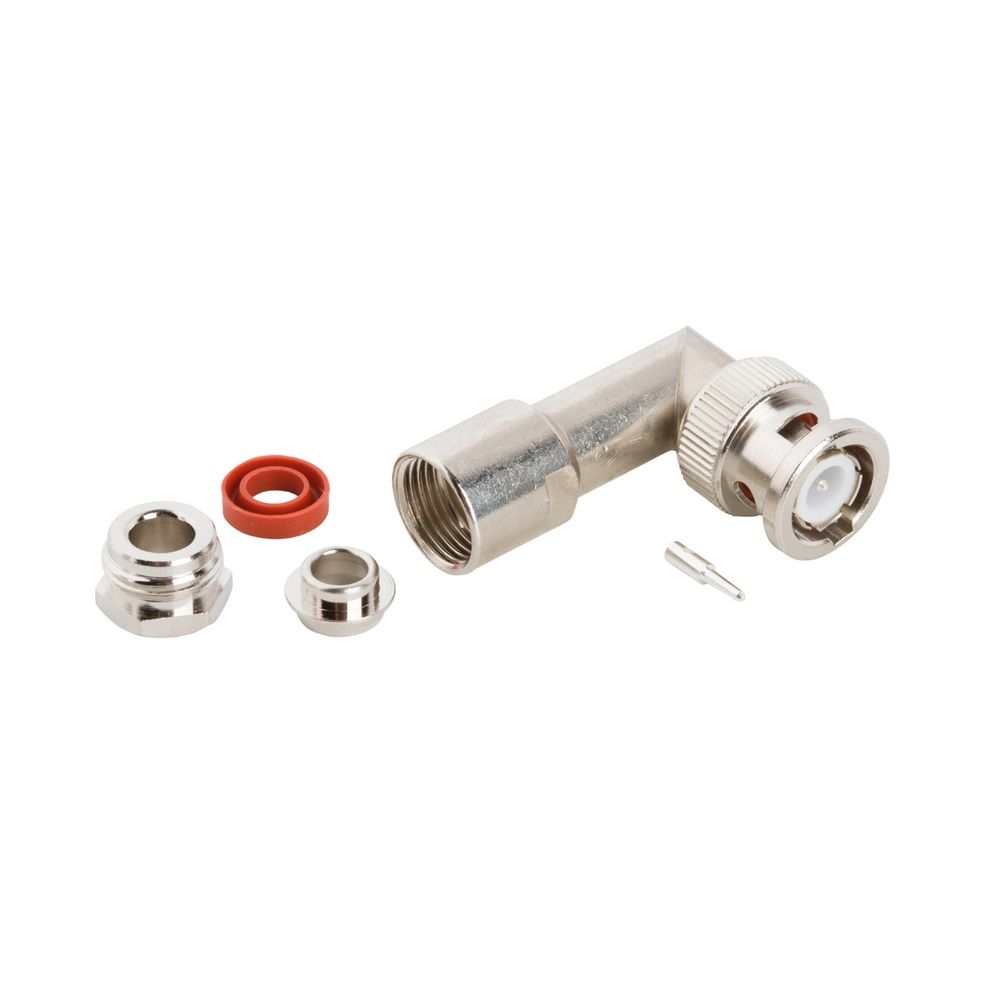

Manufactured from high-quality brass with silver-plated contacts and a PTFE dielectric, the UG913-U offers excellent electrical performance, low signal loss, and outstanding resistance to corrosion and wear. The right-angle design is ideal for installations where space is limited, reducing cable strain while maintaining reliable electrical performance. Designed for use with RG-55/U and RG-58/U coaxial cables, the connector features a solder center contact and clamp-style cable termination for a secure mechanical and electrical connection.

With a characteristic impedance of 50 ohms, a maximum operating frequency of 1 GHz, and a VSWR of 1.2 maximum, the UG913-U delivers stable RF performance across a wide range of communication and instrumentation systems. Its rugged construction and proven reliability make it an excellent choice for new installations, maintenance, repairs, and replacement of existing RF coaxial connectors.

Key Features

BNC right-angle male coaxial plug
50-ohm characteristic impedance
Bayonet-lock coupling for quick, secure connection
Solder center contact with clamp-style cable termination
Compatible with RG-55/U and RG-58/U coaxial cables
Silver-plated brass contacts and PTFE dielectric
Maximum operating frequency: 1 GHz
Designed for aviation, military, communications, and test equipment applications
Durable, corrosion-resistant construction for long service life

Specifications

Part Number: UG913-U
Connector Type: BNC Plug (Male)
Orientation: Right Angle
Impedance: 50 Ω
Frequency Rating: Up to 1 GHz
Termination: Solder / Clamp
Compatible Cable: RG-55/U, RG-58/U
Material: Brass body with silver-plated contacts and PTFE dielectric
