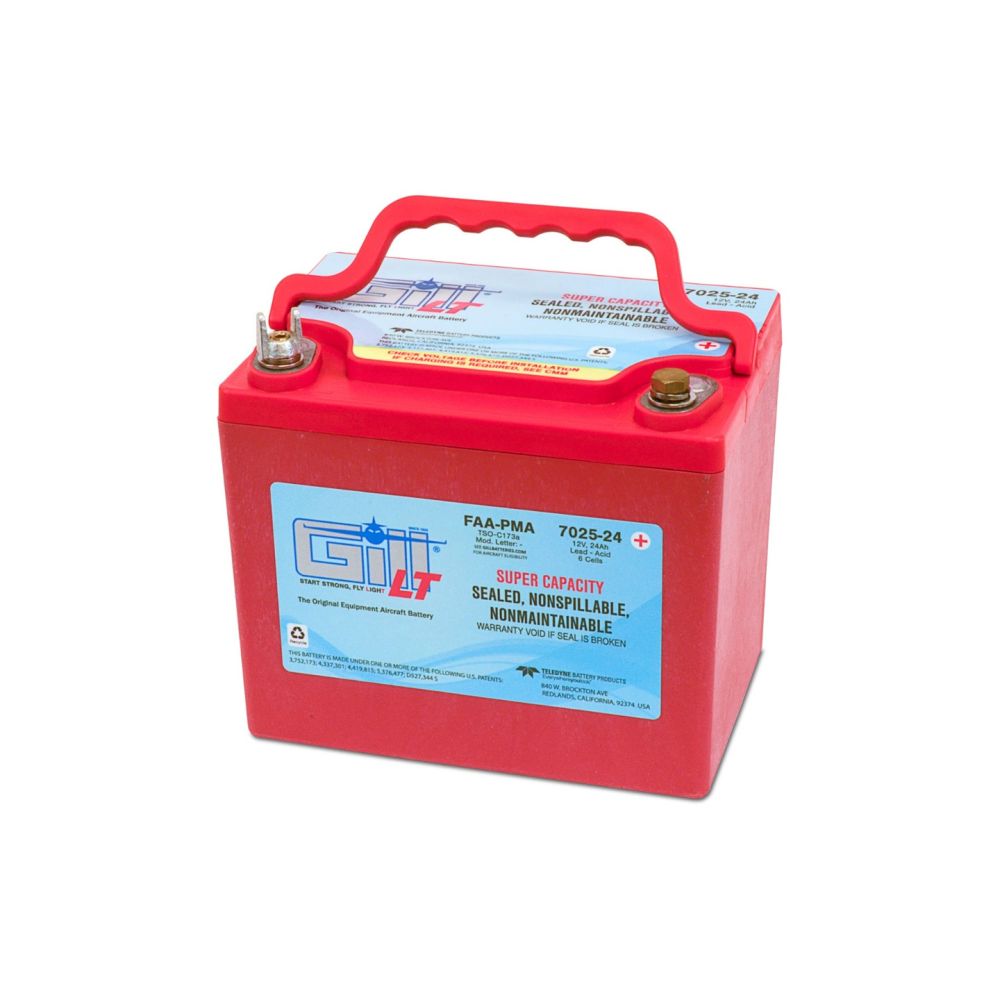

Sealed Aircraft Battery
Extreme Cranking

Download:
Full Battery Specifications

Gill® Batteries are the original equipment aircraft battery. They offer the better performing sealed lead acid battery that is fast becoming the choice in a growing list of airframe manufacturers.

- The 7025-24 has the highest amp hour capacity available in the 12 volt 25 case size series
- Factory Sealed, No Electrolyte or Water Required
- Non-Spillable and Proven for Aerobatic Maneuvering
- 2 Year Factory Warranty After Installation
- Robust Starts, Higher Residual Power & Faster Re-Charge Times
- First Capacity Check Not Required Until 18 Months/1800 Hours
- Cost Competitive and Best Shelf Life in Lead Acid Chemistry
- Advanced Valve Regulated Lead Acid (VRLA) Design
- FAA/PMA Approved, TSO Authorized and Tested to DO-160E
- LT® Series Batteries Are Fully Recyclable
- LT® Series Batteries Ship Hazmat Exempt

Super Capacity Gill® 7025-24 is perfect for your 12V small piston powered aircraft needing extra power for navigation, laptops, cell phones and other interconnectivity devices. See application chart link to locate your aircraft and review your battery options.

Aircraft Applications:

- Alexandria 17-30, 17-30A, 17-31, 17-31A, 17-31TC, 17-31ATC
- American Champion 7ACA, 7EGA, 7GCBC
- Beechcraft 19A, B19, 23, A23, A23A, B23, C23, A24, A24R, B24R, C24R, E33, E33A, E33C, F33, G33, 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, D-55, D55A, E55, E55A, 58, 58A, 58P, 58TC, G58, 77, 95, B95, B95A, D95A, E95, 95-55, 95-A55, 95-B55, 95-C55, 95-C55A
- Cessna 120, 140, 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A150K, A150L, A150M, 170, 172, 172B, 172C, 172D, 172E, 172F (USAF T-41A), 172G, 172H (USAF T-41A), 172I, 172K, 172L, 172M, 172N, F172D, F172E, F172F, F172G, F172H, F172K, F172L, F172M, F172N, 175, 175B, 175C, P172D, 177, 177A, 177B, 188, 188A, 188B, T188C, 310, 310B, 310C, 310D, 310F, 310G, 310H, E310H, 310I, 310J, 310J-1, E310J, 310K, 310P, 310Q, 320, 340
- Commander 112, 112TC, 112B, 112TCA
- Piper PA-11, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-23-235, PA-23-250, PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-161, PA-28-180, PA-28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28RT-201, PA-28RT-201T, PA-32-260, PA-32-300, PA-32R-300, PA-32RT-300, PA-32RT-300T, PA-36-285, PA-36-300, PA-36-375, PA-38-112
- Socata GA-7
- Robinson Helicopter Company R-22, R-22 ALPHA, R-22 BETA, R-22 MARINER, R-44, R-44 II
- True Flight AA-1, AA-1A, AA-1B, AA-1C, AA-5, AA-5A, AA-5B
