Sensata Technologies Inc.

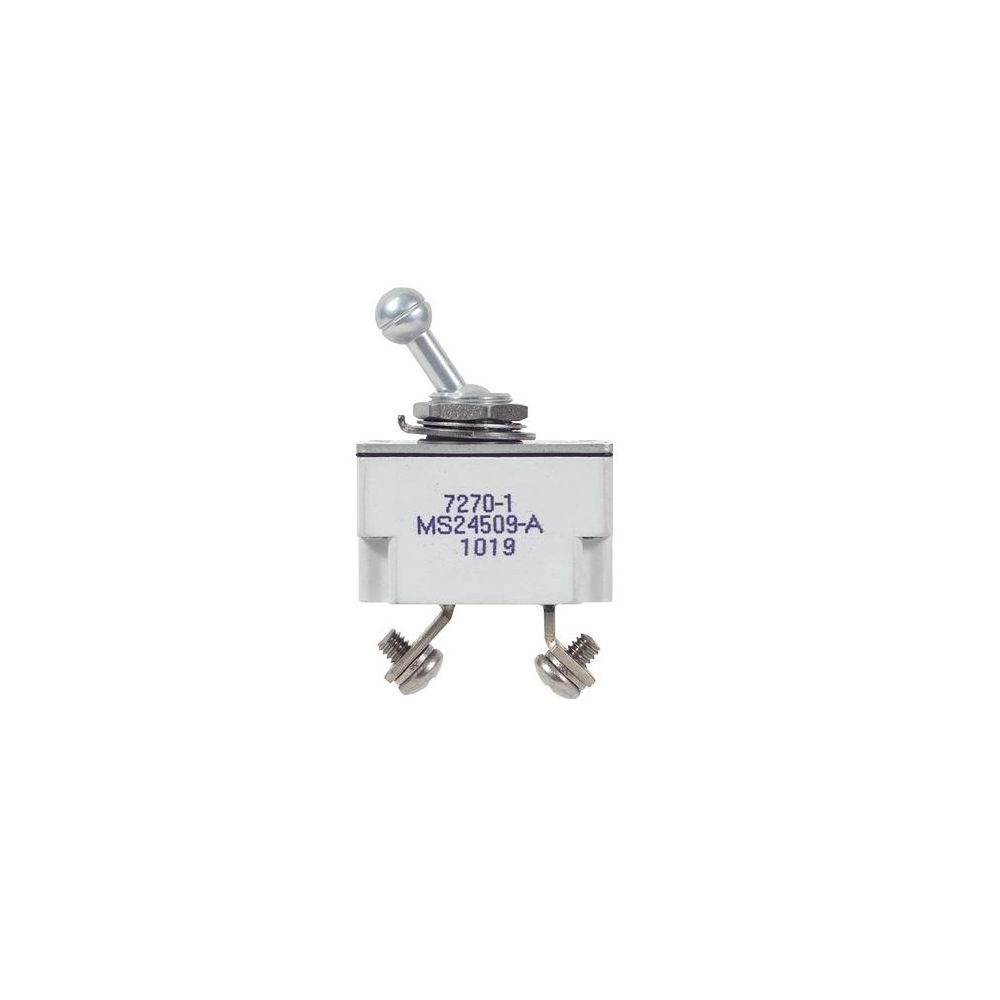

KLIXON - 7270-1-15 - Circuit Breaker 15A

P/N: 7270-1-15

Product Code: CB34C

Certificate Type: Certificate of Conformity (CoC)

421,03 $

In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N 7270-1-15

Product Code CB34C

Product Category Circuit Breakers

Certificate Type Certificate of Conformity (CoC)

Country of Manufacture United States

Delivery Please add to cart for availability. If no stock delivery term is usually 3-4 weeks.

Importer for Serbia Grappolo Aviation Supply Co. Ltd

Manufacturer Sensata Technologies Inc.

Alternate P/N MS24509-15, MS24509A-15

Specification/References
- Body Style: Single Pole Type
- Bushing Length: 0.250 Inches Nominal
- Body Length: 1.375 Inches Maximum
- Body Width: 0.750 Inches Maximum
- Case Material: Metal
- Center To Center Distance Between Terminals Parallel To Length: 0.906 Inches Nominal
- Mounting Surface To Terminal End Distance: 1.312 Inches Nominal
- Pole Quantity: 1
- Mounting Facility Type And Quantity: 1 Threaded Bushing
- Storage Type: General Purpose Warehouse
- Thread Quantity Per Inch: 32
- Maximum Continuous Load Current Rating Per Pole: 15.0 Amperes Ac Single Location And 15.0 Amperes Dc Single Location
- Operating Voltage Type And Rating Per Pole In Volts: 115.0 Ac Single Location And 28.0 Dc Single Location
- Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 3500.0 Ac Single Location And 6000.0 Dc Single Location
- Circuit Protection Type: Overcurrent Single Location
- Trip Release Method: Thermal Single Location
- Trip Release Characteristic: Time Delay Single Location
- Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 138.0 Single Location
- Reset Method: Manual
- Main Contact Tripping Mechanism Type: Trip Free
- Manual Actuator Type And Quantity: 1 Toggle
- Actuator Function: Trip-Reset
- Actuator Position Designation: At Pole One
- Internal Trip Release Configuration: Series Trip Single Location
- Nominal Thread Size: 0.469 Inches
- Trip Delay Time In Seconds Per Rated Continuous Current: 10.000 Minimum At 200 Pct Single Location And 60.000 Maximum At 200 Pct Single Location
- Inclosure Protection Type For Which Designed: Explosion Resistant And Moisture Resistant
- Trip Release Ambient Temp Rating: 25.0 Deg Celsius Nominal Single Location
- Frequency In Hertz: 400.0 Single Location
- Thread Series Designator: Uns
- Terminal Type And Quantity: 2 Screw
- Specification/Standard Data: 96906-Ms24509 Government Standard

Approvals
Test Data Document: 81349-Mil-C-5809 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
