M27500-22TG2T14 - 2 Core Wire - 2x22 AWG Shielded

Marmon Defense, LLC

M27500-22TG2T14 - 2 Core Wire - 2x22 AWG Shielded

P/N: M27500-22TG2T14

Product Code: CBL60C

Certificate Type: Certificate of Conformity (CoC)

5,43 $
M27500-22TG2T14 - Twin Core Screened Avionics Wire - 2 x AWG 22 Shielded - 100Ft.
In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N M27500-22TG2T14
Cable category Multi-Conductor Cables
Number of Conductors 2 Conductors
Shielding T - Single TPC Round
Wire Gauge - AWG AWG 22
Color White
Product Code CBL60C
Product Category Cables & Wires
Certificate Type Certificate of Conformity (CoC)
Country of Manufacture United States
Delivery Usually within 2-3 weeks after placing order
Importer for Serbia Grappolo Aviation Supply Co. Ltd
Manufacturer Marmon Defense, LLC

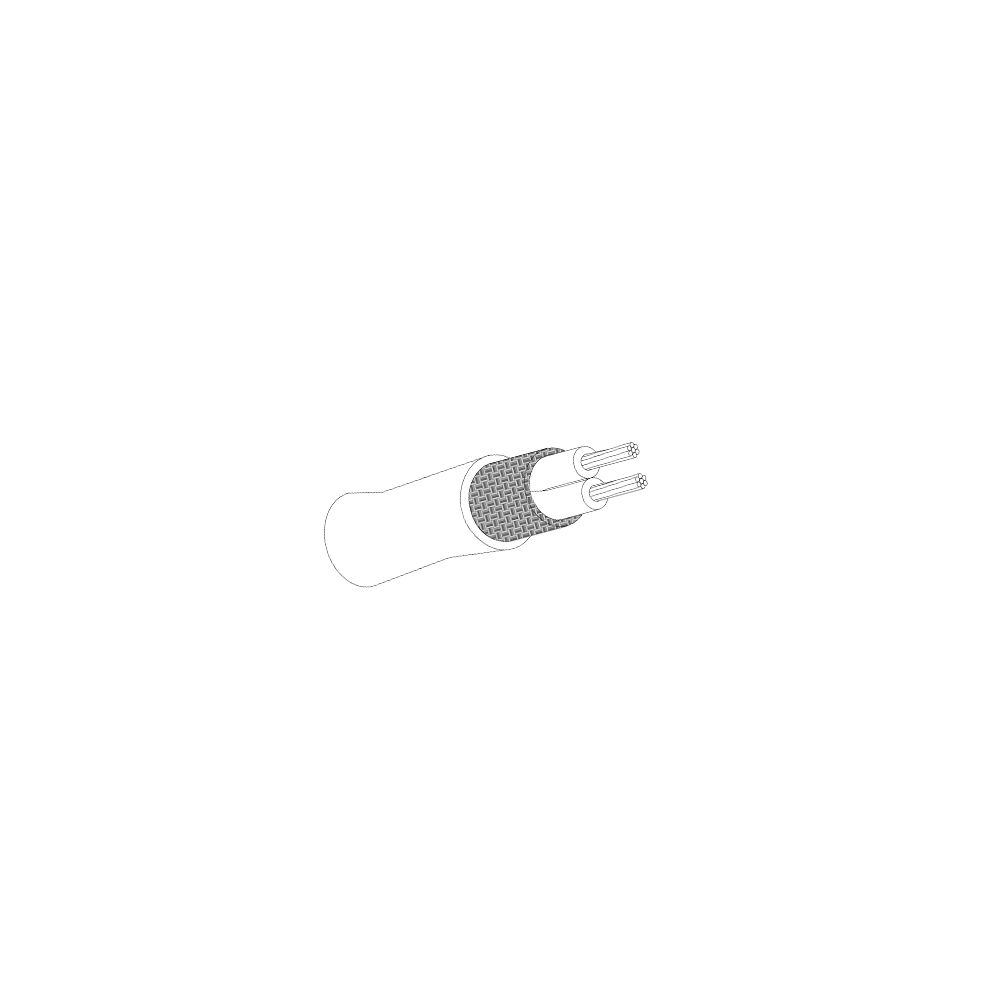

M27500-22TG2T14 22 AWG cable is part of our Mil-Spec line of Wire and Cable. M27500-22TG2T14 is composed of a stranded tin-plated copper conductor, extruded ETFE insulation, and a white extruded ETFE jacket. It also features an overall braided tinned copper shield. This cable has a maximum temperature of 150°C and is rated at 600V. This strong, light-weight cable is primarily used in flight vehicles.

Specifications
- Approx LBS/MFT 12.00
- AWG Size 22
- Cond. Material Tin Plated Copper
- Conductor Stranding 19/34
- Insul. Material Extruded Ethylene Tetrafluoroethylene (ETFE)
- Jacket Material Extruded Ethylene Tetrafluoroethylene (ETFE)
- Max. Temp 150C
- Mil-Spec M27500
- NEMA Type WC 27500
- No. of Cond. 2
- No. of Strands 19
- Nom. Insul. Thick. (in) .010
- Nom. O.D. (in) 0.0430
- Nom. O.D. of Cable (in) .118
- Nom. O.D. of Shield (in) .102
- SAE Spec SAE-AS 22759/18
- Shield Overall Braid Shield
- Shield Coverage 85%
- Shield Material Tinned Copper Braid
- Strand Size 34
- Voltage 600V
