Certifications
• TSO C126
• ETSO 2C126
• COSPAS/SARSAT Approved
• Transport & Industry Canada Approved

Designed Especially for Multi-Use

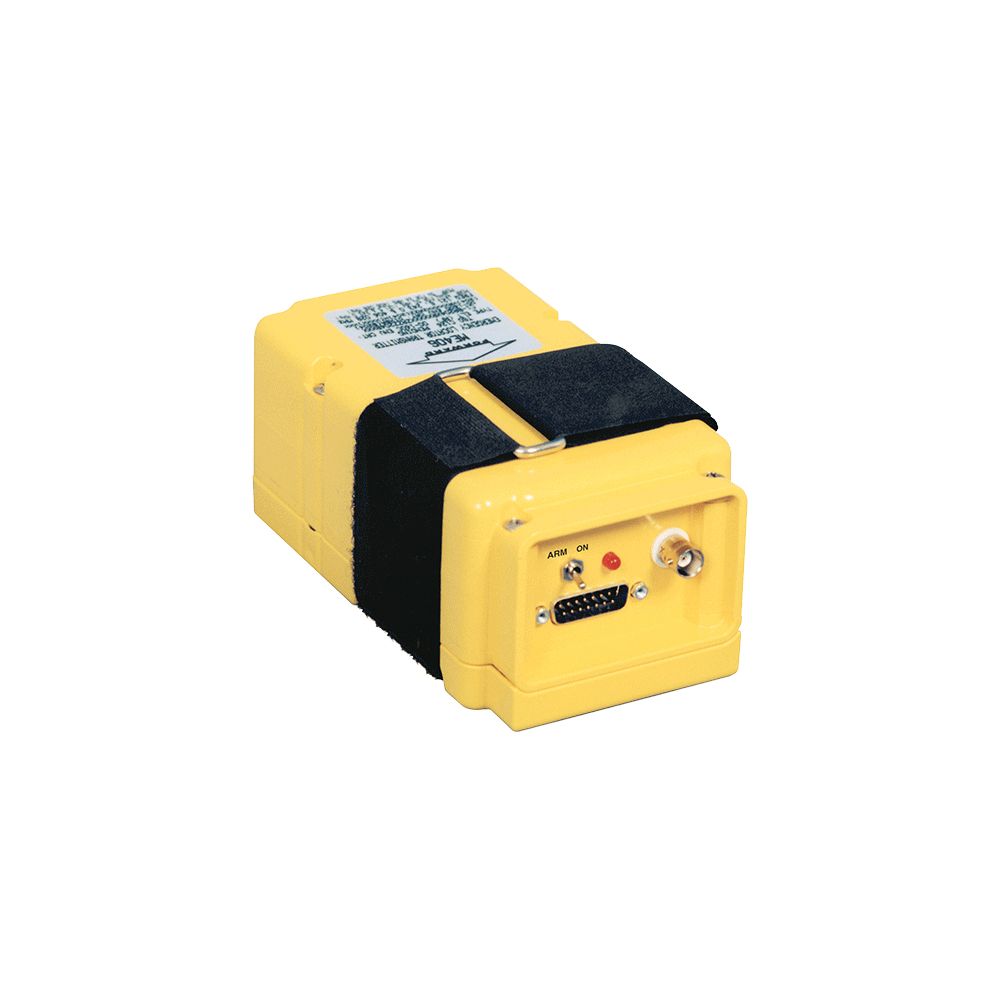

The Artex ME406, a single output ELT, utilizes the same RF output and only one coax cable, to transmit 121.5 and 406 MHz emergency signals to the Cospas/Sarsat satellites. The ELT automatically activates during a crash and transmits a continuous swept tone of 121.5 MHz. During activation, the 406 MHz transmitter sends and encoded 5 watt signal every 50 seconds for 440 milliseconds to alert search and rescue.

Simple Installation
The mounting hardware for the ME406 Series is compatible with all previous models of Artex 406 MHz ELT Products, as well as the ELT200 Series, ACK, Pointer Model 3000 and Narco ELTs. Current owners of Artex 2-frequency TSO C91a ELTs can re-use the remote switch in the cockpit, as well as the wiring harness from the cockpit to the ELT. This greatly reduces installation costs.

Technical Specifications
Operating Frequencies
406 MHz: 5 W (440 ms/ 50 sec) for 24 hours @ -20°C to +55°C 121.5 MHz: 100 mW min for 50 hours @ -20°C to +55°C

Output Connector
BNC Female

Activation
ME406HM: Automatic by 4.5 ft/sec (2.3 G)
Primary G-Switch or 12.5 G (+/- 1 G) 5-Way HM G-Switch or Manual Activation

Battery
6-year Lithium (LiMnO2, solid cathode)
Temperature
Certified to
Operating: -20°C to +55°C
Storage: -55°C to +85°C

Self Test
G-Switch Enabled
406 MHz Power
Antenna/Coax Connection
Low Battery

Remote Control
ON/ARM

Antenna
Rod (110-338) (<350 KTS)

Mounting Hardware
Mounting Tray P/N 452-3034

Other Parts
Coax Cable
Audio Buzzer (to alert ground crews of accidental activations)
Remote Switch

Weights
ELT Transmitter 1.85 lbs (833 g)
Mounting Tray: 3.52 oz (100 g)
Total Weight: 2.05 lbs (933 g)

Measurements
ELT Transmitter with Mounting Hardware Installed:
6.59” (167 mm) L x 2.86” (73 mm) H x 3.69” (94 mm) W

Part Numbers
ME406: 453-6603 (Transmitter Only)
ME406: 455-6607 (with Rod Antenna)
ME406: 455-6605 (with Whip Antenna)
ME406 HM: 453-6604 (Transmitter Only)
