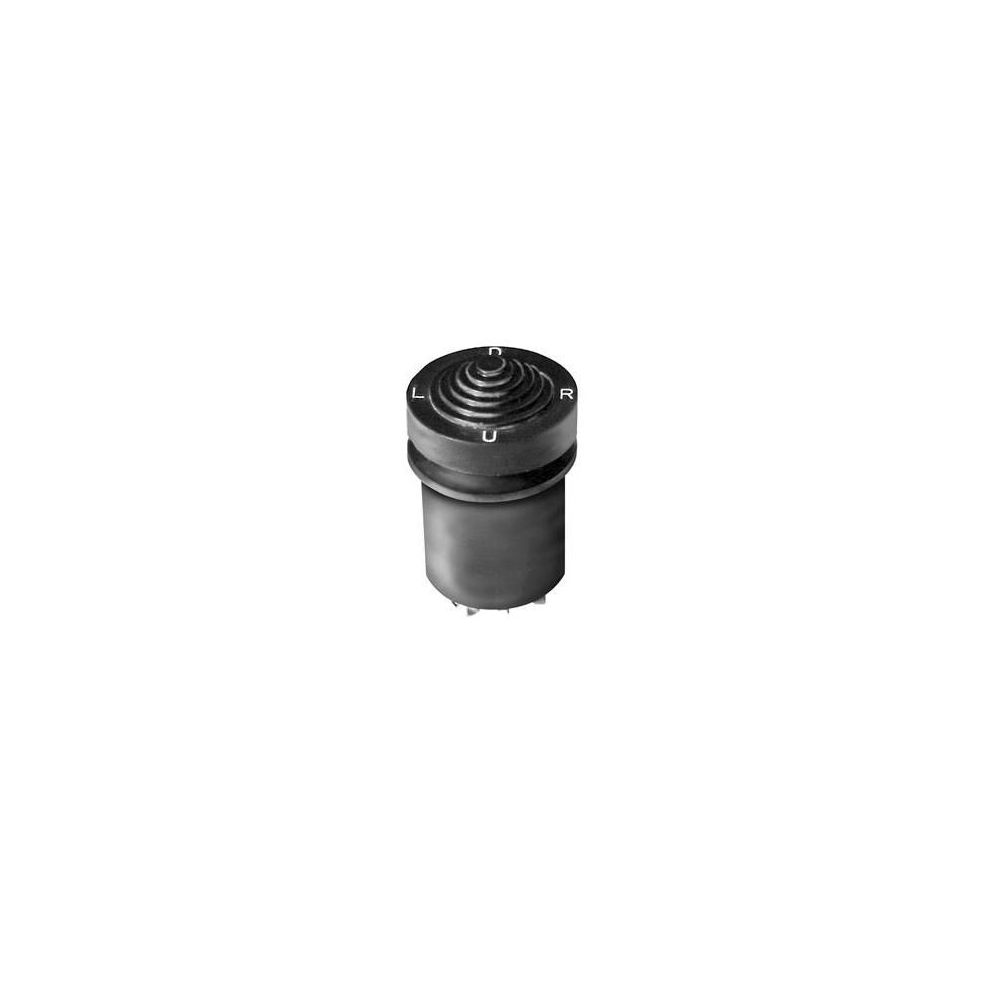

OTTO Mini Trims typically press fit into control grips or panel mounted using versions with an 11/16" threaded case.
Mini Trims are also available with multiple sealing levels to fit all applications.

Features:
- Commercial & Military grade available
- Variety of button styles
- Standard and low level switching
- Dusttight to IP64 & Watertight to IP68S
- Press fit or threaded case styles

ELECTRICAL RATINGS:
- Resistive: 10mA @ 5VDC (low level)
- Inductive: 1A @ 28VDC
- DWV: 1050Vrms
- Low Level: 10mA Resistive @ 5VDC
- Electrical Life: 100,000 cycles 1A Inductive @ 28VDC
- Lever Travel: 15° max from center OFF
- Seal: IP64 or IP68S or MIL-PRF-8805 Design 3
- Operating Temp Range: -55°C to +85°C
- Operating Force: 16 oz +/- 6 oz
- Lever Pivot & Stop Strength: Switch is capable of withstanding a force of 20.0 lbs. applied to the actuating button. The button also withstands 15.0 lbs. minimum pull force.

MATERIALS:
- Case: Aluminum alloy or thermoplastic
- Button: Thermoplastic
- Terminals: Silver over brass
- Gold over silver over brass for low level
- Terminal Hardware: None provided
- Mounting Hardware: Hex nut, tooth lockwasher, panel seal gasket where applicable

ROHS Compliant: Yes - Meets requirements of EC Directives 2002/95/EC and 2002/96/EC.
REACH Compliant: Yes - Meets requirements of EC No. 1907/2006.
