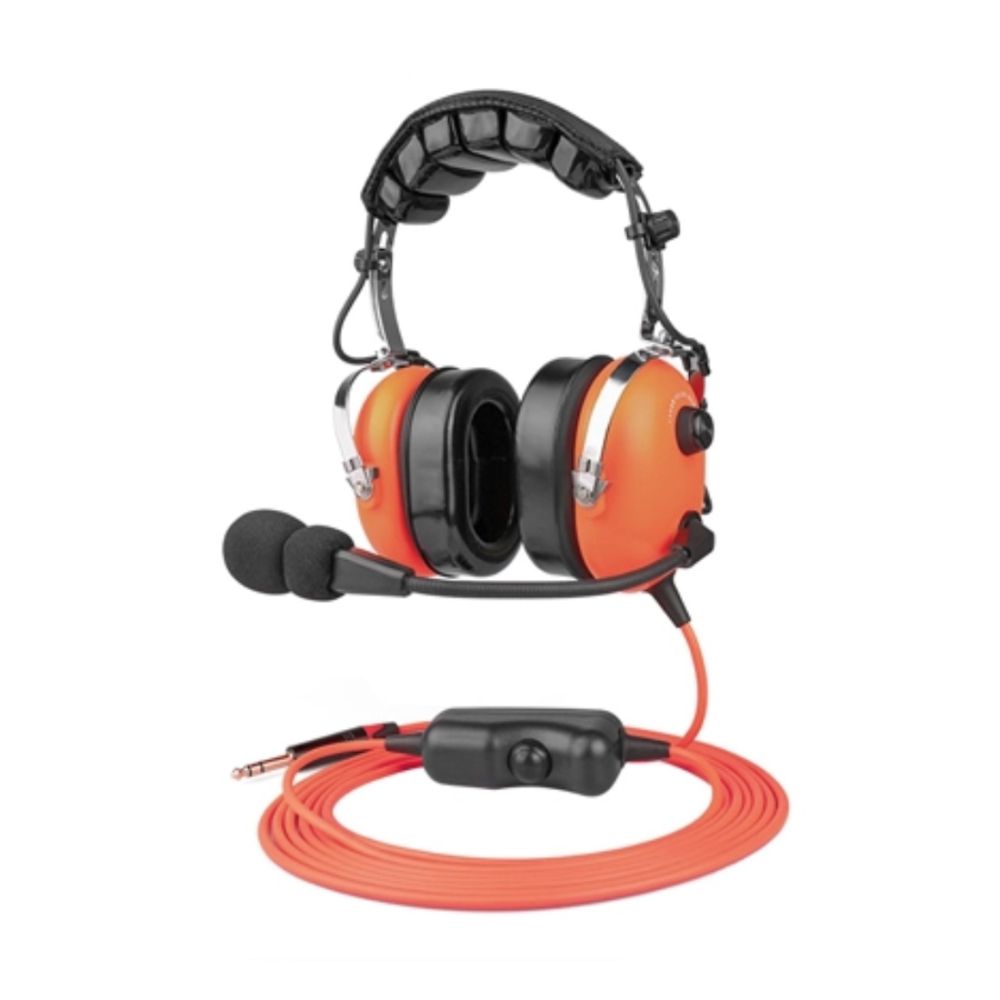

RayTalk - PH-200A - Ground Support headsets - Orange - PJ051

PH-200A Aircraft Ground Crew Headset for use during aircraft pushback with the aircraft flight deck.
33,342.00din. 27,785.00din.
Available 1 pcs.
SKU
PH-200A-PJ051/PNR/OG

PH-200A Aircraft Ground Crew Headset for use during aircraft pushback

During pushback and ground maintenance procédures, when high background noise makes clear communication hard. Pushback operations are dangerous. Clear communications are essentiel for the safety of the Ground Crew and safe movement of aircraft. The Noise Attenuating Aircraft Headset provides hearing protection. As a resuit giving clear communications with the flight deck. This is important during engine start and pushback.

Wire Boom allows for microphone/boom placement on the right or left side. M-1/DC amplified dynamic noise cancelling microphone.
Momentary PTT (Push-to-Talk) switch on cable. Soft head pad and ear seals guarantee exceptional comfort. 33 feet straight cord with(SC-267)Plug to mate with series extension cords.

Corrosion-proof,chrome plated headset/stirrup assembly.
Passive Noise Reduction Ratings (NRR): 23dB.
Over-the-head Stainless Steel Adjustable Band 270 Degreen Rotatable Flexible Boom Microphone
Soft Ear seal



GROUND SUPPORT RayTalk headset helps provide clear, concise ground crew communications and reliable hearing protection during ground support operations.



270 Degree Rotatable Microphone



Microphone Specification

  • Sensitivity Range: -52± 4dB (referto: 0dBSPL at 1kHz with 10 Vdc 150ohms AC load
  • Impedance Max: 150-1000 ohm
  • Frequency: 150-8KHz
  • Current Consumption Max: None
  • Operation Voltage Range: 8-32V (DC
  • Max Sound pressure Level: None

Speakers

Speaker Specification

  • Impedance: 150 Ohm (each 300 Ohm; 150 Ohm when in parallel)
  • Sensitivity: 95dB+- 5dB SPL (1 kHz, 1m Winput on each muzzle side
  • Resonance freq: (FO) 680HZ+20%
  • Frequency respond: 100Hz 8KHz
  • Rated input power: 100mW
  • Maximum input power: 250mW

PTT Switch

Over-The-Head Stainless Steel Adjsutable Band

Comfortable

Half Gel and Half Foam Earpad

More Information
SKU PH-200A-PJ051/PNR/OG
Delivery In stock - Same day dispatch
Manufacturer RayTalk
Plug Type PJ051
Headsets type PNR - Passive Noise Reduction, Ground crew
