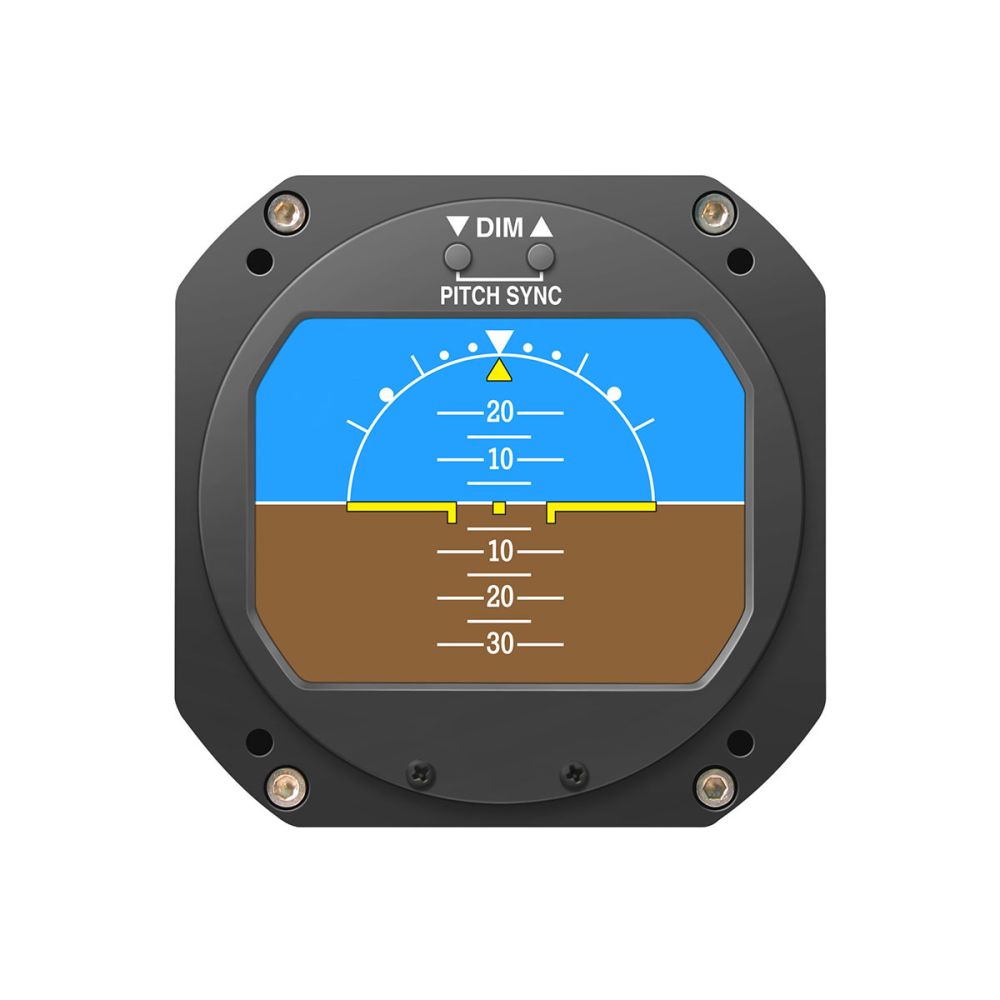

The RCA2610 Series Electric Digital Attitude Indicator is the culmination of more than 10 years of innovation from RC Allen. The RCA2610 comes in two sizes; the RCA2610-3 is the 3-inch version and the RCA1610-2 is the 2-inch version; each fit existing panel cutouts. Both sizes have a standard horizon display that includes an on-screen Digital Slip Indicator and Rate-of-Turn Indicator. As with all RC Allen digital instruments, the RCA2610 has an optional Internal Battery Backup for up to 3 hours of emergency power. The standard Pitch Sync feature allows pilots to instantly synchronize the airplane symbol to the horizon line when flying in a pitch up or pitch down attitude. It is the perfect companion to the RCA1510 Digital Heading Indicator.

RCA2610-P
The RCA2610-P adds Pitot-Static input which ensures constant and accurate speed data for enhanced reliability; especially in high performance aircraft.

The RCA2610-G
This version comes without the Pitch Sync feature with brightness controls only.

The RCA2610-P-G
With Pitot-Static and no Pitch Sync.

The RCA2610 is designed to handle the high vibration environment found on helicopters, and yet, their light weight makes them perfect for soaring. This makes the RCA2610 the most versatile and dependable Digital AI on the market today. With no moving parts to wear out, this instrument will provide years of reliable service; that’s why it includes a full two-year warranty!

The panel tilt angle can be set from 0 to 90 degrees in one-degree increments. Standard models are shipped with 0 degrees tilt but tilt angle must be specified at time of order.

Made in the USA

Features
Pitch Sync Feature
Internal Battery Backup
Sharp Anti-Aliased Screen
Black Anodized Bezel
Fast Response in Roll & Pitch
Vibration Resistant
Easy to install
Multi-Volt plug & fly
Light Weight
2 Year Warranty
FAA/EASA Certified

Specifications
Operating Voltage: 9 to 32VDDC
Current Draw: (14VDC system) 0.20 AMPs MAX, (28VDC system) 0.18 AMPs MAXa
Circuit Breaker Size: 1AMP
Settling Error: 1 Degree Maximum in Roll and Pitch
Operating Temperature Range: -20º to +55º C
Dimensions: Please see specifications document.
FAA Specification Conformance: TSO-C4c, TSO-C113a, DO-160G & DO-178B Level C
EASA Specification Conformance: ETSO-C4c and ETSO-C113a
