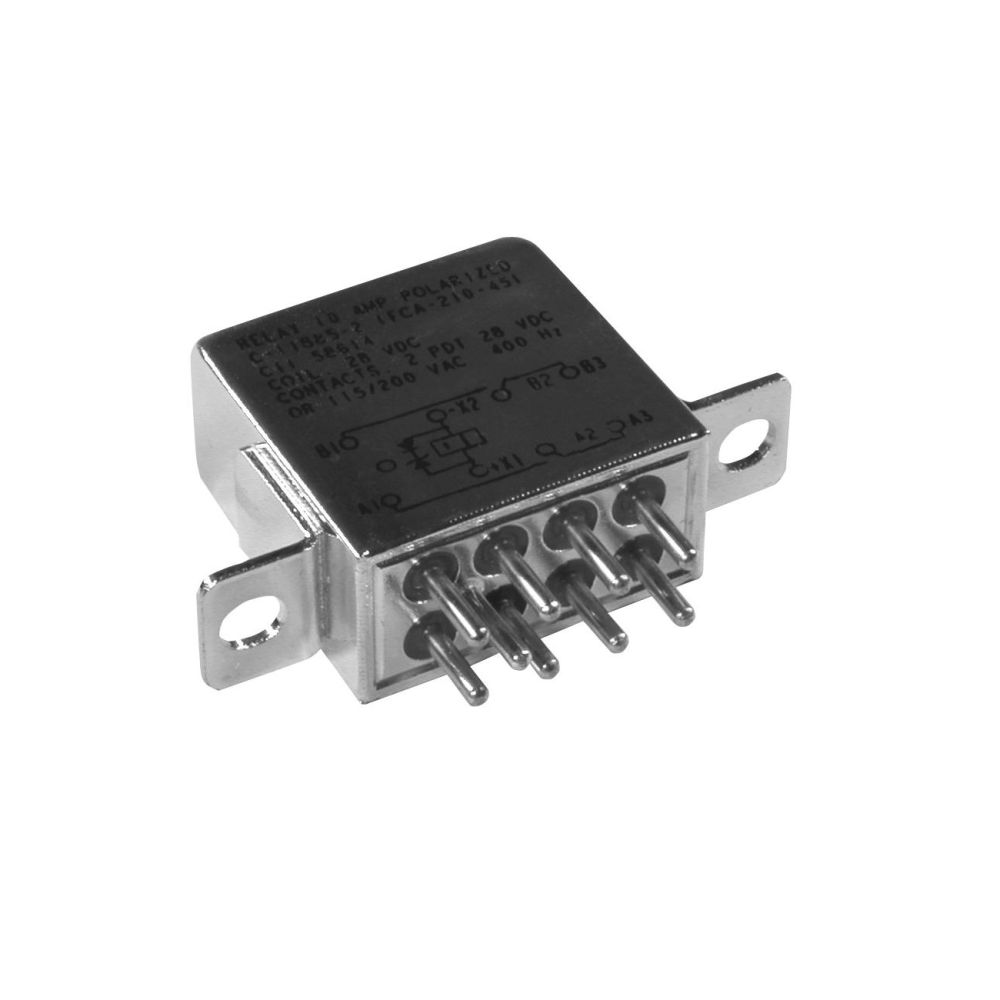

TE - FCA-210-0924M - Power Relay - 28V - 10A - 320 Ohms
TE - FCA-210-0924M - Power Relay - 28V - 10A - 320 Ohms
P/N: FCA-210-0924M
Product Code: REL15C
Certificate Type: Certificate of Conformity (CoC)
Fast Delivery
Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.
Original Parts
We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.
Expert Support
Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.
The Series FCA-210 relay is a polarized single-side stable design, where the flux from a permanent magnet provides the armature holding force in the deactivated state, and its flux path is witched and combined with the coil flux in the operated state.
This results in appreciably increased contact pressure in both states over that of a spring return nonpolar design.
Specification
- Product: Military / Aerospace Relay
- Type: Mid Range Relay
- Contact Termination: Solder Pin
- Relay Contact Form: DPDT (2 Form C)
- Contact Current Rating: 10 A
- Coil Termination: Solder Pin
- Coil Type: Non-Latching
- Coil Voltage: 28 VDC
- Coil Resistance: 320 Ohms
- Switching Voltage: 115 VAC, 28 VDC
- Contact Material: Silver Cadmium Oxide (AgCdO)
- Length: 43.64 mm
- Width: 26.04 mm
- Height: 25.65 mm
