TE Connectivity plc

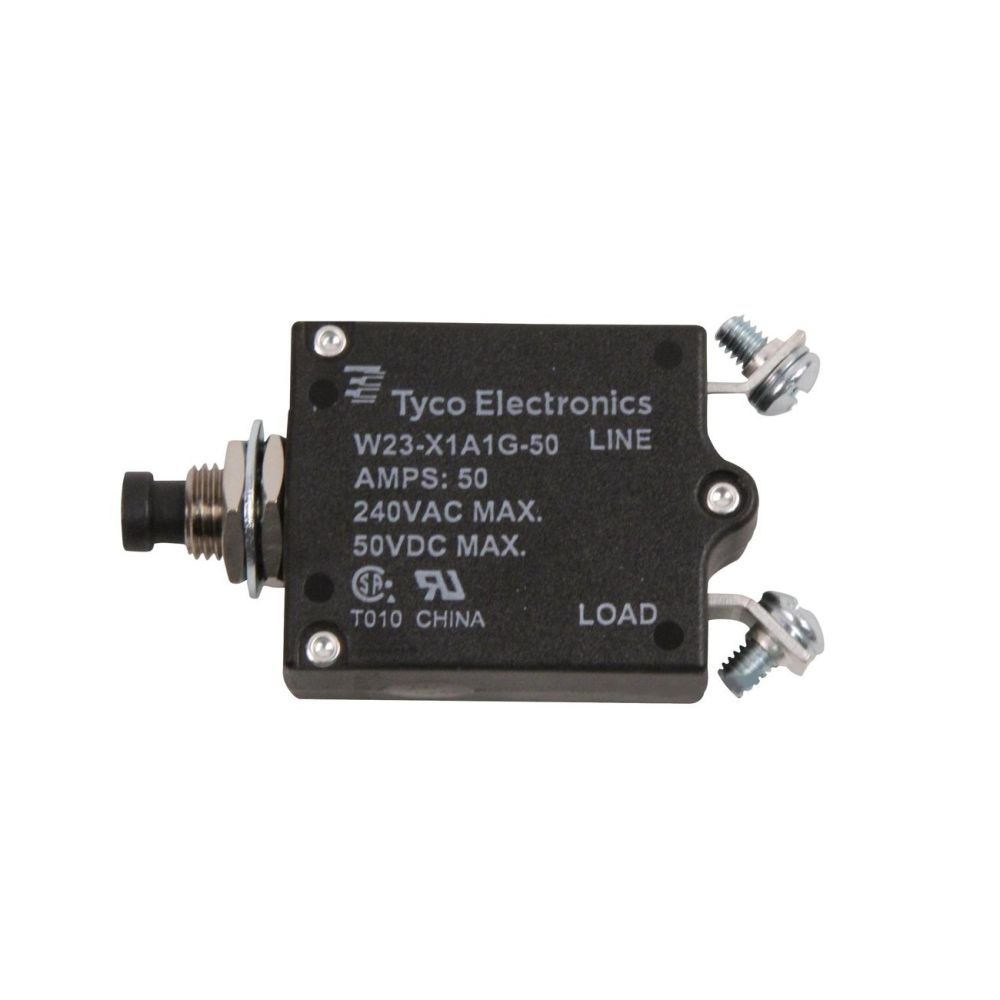

TE - W23-X1A1G-50 - Push/Pull Circuit breaker 50A

P/N: W23-X1A1G-50

Product Code: CB20C

Certificate Type: Certificate of Conformity (CoC)

55,24 $

In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N W23-X1A1G-50

Product Code CB20C

Product Category Circuit Breakers

Certificate Type Certificate of Conformity (CoC)

Country of Manufacture China

Delivery Please add to cart for availability. If no stock delivery term is usually 3-4 weeks.

Importer for Serbia Grappolo Aviation Supply Co. Ltd

Manufacturer TE Connectivity plc

Alternate P/N 454662, 7-1393246-6, CB-2350A

Features & Benefits
* Cannot be reset against overload
* Screw termination
* Trip-free operation
* W23 has visible trip indicator band
* 3/8 in -24 Threaded bushing 0.375 in (9.53 mm) long
* Screw terminals situated 90 deg to each other with #8-32 screws and washers installed

Specifications
- Series: W23
- Type: Thermal
- Current Rating: 50 A
- Voltage Rating AC: 240 VAC
- Voltage Rating DC: 50 VDC
- Number of Poles: 1 Pole
- Actuator Type: Push-Pull
- Minimum Operating Temperature: - 20 C
- Maximum Operating Temperature: + 60 C
- Illuminated: Non-Illuminated
- Packaging: Tray
- Brand: TE Connectivity / P&B
- Compliance: UL
- Height: 35.15 mm
- Length: 40.64 mm
- Mounting Style: Panel Mount
- Product Type: Thermal Circuit Breakers

Technical Information
- CSA Certified and File E69543 Approved
- China RoHS 2 Directive MIIT Order No 32, 2016
- EU ELV Directive 2000/53/EC Compliant
- EU REACH Regulation (EC) No. 1907/2006 Compliant
- UL 1077 Listed
