TheCanKey - FUNNEL CAP for USQ oil cans - with hose and reta

P/N: FUNNEL_CAP

Product Code: ACA5N

Certificate Type: No Certificate

31,20 $

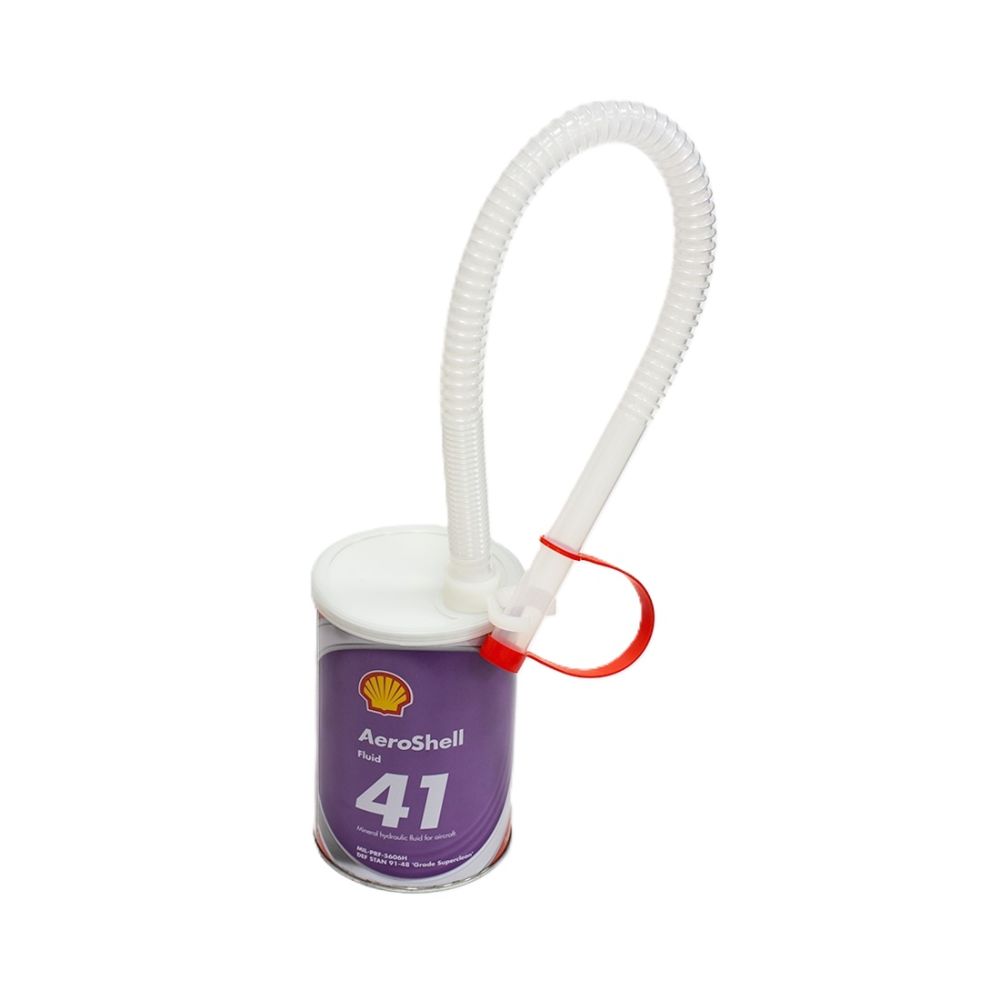

The Quarter Can FunnelCap makes it safe and easy to service aircraft oil and hydraulic systems without spilling of oil and without getting FOD in the oil or oil can.

In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N FUNNEL_CAP

Product Code ACA5N

Product Category Aircraft Accessories

Certificate Type No Certificate

Country of Manufacture United States

Delivery Usually within 2-3 weeks after placing order

Importer for Serbia Grappolo Aviation Supply Co. Ltd

Manufacturer -N/A

The Quarter Can FunnelCap makes it safe and easy to service aircraft oil and hydraulic systems without spilling of oil and without getting FOD in the oil or oil can.

Open half-used oil cans can be stored in the storage room or aircraft without risk of oil leaking out. The flex hose clip ensures a tight seal of the flex hose to the cap stud, and also secures the flex hose to the can to minimize storage space when not in use. The red cap seals the flex hose and ensures a tight seal of the flex hose end.

More flex hoses can be connected to increase the reach.
The flex hose can be removed if desired. The red flex hose cap is then installed on the cover stud and seals to avoid leakage and FOD.

How to use:
Use TheCanKey turbine oil can opener to make a pouring hole in the oil can.
Install the FunnelCap on top of the oil can with slight hand pressure. Position the FunnelCap flex hose over the oil can pouring hole.
Put the end of the FunnelCap flex hose into the oil filler opening.
Pour oil from the oil can with the flex hose at top of horizontal held oil can. This ensures air to vent the oil can.
While pouring oil rotate the oil can slowly until the flex hose is at bottom position.
When the oil can is empty, install the red strap cap on the end of the flex hose.
Leave the FunnelCap installed on the empty oil can. This ensures no contamination with FOD of the FunnelCap and also shows which type of oil residue is in the FunnelCap.

Note: Avoid using different oils with the same FunnelCap.
