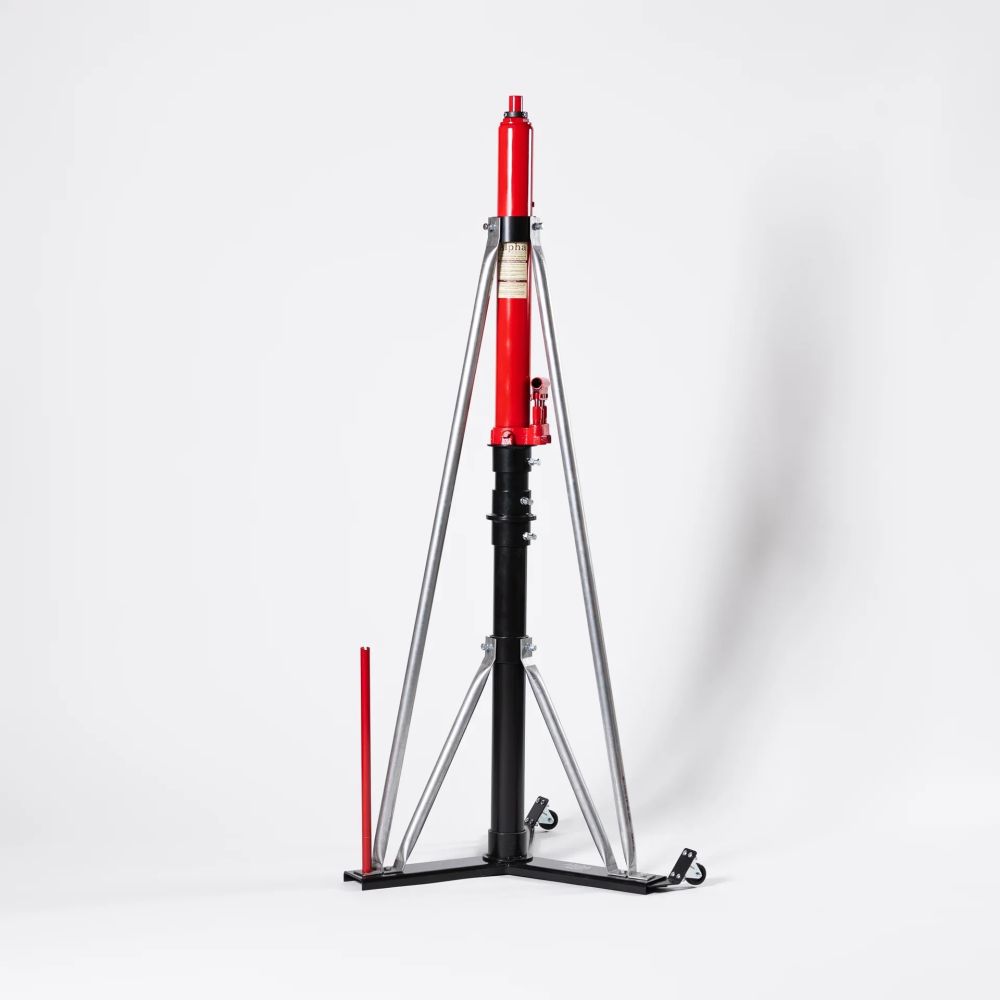

This 8 ton high lift jack features our exclusive 31.5” cylinder. Model 868HLW provides a full 25" of lift and will accommodate the complete line of high wing Cessna aircrafts such as the 172RG, 177RG, 182RG, Cessna 210 and Cessna Skymaster 337. This jack is shipped with adapters that can easily be converted to lower heights eliminating the need for multiple model specific jacks.

Increased jack height creates additional clearance, working room and reduced set up time
Stable and mobile jack that is safe to use and easy to move
Can lift aircraft up to 8-tons or 16,000 lbs

PRODUCT SPECS
- Capacity: 8-Ton (16,000 lbs)
- Lift Height: 25 inches
- Ram Specs: 1-1/4” (1.25”). Machined to be concave to cradle the jack point. A friction safety collar is included to secure the load.

COMMON APPLICATIONS
- Cessna Skyhawk 172RG, Cessna Cardinal 177RG, Cessna Skylane 182RG, Cessna Skymaster 337, Piper PA-46 Malibu Meridian, PA60 Aerostar, Aero Commander (Twin), Lake Amphibian and similar models.
Not recommended for aircraft where a side-load situation may occur.

HEIGHT RANGES
- 32” - 57”: cylinder mounted directly to the base
- 38” - 63”: 6” riser mounted between the base and the cylinder
- 62” - 87”: 30” riser mounted between the base and the cylinder
- 68” - 93”: 30” riser and 6” riser mounted between the base and the cylinder

OTHER PRODUCT BENEFITS
- Jack Height: Increased jack height paired with adapters, creates additional clearance, working room and reduced set up time
- Base: 7-gauge steel, laser cut and robotically welded.
- Wheel Kit: Tilt and go. The wheels do not touch the ground until you tip the jack back
- Assembly: No special tools required.

With this model you will receive:
- Box 1 “A”- Jack cylinder, friction collar, 3.5" centering collar, 24” braces (3), hardware packet
- Box 2 “F” - Jack base, wheel brackets (1 LH / 1 RH), hardware packet including wheels
- Box 3 “H” - 6” riser tube, riser end caps (2), hardware packet
- Box 4 “M” - 30” riser tube, 60” braces (3), riser end caps (2), 3” centering collar, hardware packet
