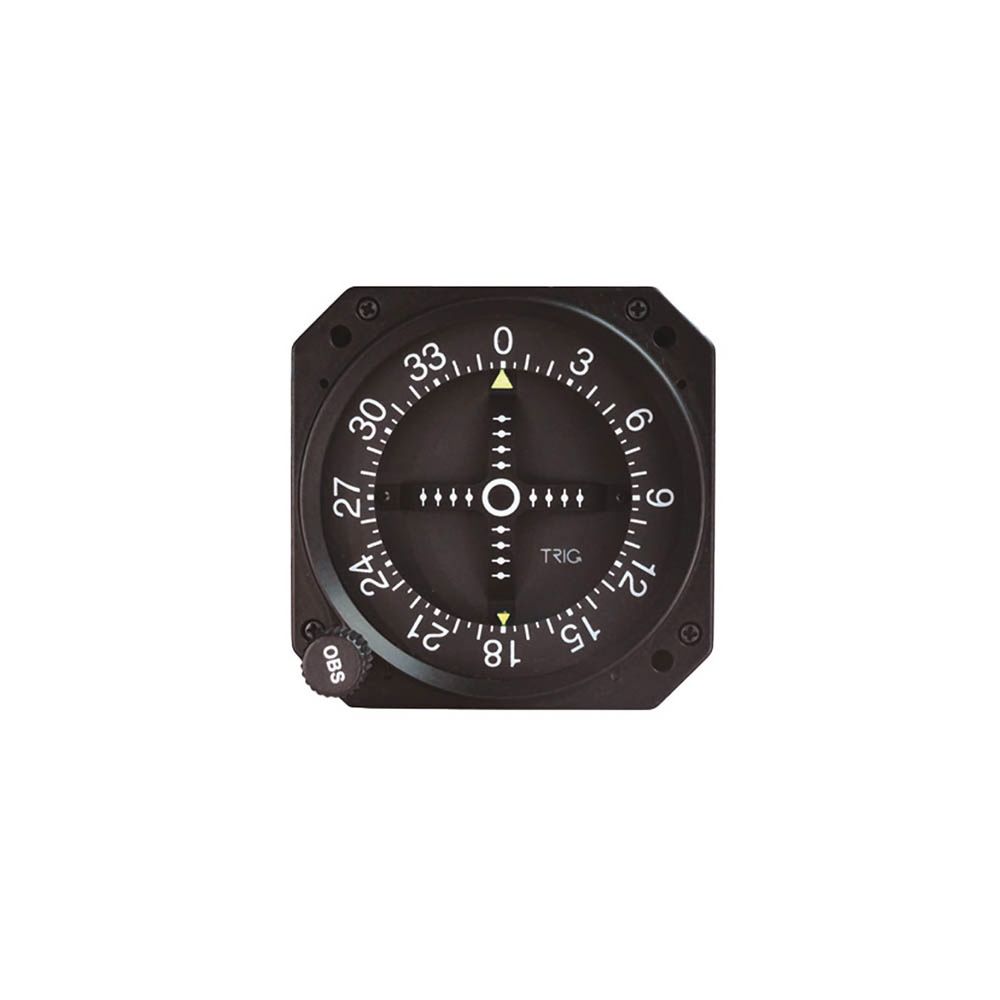

Trig’s TI106 is a 3″ Course Deviation Indicator, ideally matched for the TX56 and TX57. Using the latest generation of indicator technology, solid state actuators provide smooth and dependable navigational indications. Use of LED technology for both flags and backlighting provides a superior display compared to older legacy indicators. The TI106 will support most existing Nav/Com equipment, making it a suitable replacement CDI across general aviation.

Features
FAA TSO-C34e certified CDI
Solid state technology
Superior LED lighting
Optimised for use with Trig Nav/Com units
Lightweight and simple to install
Ideal as a retro-fit CDI option

Specifications
Specification: TI106 – CDI
Type: Certified
Certification: ETSo C34e, C36e, 2C40c
TSO-C34e, C36e, C40c
Compliance: DO-160B/G
Supply voltage: 12-32 VDC
Typical consumption: 0.2Amps
Nominal Transmitter Power: N/A
Operating temperature: -55°C to + 70°C
Cooling requirement: N/A
Weight: 0.59kg
Dimensions (mm): H 82.55mm x W 82.55mm x L 120.65mm
Front panel dimensions (mm): 76mm
Dimensions (inches): H 3.25″ x 3.25″ x 4.75″
Front panel dimensions: 3″

Compatible Trig products
The TI106 is the perfect CDI for the TX56 Nav /Com. It can also be used to replace legacy indicators that have failed, as it shares compatibility with established Nav/Com technology.
