EQUIPMENT LIMITATIONS
The Model 70509 Flasher meets the requirements of FAR 23.1401 and 25.1401. “If certification for night operations is requested, the airplane must have an anti-collision light system that consists of one or more approved anti-collision lights located so that their light will not impair the flight crew members vision or detract from the conspicuity of the position lights.”

MODEL 70509 SERIES

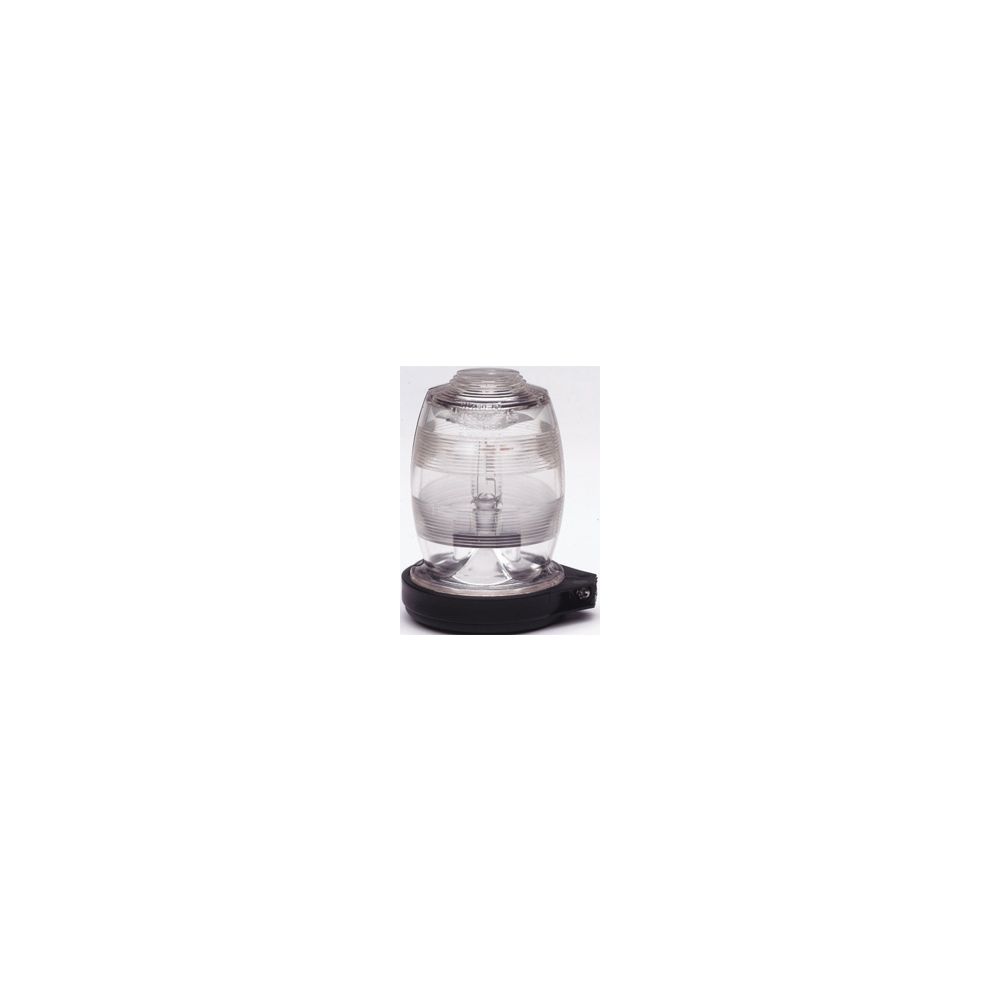

70509 series self-contained halogen flashing anti-collision light with the same mounting pattern as the factory installed beacon on single engine Cessna’s 1967 & later. Available in three different lens colors, Aviation red, aviation white and split aviation red/white. When used in conjunction with the model 50519 mounting adapter, it can replace rotating beacons with the 3-3/4” (95mm) dia. mounting hole.

Note: Not recommended for installation on helicopters or twin engine aircraft.

SPECIFICATIONS:
- Drawing Number: 70509
- Weight: 0.27 lbs. (122gm)
- Height: 3.75” (95mm)
- Diameter: 2.65” (67mm)
- Power Consumption: 2.7 amps @ 14 VDC, 1.3 amps @ 28 VDC
- Description 14 VDC, red lens
- Approvals FAA TSO-C96a

Features a rugged polycarbonate lens with internal optics (patent pending), replaceable halogen lamp and flasher assemblies. Can be installed as a replacement on Cessna aircraft, 1967-1979; on most general aviation aircraft, home builts, and ultralights. A separate flasher power pack is not needed because the unit is completely self-contained! Wt.1Lb
