For a number of years Cleveland offered standard organic & heavy-duty asbestos brake linings for their wheels and brakes.

In January 1988 the two types of linings were discontinued and a single, improved brake lining was introduced. The prices are higher than the older types of linings but performance and durability are greatly improved. Replace worn brake linings with new original Cleveland parts for positive braking action. Advise make, year and model number of aircraft, and order number of linings you require plus required number of rivets.

Most light aircraft take 2 linings per wheel. See tool section for economical rivet tool.
Most brake linings include rivets, few are sold as pad only.

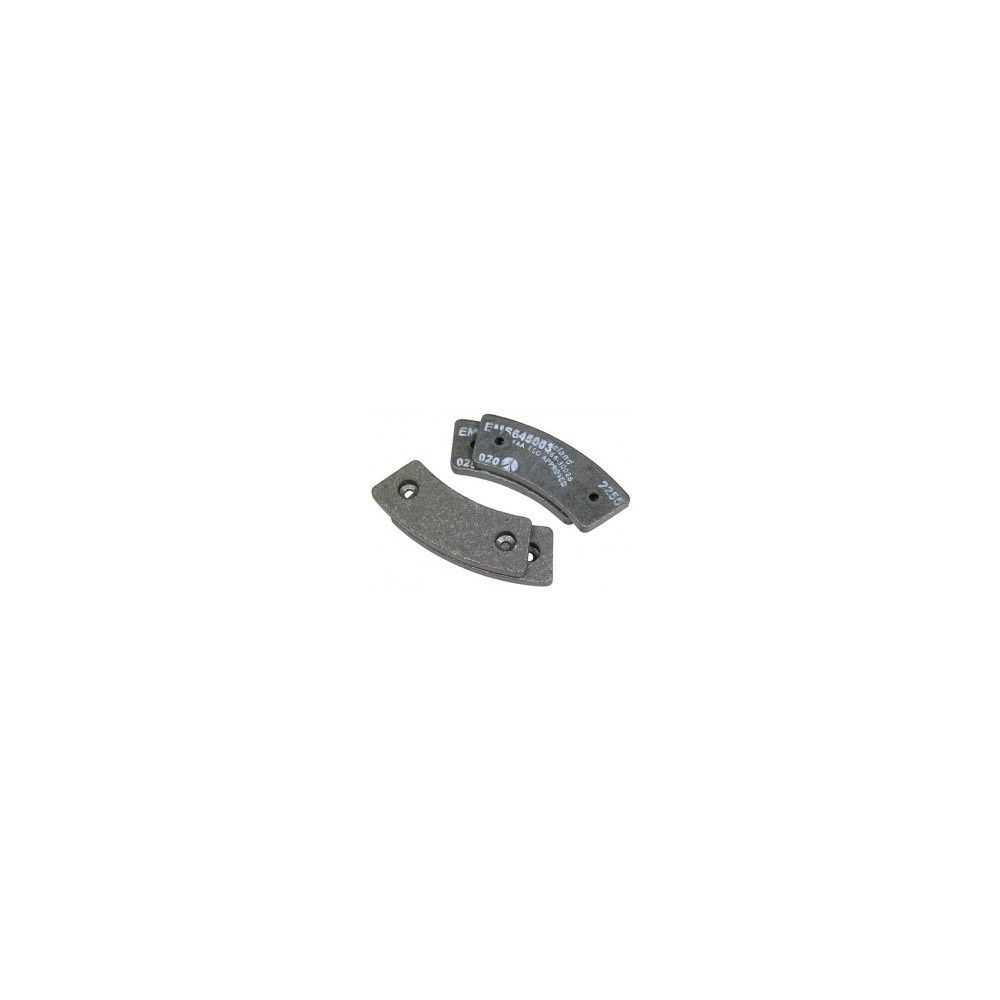

Replaces: McCauley PN. B30026, Cleveland PN. 066-10900, RAPCO RA066-30026

The Cleveland 66-30026 (066-30026) Brake Pad fits the following aircrafts:

Cessna:
150 (1971 to 1973) equipped with c-30018 Brake Assembly
152 (1971 to 1973) equipped with c-30018 Brake Assembly
A150 (1971 to 1973) equipped with c-30018 Brake Assembly
F150 (1973 to 1976) equipped with c-30018 Brake Assembly
F152 (1973 to 1976) equipped with c-30018 Brake Assembly
FA152 (Reims) (Aircraft equipped with McCauley) (1976 to 1977) equipped with c-30018-4 Brake Assembly
FA152 (Reims) (Aircraft equipped with McCauley) (1977) equipped with c-30018-5 Brake Assembly
FA152 (Reims) (Aircraft equipped with McCauley) (1978 to 1981) equipped with c-30018-5 Brake Assembly
FA152 (Reims) (Aircraft equipped with McCauley) (1982 and on) equipped with c-30764-5 Brake Assembly
172 (1971 to 1973) equipped with c-30018-2 Brake Assembly
R172 (1971 to 1973) equipped with c-30018-2 Brake Assembly
F172 (Reims)(1973) equipped with c-30118-2 Brake Assembly
FR172 (Reims) (Aircraft equipped with McCauley) (1973 to 1976) equipped with c-30018-2 Brake Assembly
FR172 (Reims) (Aircraft equipped with McCauley) (1977 and on) equipped with c-30018-6 Brake Assembly
172RG Cutglass (1980 to 1981) equipped with c-30018-6 Brake Assembly
172RG Cutglass (1982 and on) equipped with c-30764-5 Brake Assembly
177RG (Aircraft equipped with McCauley) (1975-1976) equipped with c-30018-4 Brake Assembly
177RG (Reims) (Aircraft equipped with McCauley) (1977) equipped with c-30018-5 Brake Assembly
F177RG (Aircraft equipped with McCauley) (1975-1976) equipped with c-30018-4 Brake Assembly
F177RG (Reims) (Aircraft equipped with McCauley) (1977) equipped with c-30018-5 Brake Assembly
177 (Aircraft equipped with McCauley) (1975-1976) equipped with c-30018-4 Brake Assembly
177 (Reims) (Aircraft equipped with McCauley) (1977) equipped with c-30018-5 Brake Assembly
177RG (Aircraft equipped with McCauley) (1975-1976) equipped with c-30018-4 Brake Assembly
177RG (Reims) (Aircraft equipped with McCauley) (1977) equipped with c-30018-5 Brake Assembly
F177RG (Reims) (Aircraft equipped with McCauley) (1975-1976) equipped with c-30018-4 Brake Assembly
F177RG (Reims) (Aircraft equipped with McCauley) (1977) equipped with c-30018-5 Brake Assembly
180 Series Skywagon (Aircraft equipped with McCauley) (1973 to 1974) equipped with c-30118-1 or c-30118-2 Brake Assembly
180 Series Skywagon (Aircraft equipped with McCauley) (1974 and on) equipped with c-30118-5 or c-30118-6 Brake Assembly
182 Series (1976 to 1977) equipped with c-30018-4 Brake Assembly
182 Series (1978 to 1980) equipped with c-30018-5 Brake Assembly
F182 (Reims) (Aircraft equipped with McCauley) equipped with c-30018-4 Brake Assembly
F182 (Reims) (Aircraft equipped with McCauley) equipped with c-30018-5 Brake Assembly
T182 (1981 and on) equipped with c-30118-3 or c-30118-4 Brake Assembly
185 Series Skywagon (Aircraft equipped with McCauley) (1973 to 1974) equipped with c-30118-1 or c-30118-2 Brake Assembly
185 Series Skywagon (Aircraft equipped with McCauley) (1973 and on) equipped with c-30118-5 or c-30118-6 Brake Assembly
206 Series (Aircraft equipped with McCauley) (1974 and on) equipped with d-30118-3 or d-30118-4 Brake Assembly
206 Series (Aircraft equipped with McCauley) (1974 and on) equipped with d-30118-5 or d-30118-6 Brake Assembly
210 Series (Aircraft Equipped with McCauley) (1974 and on) equipped with d-30118-3 or d-30118-4 Brake Assembly
