CHAMPION AEROSPACE, INC. AVIATION CATALOG AV-14

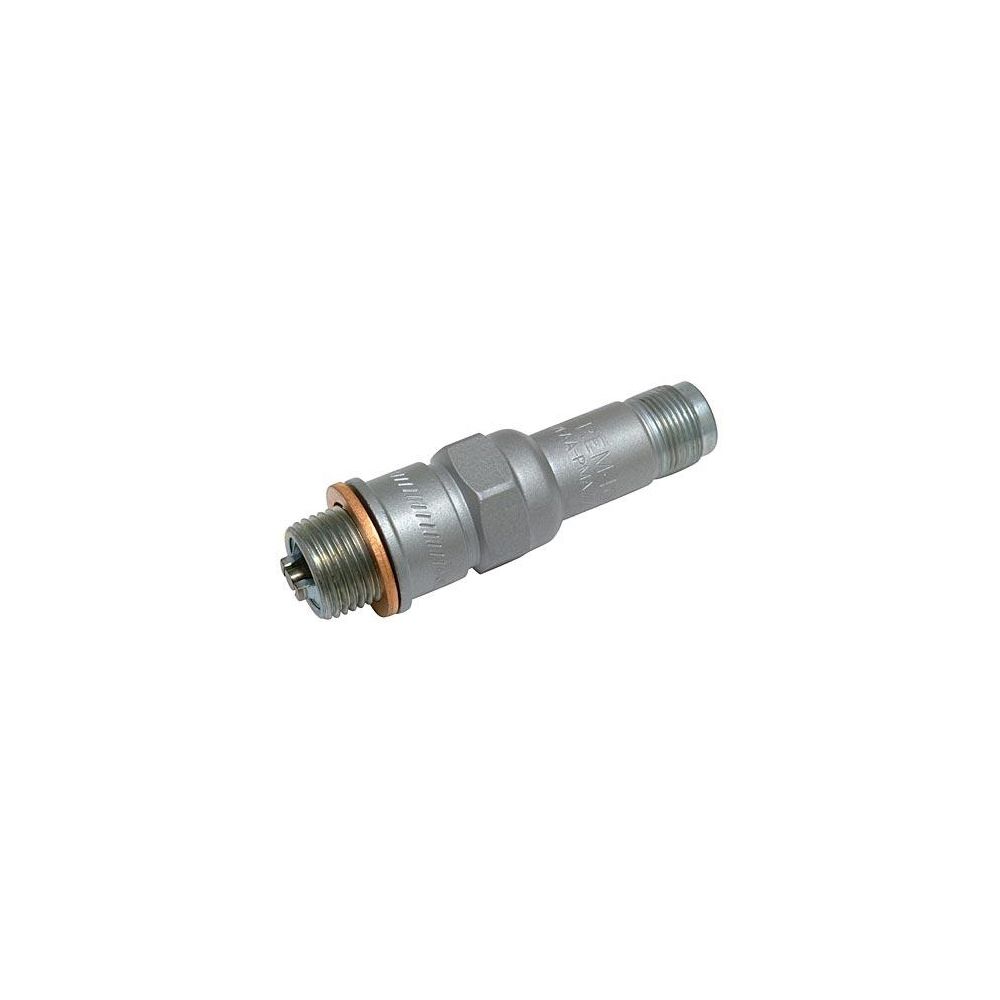

Champion RHB32E Standard Electrode Aviation Spark Plug, thread size: 18 mm, reach: 13/16"/2.06 cm, shielded threading: 3/4"-20, standard Electrode: two prong, plug gap: .016"-.021"/0.41-0.53 mm.

Champion Spark Plugs have been the first choice of aviation technicians (aircraft maintenance technicians/ aviation maintenance technicians) since the very earliest days of aviation. When you ask a tech what spark plug they prefer and rely upon, they will most likely say Champion.

Advanced-engineered Champion Aerospace spark plugs are designed for the critical difference in performance, far beyond the ordinary. Champion spark plugs stand up to high temperatures, pressures, and deposits.

Longer lasting than platinum spark plugs, Iridium “S” plugs resist lead attack and provide better scavenging than standard platinum plug designs. Iridium “S” offers exceptional performance, even under the most demanding conditions.

As the preferred supplier of spark plugs for general aviation aircraft, Champion Aerospace designs, engineers and manufactures piston-engine ignition components for both OEM and aftermarket applications. Every spark plug manufactured has built-in design advantages that assure longer life and greater reliability.

Features:

Two layers of corrosion protection. Nickel plating and high temperature epoxy paint.
Fired glass seal provides positive retention of center wire and prevents gas leakage.
Plated threads prevents seizing.
Nickel alloy electrodes provide excellent resistance to spark and heat erosion.
Plated threads prevents seizing.
Fired in suppressor seal resistor prevents wear from voltage drain for prolonged plug life.
Ceramic insulator has excellent thermal properties to resist cracking.

NOTE:
Spark plugs are shipped in factory sealed plastic cases. Opened spark plug cases make the spark plugs non-returnable. Please do not open any spark plug until you are sure you have received the correct spark plugs for your application.

SPARK PLUG P/N Description

1. Resistor
None - No Resistor
R - Mil-Spec. Resistor-Erosion protection

2. Barrel Style
None - Unshielded
E - Shielded 5/8"-24 Thread
H - Shielded 3/4"-20 Thread (All Weather Plug)
V - M18X1 - Metric

3. Mounting Thread - Reach - Hex Size
B - 18 mm - 13/16” (2.06 cm) - 7/8” (2.22 cm)
M - 18 mm - 1/2” (1.27 cm) - 7/8” (2.22 cm)
J - 14 mm - 3/8” (.095 cm) - 13/16” (2.06 cm)
L - 14 mm - 1/2” (1.27 cm) - 13/16” (2.06 cm)
U - 18 mm - 1-1/8” (2.85 cm) - 7/8” (2.22 cm)
N - 14 mm - 3/4” (1.90 cm) - 13/16” (2.06 cm)

4. Heat Rating Position
Low number - Cold (26)
High number - Hot (50)

5. Electrode Design
None - Conventional Single
E - Two Electrode Massive
N - Four Electrode Massive
S - Single Electrode (Iridium)
B - Twin Electrodes(Nickel)
R - Push-wire - 90° to Center
Y - Projected Core Nose
P - Two Electrode (Platinum)
W - Two Electrode (Iridium)
