CHAMPION AEROSPACE, INC. AVIATION CATALOG AV-14

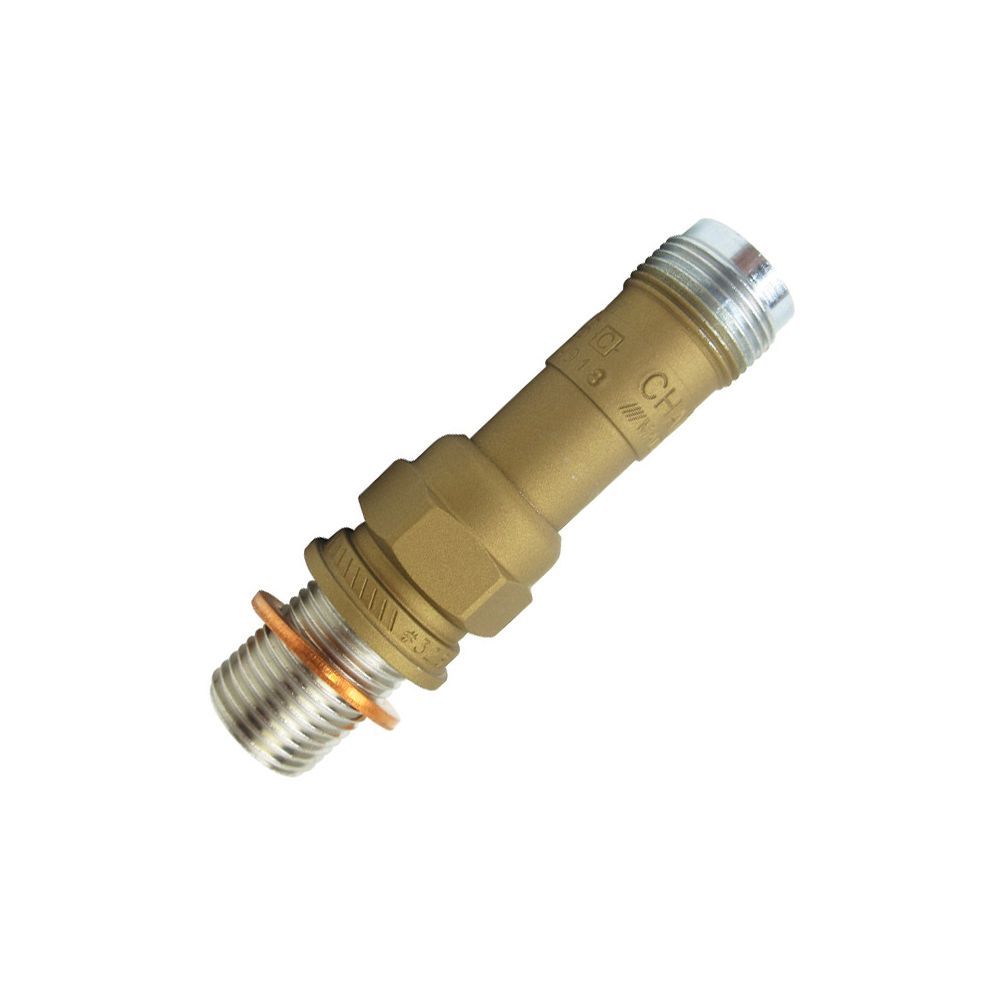

Champion RHB32S Iridium Electrode Spark Plug, 3/4"-20 Thread

Longer lasting than platinum spark plugs, Iridium "S" fine wire plugs resist lead attack better and provide better scavenging than standard platinum spark plug designs, resulting in exceptional performance, even under the most demanding conditions. Plug Electrodes are constructed of highly corrosion resistant iridium.

RHB32S champion spark plug is engineered for optimal combustion efficiency. The Single-Fine Wire Iridium Electrode ensures a consistent and powerful spark, resulting in improved fuel efficiency, reduced emissions, and enhanced engine performance. The 3/4-20 inches shielding thread provides a secure and reliable fit, preventing any spark energy loss or leakage. RHB32S spark plug is built to withstand extreme temperatures and pressures, this spark plug offers exceptional durability and reliability. Longer lasting than platinum spark plugs, Iridium S plugs resist lead attack and provide better scavenging than standard platinum plug designs. Iridium S offers exceptional performance, even under the most demanding conditions.

FEATURES
• Two layers of corrosion protection. Nickel plating and high temperature epoxy paint
• Fired glass seal provides positive retention of center wire and prevents gas leakage
• Nickel alloy electrodes provide excellent resistance to spark and heat erosion
• Plated threads prevent seizing

BENEFITS
• Fired in suppressor seal resistor prevents wear from voltage drain for prolonged plug life
• Ceramic insulator has excellent thermal properties that resist cracking

SPECIFICATIONS
• Thread size: 18mm
•  Reach: 13/16 Inches /2.06cm
•  Shielding thread: 3/4-20 inches
•  Standard electrode: Single
•  Fine wire electrode: Iridium
•  Plug gap: .016 inches-.021 inches/0.41-0.53mm
•  Suitable For Use With: Fixed Wing Aircraft
