RayTalk - PH-HM200Q - Helmet L - White/Yellow - Twin Plug

RayTalk - PH-HM200Q - Helmet L - White/Yellow - Twin Plug
P/N: PH-HM200Q-GA/PNR/G
Product Code: HDS83N
Certificate Type: No Certificate
Fast Delivery
Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.
Original Parts
We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.
Expert Support
Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

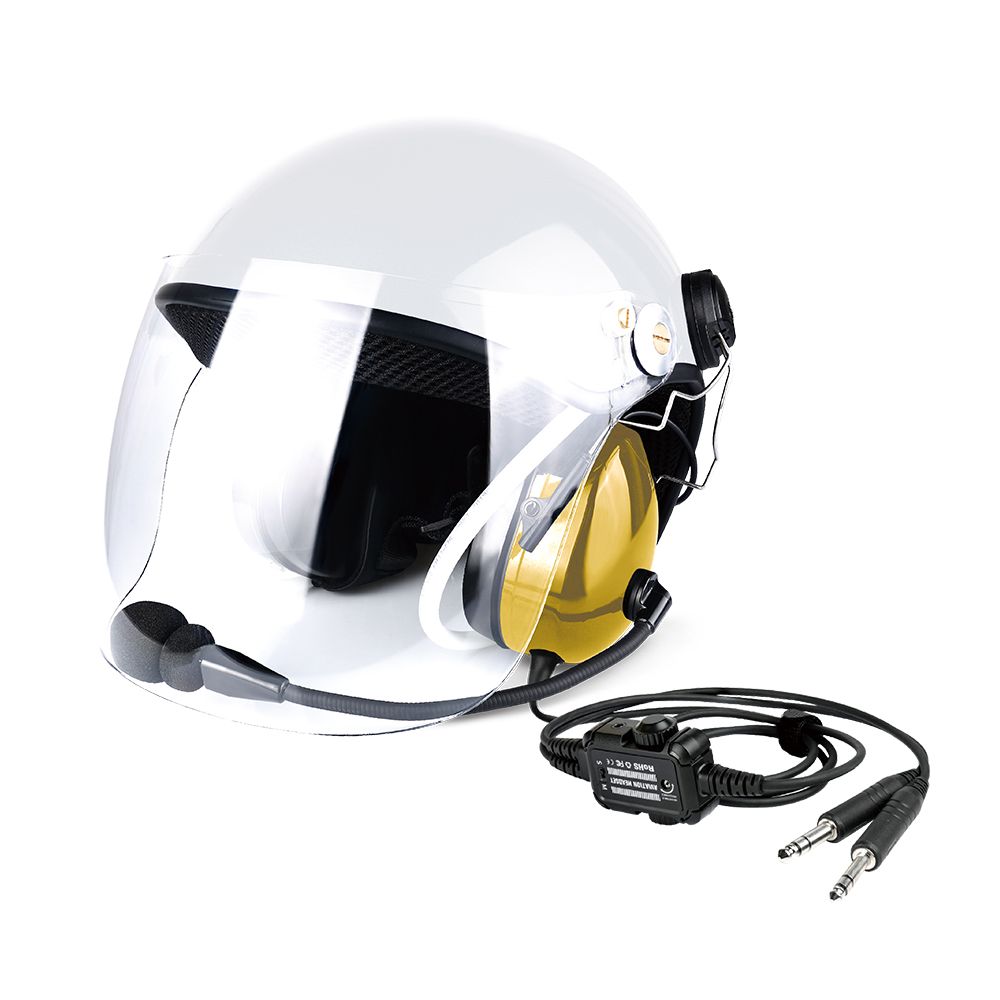

PH-HM200Q Aviation headset with helmet
The comfort liner is fit to each person's head size. The outer long visor provides full facial protection and locks onto an impact chin bar. The long visor, chin bar and wind deflector provide impact protection and microphone deflection protection from the elements for perfect communications. The fully adjustable headset provides a comfortable ear seal and high sound attenuation.
Aviation headset features the super soft head pad and extreamly comfortable gel ear seals, also features electret noise-cancelling microphone and 23 dB Noise Reduction Rating (NRR) for unrivaled clarity of communications, as well as a durable molded cord assembly that will easily hold up to the demands of the cockpit


270 Degree Rotatable Microphone
Microphone Specification
- Sensitivity Range: -46± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz
- Impedance Max: 2.2K2 1kHz (RL=2.2KΩ)
- Frequency: 20-20KHz
- Current Consumption Max: Vs=2.0V RL=2.2KΩ MAX: 500 µA
- Operation Voltage Range: 2.5-10V (DC
- Max Sound pressure Level: 110dB S.P.L
Speakers
Speaker Specification
- Impedance: 300Ω+15%@1KHz
- Sensitivity: 119dB+10%/1Watt O.5Meter
- Resonance freq: (FO) 680HZ+20%
- Frequency respond: F-5KHz
- Rated input power: 1.0W
- Maximum input power: 1.5W




GA Dual Plug
PJ - 055 & PJ - 068


Comfortable
Half Gel and Half Foam Earpad
