Comant Industries

Comant - CI-158C - V Dipole VOR/LOC/GS antenna

P/N: CI-158C

Product Code: ANT40F

Certificate Type: FAA 8130-3

648,60 $

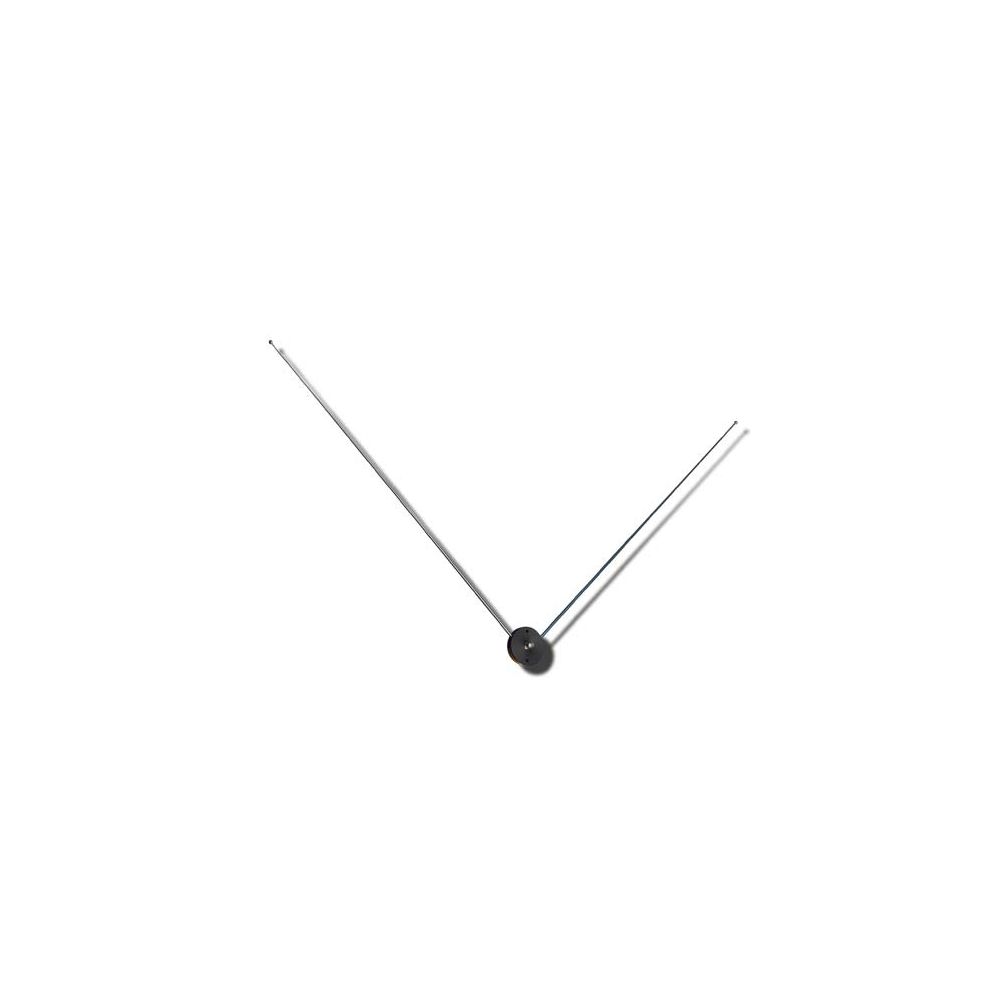

“V” Dipole VOR/LOC/GS antenna withdetachable elements mounts on top of vertical stabilizer for most single engine general aviation aircraft.

In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N CI-158C

Delivery Please add to cart for availability. If no stock delivery term is usually 3-4 weeks.

Product Code ANT40F

Certificate Type FAA 8130-3

Country of Manufacture United States

Product Category Antennas

Importer for Serbia Grappolo Aviation Supply Co. Ltd

Manufacturer Comant Industries

“V” Dipole VOR/LOC/GS antenna with
detachable elements mounts on top of vertical stabilizer for most single engine general aviation aircraft. RF design similar to the CI 157P. Integral ferrite balun provides for higher radiation efficiency. Detachable elements result in a significantly smaller shipping and storage carton than fixed element versions.

Not approved for helicopter installations.

Electrical

Frequency: 108-118 MHz (VOR/LOC); 29-335 MHz (GS)
VSWR: 3.0:1 Max. 108-118 MHz (VOR/LOC);
3.0:1 Max. 329-335 MHz (GS)
Polarization: Horizontal
Radiation Pattern: Dipole
Impedance RF: 50 Ohms Nominal
Power RF: Receive Only

Mechanical

Weight: 0.35 lbs. Maximum
Height: 17 5/8 inches Maximum
Finish: Black housing / Stainless steel whips
Connector: BNC

Environmental

Temperature: -55 C to +85 C
Altitude: 50,000 ft
Airspeed: 250 Knots TAS @ 25,000 ft.

Federal Specifications

FAA TSO: C34e, C36e, C40c
RTCA MOPS: DO-192, DO-195, DO-196
RTCA Environmental: DO-160
