Comant Industries

Comant - CI-205-3 - VOR-LOC-GS antenna set

P/N: CI-205-3

Product Code: ANT9F

Certificate Type: FAA 8130-3

3.316,82 $

VOR/ Glide Slope High Performance Navigation Antenna Set is designed for mounting on the aircraft vertical stabilizer or helicopter tail boom.

In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N CI-205-3

Delivery Usually within 3-4 weeks after placing order

Product Code ANT9F

Certificate Type FAA 8130-3

Country of Manufacture United States

Product Category Antennas

Importer for Serbia Grappolo Aviation Supply Co. Ltd

Manufacturer Comant Industries

VOR/ Glide Slope High Performance Navigation Antenna Set is designed for mounting on the aircraft vertical stabilizer or helicopter tail boom. Features low weight/ drag, tubular structure to minimize helicopter rotor "down wash" forces, wide band/high efficiency electrical performance and DC grounding for lightning protection.

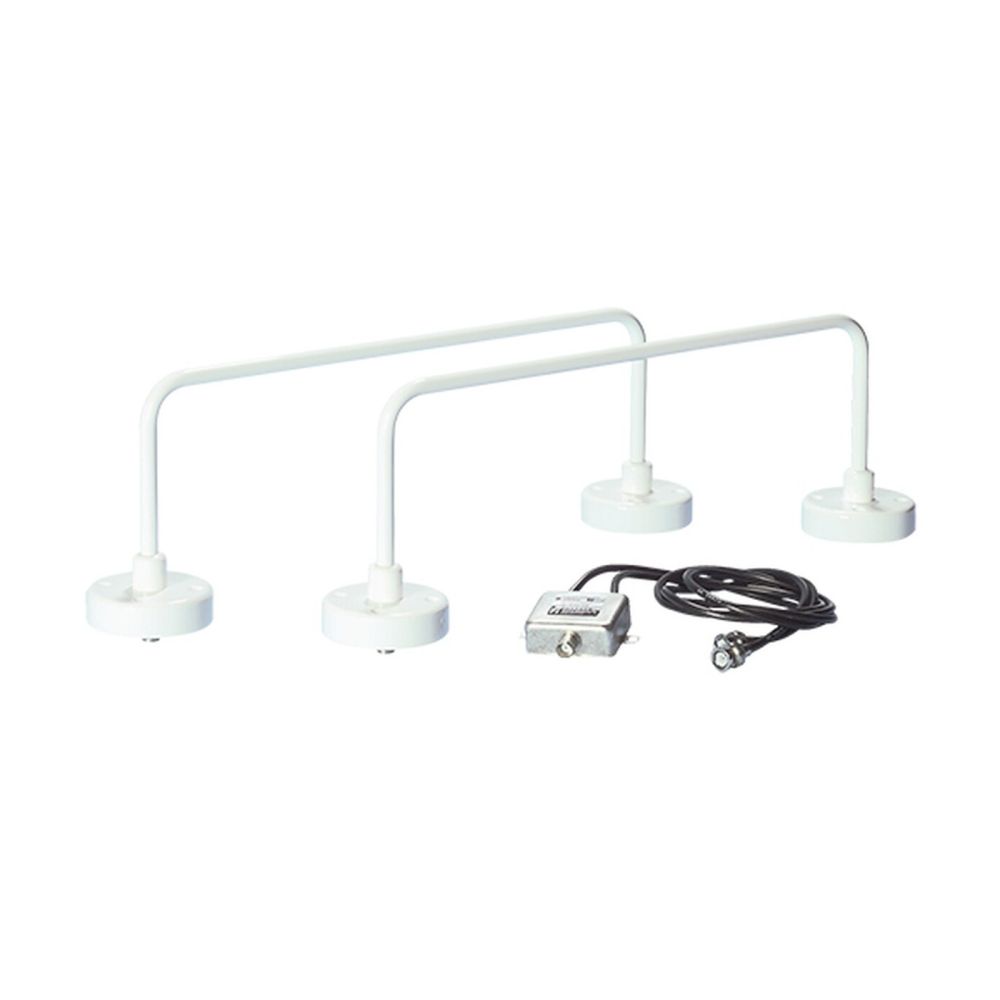

Set includes a pair (2) of "towel bar" sensor elements each with a single BNC output connector and a one-piece dual coax interconnect signal combiner harness with a single BNC connector output. Provides for a single cable routing to the avionics location.

Frequency 108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope)

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-00532 separately.

Applications
Single and twin engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.

Approved for light helicopter installations.

Specifications

Electrical
Frequency:
108-118 MHz (VOR /LOC)
329-335 MHz (Glide Slope)
VSWR:
5.0:1 108-118 MHz (VOR /LOC)
5.0:1 329-335 MHz (Glide Slope)
Polarization: Horizontal
Radiation Pattern: Omnidirectional
Impedance: 50 Ohms Nominal
Power: Receive Only

Mechanical
Weight: 1.75 lb.
Height: 5.25 in.
Material: Derlin Mounts / Aluminum "Towel Bar"
Finish: Polyurethane Enamel
Connector: BNC (Female)

Enviromental
Temperature: -55C- +85C
Altitude: 50,000 ft
Airspeed: 300 Knots TAS @25,000 ft.

Federal Specifications
RTCA Environmental: DO-160C
FAA TSO: C34c, C36c, C40c
RTCA MOPS: DO-196
