Comant Industries

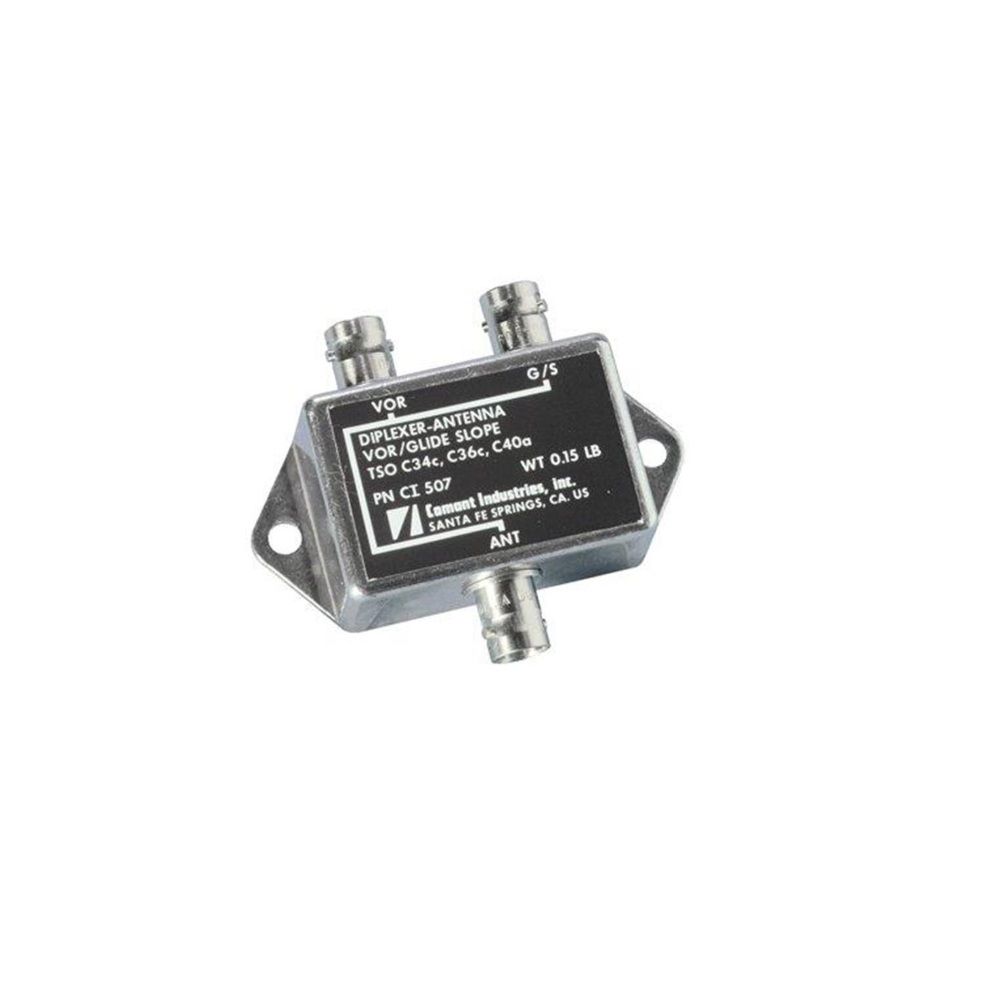

Comant - CI-507 - Coupler - Diplexer VOR G-S

P/N: CI-507

Product Code: ANT15F

Certificate Type: FAA 8130-3

306,16 $

Single VOR / single glide slope diplexer allows the operation of one VOR and one glide slope receiver from one VOR/glide slope antenna.

In Stock

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N CI-507

Delivery Usually within 1-2 weeks after placing order

Product Code ANT15F

Certificate Type FAA 8130-3

Country of Manufacture United States

Product Category Antennas

Alternate P/N AV-570

Importer for Serbia Grappolo Aviation Supply Co. Ltd

Manufacturer Comant Industries

Single VOR / single glide slope diplexer allows the operation of one VOR and one glide slope receiver from one VOR/glide slope antenna. Compact design makes installation easy.

Specifications

Electrical
Frequency: 108-118 and 329-335 MHz
VSWR: 1.5:1 Maximum
Insertion Loss: 0.5 dB Maximum
Isolation: 20 dB Minimum
Impedance RF: 50 Ohms

Mechanical
Weight: 0.20 lb. Maximum
Height: 0.88 in. Maximum
Finish: Aluminum
Material: Die Cast Aluminum
Connector: BNC (Female)

Environmental: Internal Mount

Federal Specifications
FAA TSO: C34c, C36c, C40a
