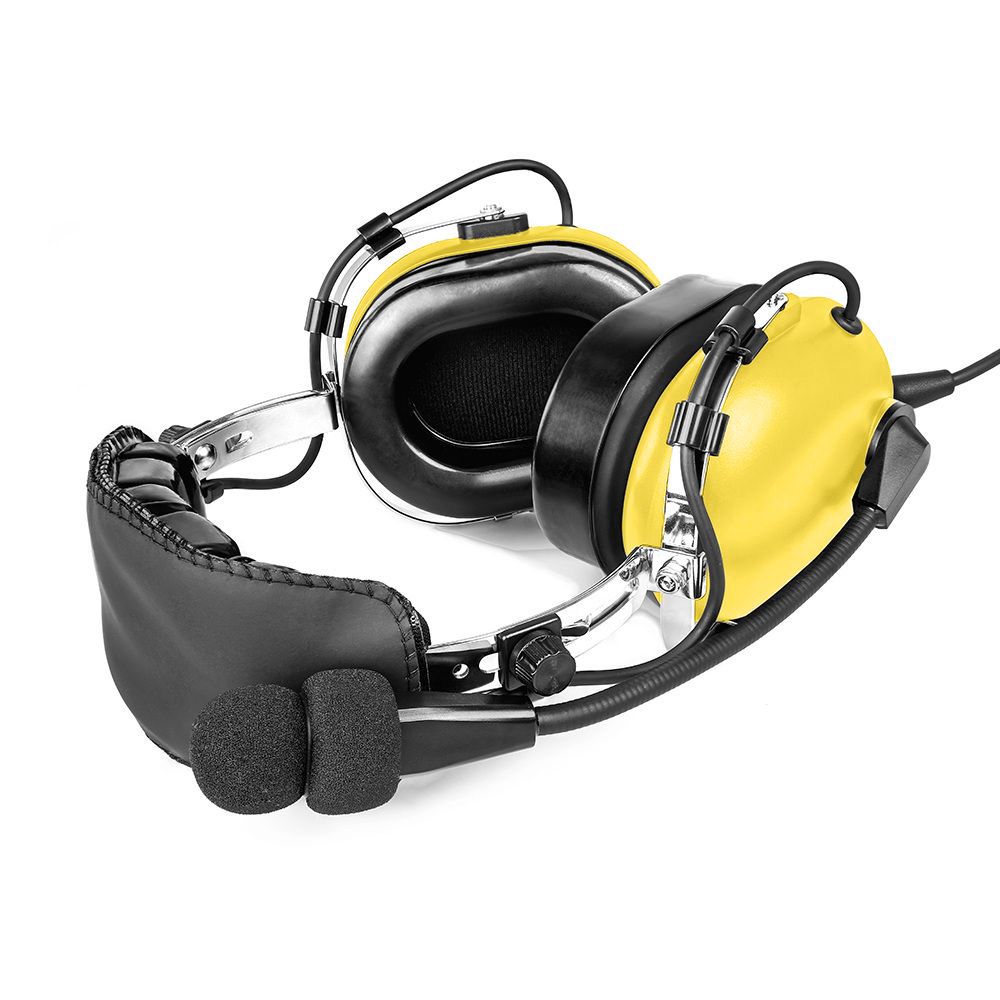

RayTalk - PH-100AK - Yellow Headset - PNR - Flex. Boom TP

RayTalk Communications Ltd.

RayTalk - PH-100AK - Yellow Headset - PNR - Flex. Boom TP

P/N: PH-100AK-GA/PNR/K/YL

Product Code: HDS86N

Certificate Type: No Certificate

162,90 $
PH-100A dual plug general noise cancelling aviation headset for pilots.
In Stock (2 pcs)

Fast Delivery

Domestic orders placed today will be delivered the next day or on the first following business day. Delivery to all EU countries via Serbia Post, DHL, FedEx, TNT or UPS.

Original Parts

We guarantee 100% authenticity of all aviation components. All products come directly from authorized manufacturers and distributors, with full documentation and certificates.

Expert Support

Our team of certified technicians is available for all your inquiries. Contact us by phone, email or live chat. Working hours: Mon-Fri, 08:00-18:00.

P/N PH-100AK-GA/PNR/K/YL
Delivery Please add to cart for availability. If no stock delivery term is usually 3-4 weeks.
Headsets type PNR - Passive Noise Reduction, General Aviation, Without Bluetooth option, Around-ear Headsets
Plug Type Twin Plugs (PJ-055 & PJ-068)
Product Code HDS86N
Product Category Headsets
Certificate Type No Certificate
Country of Manufacture China
Importer for Serbia Grappolo Aviation Supply Co. Ltd
Manufacturer RayTalk Communications Ltd.

PH-100A Aviation headset


PH-100A Aviation headset features the super soft head pad and extreamly comfortable gel ear seals, also features electret noise-cancelling microphone and 23 dB Noise Reduction Rating (NRR) for unrivaled clarity of communications, as well as a durable molded cord assembly that will easily hold up to the demands of the cockpit





270 Degree Rotatable Microphone



Microphone Specification

  • Sensitivity Range: -46± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz
  • Impedance Max: 2.2K2 1kHz (RL=2.2KΩ)
  • Frequency: 20-20KHz
  • Current Consumption Max: Vs=2.0V RL=2.2KΩ MAX: 500 µA
  • Operation Voltage Range: 2.5-10V (DC
  • Max Sound pressure Level: 110dB S.P.L

Speakers

Speaker Specification

  • Impedance: 300Ω+15%@1KHz
  • Sensitivity: 119dB+10%/1Watt O.5Meter
  • Resonance freq: (FO) 680HZ+20%
  • Frequency respond: F-5KHz
  • Rated input power: 1.0W
  • Maximum input power: 1.5W

GA Dual Plug


PJ - 055 & PJ - 068

Over-The-Head Stainless Steel Adjsutable Band

Comfortable

Half Gel and Half Foam Earpad

Control Module
